0.12-0.76mm Thickness Matte Both Sides PVC Core Sheet with 77+2 ℃ Vicat Point for Offset and Silk-screen Printing
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Normal Thickness: | 0.12-0.76mm (tolerance +/-5%) | Color: | Milk White (MOP-W-NF Model)/Snow White (MOP-W-F Model) |
|---|---|---|---|
| Size: | Sheet Size Or Roll Size | Vicat Point: | 77+2 ℃ (ISO306B50) |
| Roughness: | Both Sides Matte | Inner Core Diameter: | 3" (76mm) |
| Highlight: | 0.12-0.76mm Thickness PVC Core Sheet,Matte Both Sides PVC Core Sheet,77+2 ℃ Vicat Point Offset Printing PVC Sheet |
||
Product Description
PVC Offset Core Sheets for Plastic Card Manufacturing
High-quality PVC core sheets specifically designed for offset and silk-screen printing applications in plastic card production. These versatile sheets serve as printable substrates or non-printed middle core layers in laminated card structures.
Product Applications
Ideal for manufacturing various types of plastic cards including:
- Bank cards and credit cards
- Membership and loyalty cards
- SIM cards and identification cards
- Both laminated and un-laminated card structures
Printing & Processing Capabilities
- Compatible with offset and silk-screen printing systems
- Excellent ink adhesion with strong peeling strength after lamination
- High definition image reproduction
- No cracking occurs on printed images during high-temperature lamination
- Suitable for coating, inkjet printing, and punching operations
Technical Specifications
| Size Options | A4, A3 sheets or custom sizes (tolerance ±0.5mm) |
| Thickness Range | 0.12-0.76mm (tolerance ±5%) |
| Available Colors | Milk White (MOP-W-NF) / Snow White (MOP-W-F) |
| Surface Coating | Digital ink coating on one side, lamination glue coating on reverse |
| Packaging | 100-200 sheets per PE bag, secured on solid plywood pallets |
| Storage Conditions | Sealed, moisture-proof, below 40℃, horizontal storage avoiding heavy pressure and direct sunlight |
Performance Characteristics
| Property | Specification |
|---|---|
| Tensile Strength (Longitudinal) | ≥45 MPa |
| Tensile Strength (Transverse) | ≥40 MPa |
| Vicat Softening Point | 77±2℃ |
| Surface Tension | ≥35 dyne/cm |
| Heat Shrinkage (140℃, 10min) | Transverse ≤5%, Longitudinal ≥-10% |
| Squareness | ±1 mm |
| Thickness Tolerance | ±5% |
| Surface Roughness | Ra: 0.7-1.4μm, Rz: 4-9μm |
Product Features
- Low dust generation during processing
- Excellent and consistent quality stability
- Precise dimensional and thickness control
- Low static properties for easy sheet feeding
- Optimized surface smoothness and roughness
- Adjustable Vicat softening temperature
- Customizable opacity levels
- Secure packaging for safe transportation
- Custom formulations available per client requirements
- Surface tension exceeding 40 Dyne
- Short lead time of less than 15 days
- Comprehensive after-sales service support

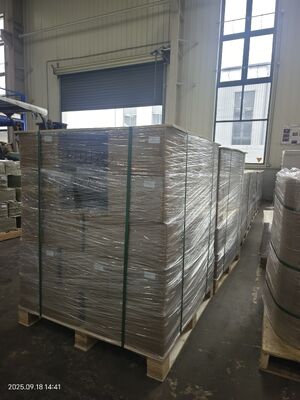

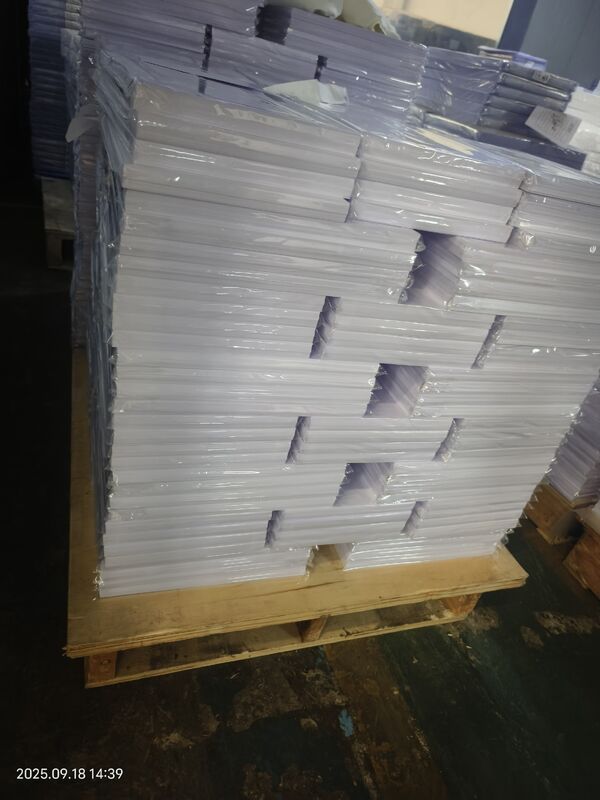

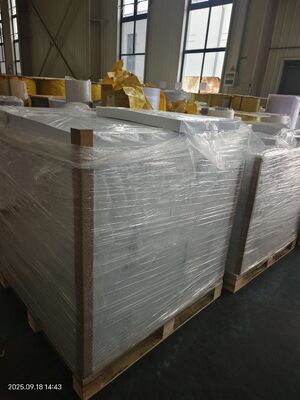

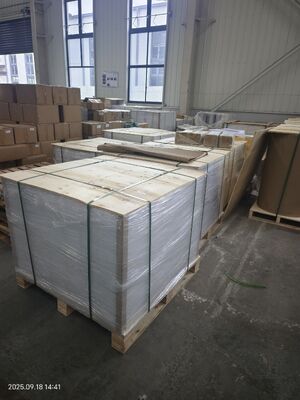

Packaging & Shipping
Sheets are carefully packaged in protective PE bags and securely palletized for safe domestic and international shipping.
