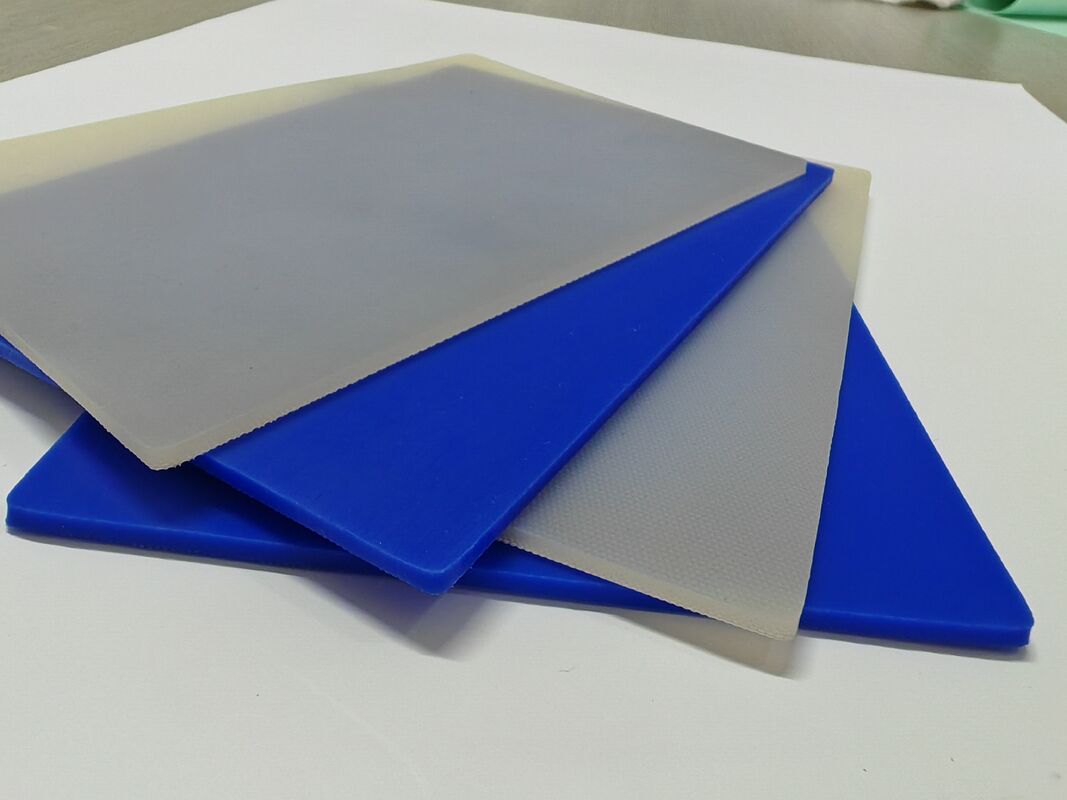

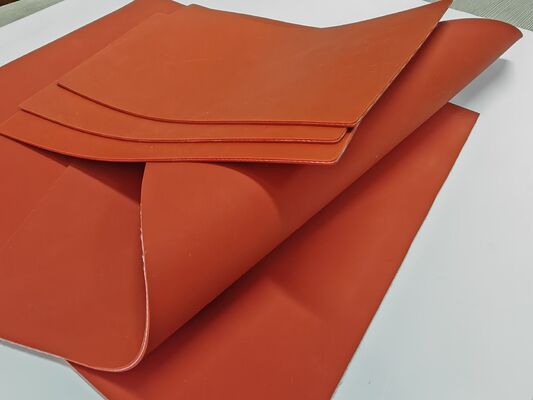

Rubber Cushion Pad High Durability Buffer Pad for Solar PV Module Hot Lamination Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MKCP-PV-G1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 Square Meters per Month |
|
Detail Information |
|||
| Seamless Wide Size: | Maximum Seamless Width Reaches 3200mm | Tensile Strength (MPa): | ≥45 |
|---|---|---|---|
| Max Resistant Temperature (℃): | 240 | Hardness: | 70±2(Shore A) |
| Service Life: | Supports Over 6000 Pressing Cycles | Customizable Specifications: | Special Sizes And Customized Parameters Are Available |
| Highlight: | Rubber cushion pad for solar PV,High durability buffer pad,Laminated pad for hot processing |
||
Product Description
Rubber Cushion Pad High Durability Buffer Pad for Solar PV Module Hot Lamination Processing
MKCP-PV-G1 Rubber Cushion Pad is a professional high-performance buffer material specially developed for solar photovoltaic module lamination machines and hot pressing equipment. It serves as a critical consumable in the PV panel manufacturing process, providing effective surface protection and uniform pressure buffering throughout the entire high-temperature vacuum lamination procedure.
PV lamination is the core process that determines the quality, tightness and service life of solar modules. During production, vacuum exhausts internal air, high temperature melts EVA adhesive, and even pressure bonds glass, battery cells and backsheets tightly while eliminating residual bubbles. Our PV rubber cushion pads ensure balanced heat and pressure distribution, prevent module deformation, scratching and bubble defects, and greatly improve the yield and consistency of finished solar panels.
Product Advantages & Customization
- Seamless Wide Size: Maximum seamless width reaches 3200mm, suitable for large-size PV module lamination
- Multiple Grade Options: Four different grades with diversified temperature resistance, EVA resistance and service life to match different production processes
- Ultra-long Service Life: Highest grade supports over 6000 pressing cycles, greatly reducing replacement costs and downtime
- Customizable Specifications: Special sizes and customized parameters available to meet personalized production requirements
Featuring high temperature resistance, excellent tear resistance, stable EVA aging resistance and ultra-long reusable life, ESCP-PV-G1 series rubber cushion pads are the ideal high-performance supporting material for standardized, high-yield and low-cost solar PV module lamination production.
Product Technical Parameters & Grades
| Item | ES1200 | ES2200 | ES3200 | ES4200 |
|---|---|---|---|---|
| Hardness (Shore A) | 70±2 | 70±2 | 65±2 | 75±2 / 60±2 |
| Tensile Strength (MPa) | ≥11.5 | ≥14.2 | ≥16.8 | ≥48 |
| Tear Strength (N/mm) | ≥45 | ≥47 | ≥39 | ≥45 |
| Max Resistant Temperature (℃) | 220 | 240 | 180 | 180 |
| EVA Resistance | Middle Level | Middle Level | Higher Level | Higher Level |
| Service Life (Times) | >2000 | >3000 | >4000 | >6000 |
| Appearance & Color | Black, glossy/matte / double-sided glossy | Black / Grey, double-sided glossy | Black, glossy/matte / double-sided glossy | Black, glossy/matte / double-sided glossy |
