Offset Printing PVC Core Sheet 120-760 Micron Thickness For Silk Screen Printer

Offset Printing PVC Core Sheet 120-760 Micron Thickness For Silk Screen Printer

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MOP-W

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: USD 0.05-0.3 per sheet
Packaging Details: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 million square meters or 5 million tons per month
Get Best Price Contact Now

Detail Information

Thickness Range: 120-760 Micron Color: Milk White (MOP-W-NF Model)/Snow White(MOP-W-F Model)
Suitable Printer Models: The Whole Series Of Offset Printer And Silk-screen Printers Package Method:: 100-200 Sheets Per PE Bag, All The Bags Are Firmly Piled Up And Fixed On The Solid Plywood Pallets.
High Light:

clear pvc sheet

,

pvc foam sheet

Product Description

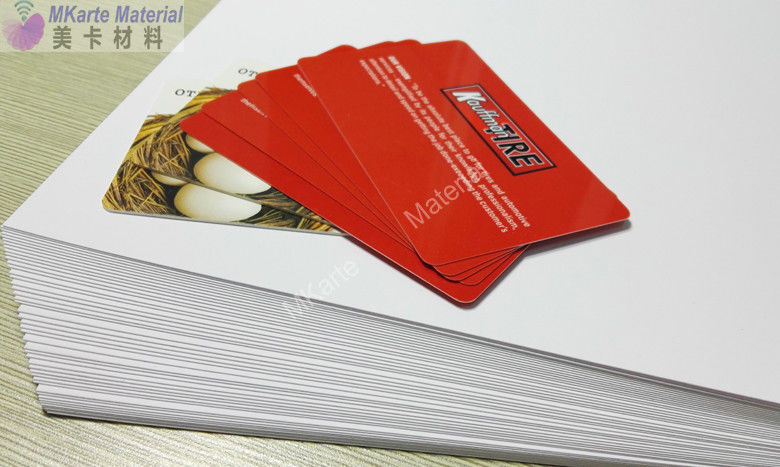

PVC Core Sheet/ offset /inlay sheet MOP-W used in Silk-screen printer​

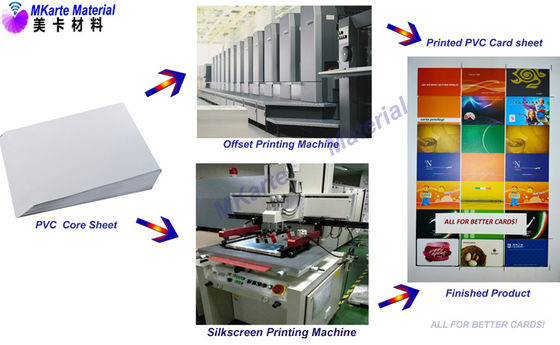

Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.



Technical parameters:

Item Index
Tensile strength Longitudinal MPa ≥45
Transverse MPa ≥40
Vicat ℃ 77±2
Surface Tension dyne/cm ≥35
Heat shrinkage rate% 140℃ 10min Transverse ≤5
Longitudinal ≥-10
Squareness mm ±1
Thickness tolerance % ±5
Roughness μm Ra,μm 0.7~1.4
Rz,μm 4~9

Offset Printing PVC Core Sheet 120-760 Micron Thickness For Silk Screen Printer 0Offset Printing PVC Core Sheet 120-760 Micron Thickness For Silk Screen Printer 1
Featuers:


1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.

4) No crack occurs on the printed images after lamination at high temperature.

Thickness 0.12-0.76mm
Color Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
Suitable printer models The whole series of offset printer and silk-screen printers
Storage condition Sealed, moisture-proof, room temperature under 40℃

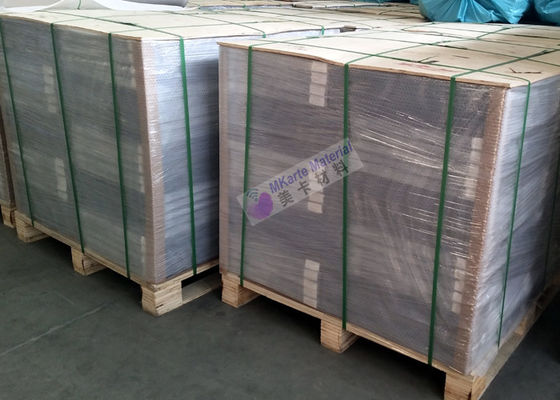

Package method 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
