Smart Card Production PVC Core Sheet Both Sides With No Glue Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 million tons per month |
|
Detail Information |
|||
| Vicat ℃: | 77±2 | Thickness Tolerance: | ± 5 % |
|---|---|---|---|
| Tensile Strength Transverse: | ≥ 40 MPa | Heat Shrinkage Rate% 140℃ 10min: | Transverse ≤5 |
| Tensile Strength Longitudinal: | ≥ 45 MPa | Size: | In Sheet , A4 , A3 Or Custom Made |
| High Light: | pvc foam core board,clear pvc sheet |
||
Product Description
PVC Core Sheet - No Glue Coating On Both Sides for Smart Card Production
Product Technical Specification
Product Features:
1. Thickness: 0.12-0.76mm
2. Color: Milk White (MOP-W-NF model)/Snow White ( MOP-W-F model )
3. Suitable printer models: The whole series of offset printer and silk-screen printers
4. Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
5. Storage condition: Sealed , moisture-proof , room temperature under 40℃
Technical parameters:
| Item | Index | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne / cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
Application
Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.
4) No crack occurs on the printed images after lamination at high temperature.

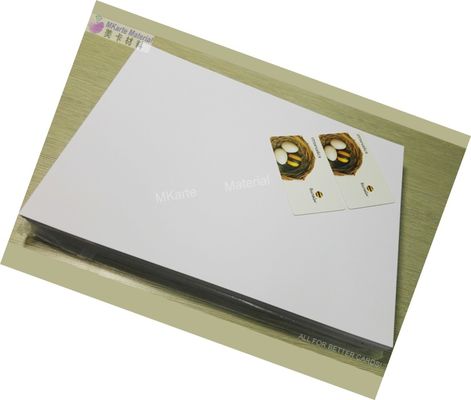

Packing of PVC Core Sheet
