Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCS-SIM

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets or 2 tons
Price: Negotiable
Packaging Details: 100 or 200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10-15 million square meters per month
Get Best Price Contact Now

Detail Information

Thickness: 0.10 - 0.50 Mm Density: 1.38±0.05
Tensile Strength Horizontal: ≥ 45 MPa Tensile Strength Vertical: ≥ 48 MPa
Vicat: 70±2 C. Degrees Surface Dyne: ≥ 34 Dynes / Cm
High Light:

clear pvc sheet

,

pvc foam sheet

Product Description

PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY​





Product Technical Specification



1. Introduction of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY​





PVC core sheet or base sheet for Contactless IC cards or Prelam or INLAY sheet ( PVC sheet for RFID card Prelam or INLAY sheet production )

is specially designed for INLAY sheet production of Contactless or RFID Card. It is featuring lower vicat softening point, which can provide good protection on chips inside during the process of laminator grading lamination process. It is known as the high-end reliable PVC sheet for various contactless or RFID cards.





2.Specification of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY​





Item Unit Value
Density g/cm3 1.38±0.05
Tensile Strength Horizontal MPa ≥45
Vertical ≥48
Vicat 5kg 70±2
Surface Roughness Ra μm 0.7~1.8
Rz 4.0~12.0



*Customized design is availalbe.

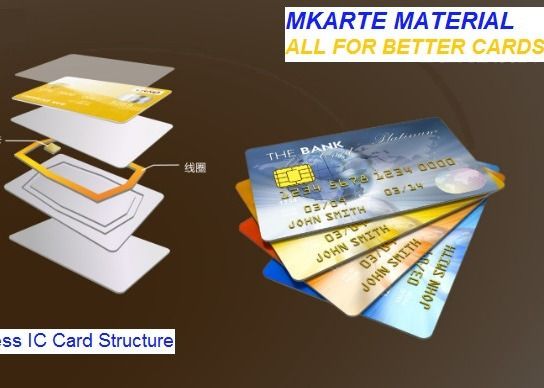

3. Applications of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY​



 The PVC Sheets are widely used for prelam or INLAY sheet which will be used for contactless card production.

High End Reliable PVC Core Sheet For Contactless IC Cards Prelam / INLAY 0

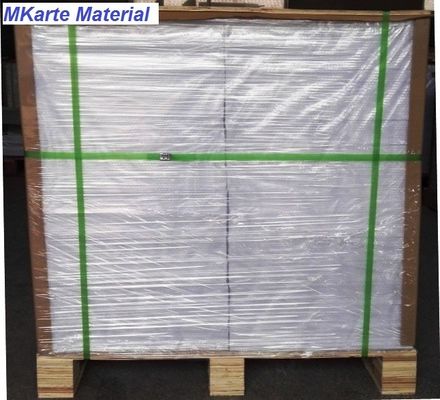

4. Packging and storage of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY​



High End Reliable PVC Core Sheet For Contactless IC Cards Prelam / INLAY 1
