Offset Transparent Rigid PETG Plastic Sheet For Vacuum Forming

Offset Transparent Rigid PETG Plastic Sheet For Vacuum Forming

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCS-PETG

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: In standard export carton , 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 million square meters or 2 million tons per month
Get Best Price Contact Now

Detail Information

Color: Transparent Or Clear Thickness In Mm: 0.1 - 0.76
Character: Environmental Friendly Aging: >200 Hours
Sample Sending: A4 Or A3 Or Customized Size Rigid PETG Sheet With PP Bag In Box Pallets Packing: 500- 2000kg Per Plywood Pallet
Application: Used For The Production Of High-end Credit Cards, ID Cards And Passport, Etc. Shape: By Sheet Or By Roll
High Light:

petg clear plastic sheet

,

clear petg sheet

Product Description

Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production



Production Specification

1.Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production Introduction

Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production is widely used in card base production. It has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards and passport, etc.

PETG is a kind of transparent amorphous co polyester.

The performance of Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advaes, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.

Production process of PETG cards in general :

1. Print directly to the surface of sheets

2. Hot press laminate with PETG coated overlay films when the ink dries.

3. Punch out cards from the fused materials.

4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.

5. Finished cards.

2. Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production Specification

Product details :

Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production which is for PETG card making ,this material has under mentioned advaes :

1. Excellent impact strength and toughness
2. Easy to print, have excellent chemical resistance
3. High gloss, high transparency
4. Environmental protection: no harmful substances

5. PETG plastic card by sheets or by rolls are simple to be cutting

6. Longer service life
7. Economy: to shorten the processing time (excellent thermal forming performance)

Technical Parameters:

Item Parameters
Vicat softening point (B50)    78±2
Vicat softening point (A120)   80±2
Heating Shrinkage ratio 105 ℃/10min    ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Surface Dyne (dynes/cm) ≥38
Normal thickness in mm  0.10 - 0.76mm
Density (g/cm3) 1.30 ±0.05
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) >200 hours
Suitable ink Offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink

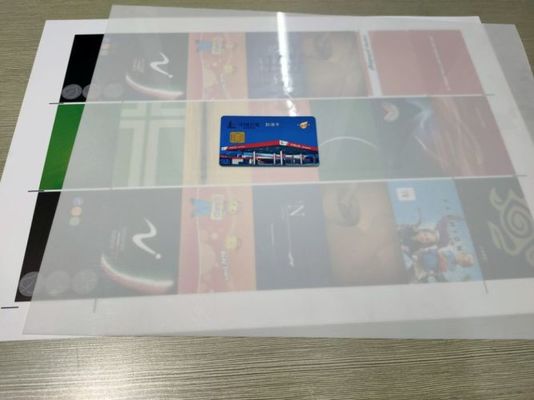

Offset Transparent Rigid PETG Plastic Sheet For Vacuum Forming 0

PETG Plastic Sheet By Offset Or Silk Screen Printing is a more environmentally friendly card material, consider PETG, which is derived from polyester and is 100% recyclable. Widely used by credit card makers, PETG is biodegradable and doesn't emit harmful gas. PETG exhibits the same characteristics as PVC, such as durability and a wide array of print and finish options.
Features:

1. High chemical stability, fine anti-fire , super-transparent .
2. Highly UV .stabilized, good mechanical properties, high hardness and strength.
3. Well aging resistance, good self-extinguishing property and reliable insularity.
4. It is waterproof and with very good smooth surface, and also it is non deformable.

5. Non-toxic, environment-friendly material

6. Vivid color and high resolution photo quality.
7. Longer service life

8. The important feature: anti-stastic , anti-UV, anti-sticky

9. Application: plastic card production , chemical industry, oil industry, galvanization, water purification equipments, environment protection      equipments, medical appliance and so on.
Parameters :

1. Size: A4 , A3 or as per customer requirements

2. Thickness: 0.10mm to 0.76mm

3. Color : Transparent or Clear

4. Sample : A4 , A3 size or as customer requirements rigid PETG sheet with PP bag in box
5. Sheet packing: 30kg per bag or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
6. Pallets packing: 500- 2000kg per plywood pallet
7. Container loading: 20 tons as normal

8. Storage condition : Sealed, moisture-proof, room temperature under 40℃

Product name Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production
Color Transparent or Clear
Thickness range  0.10 mm -0.76 mm
Vicat softening point (B50) 78±2
Vicat softening point (A120) 80±2
Density 1.3±0.05 (g/cm3)
Heat shrink  ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Surface tension ≥38  dynes/cm
Glue coating With no coating on both sides
Storage  Sealed, moisture-proof, room temperature under 40℃



3. Application of Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production

It is widely used for the production of high-end credit cards, ID cards and passport, etc.
PETG is a kind of transparent amorphous co polyester

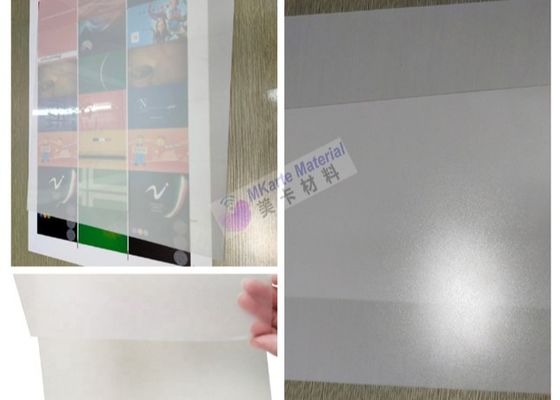

Offset Transparent Rigid PETG Plastic Sheet For Vacuum Forming 1



4. Packing of Transparent PETG Plastic Sheet By Offset and Silk Screen Printable For PETG Card Production

In standard export carton and are packed on plywood pallet

Inner package: PE film or pp bag

Outer package: pallet/container

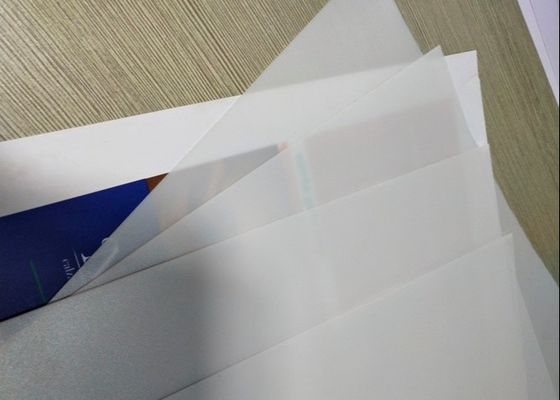

Offset Transparent Rigid PETG Plastic Sheet For Vacuum Forming 2
