White PETG Plastic Sheet Environmental Protection Material For ID Card Produciton

White PETG Plastic Sheet Environmental Protection Material For ID Card Produciton

Product Details:

Place of Origin: China
Brand Name: MKarte
Model Number: MCS-PETG

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability: 50000 Sheets per Week
Get Best Price Contact Now

Detail Information

Material: PETG,Polyethylene Terephthalate Color: White Or Customized
Vicat: 78-80 ± 2 Density ( G/cm3): 1.30 ±0.05
Thickness Range: 0.10-0.76 Laminating Temp: 120 Degrees Celcius
High Light:

petg clear plastic sheet

,

clear petg sheet

Product Description

White PETG core sheet / PETG Card Base environmental protection material for ID card produciton



1.White PETG core sheet / PETG Card Base environmental protection material - Introduction

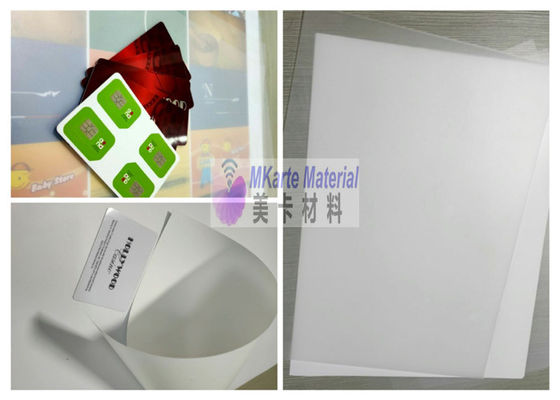

White PETG Plastic Sheet Environmental Protection Material For ID Card Produciton 0

White PETG core sheet / PETG Card Base is widely used in card base production. It has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards and passport, etc.


PETG is a kind of transparent amorphous copolyester.


Features:
1).Excellent strength and wear-resisting
2).High temperature and low temperate resistance;
3).Perfect application for laser Engraving
4).Environment-friendly material
5).Longer service life

ItemPETG Core Sheet
ColorWhite
Thickness Range(mm)0.1-0.76
Vicat point ℃78-80 ± 2
Tensile strength≥50 Mpa
SurfaceBoth sides matt
Density1.3 ± 0.05
Transparency≤5
Heat shrink≥-8.0 % (longitudinal) &≥-4.0 %(transverse)



2.White PETG core sheet / PETG Card Base - Parameters

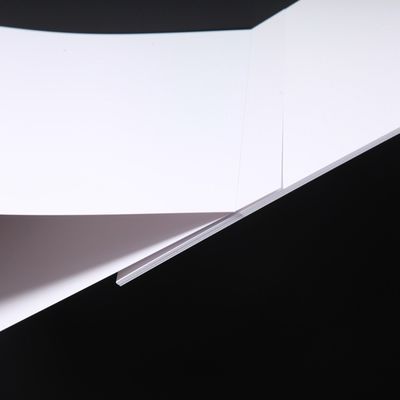

White PETG Plastic Sheet Environmental Protection Material For ID Card Produciton 1
It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.
Technical Parameters:

ItemParameters
Vicat softening point (B50)   78±2
Vicat softening point (A120)  80±2
Heating Shrinkage ratio 105 ℃/10min   ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Surface Dyne (dynes/cm)≥38
Normal thickness in mm0.10-0.76
Density (g/cm3)1.30 ±0.05
Peel Strength (90°, 300mm/min)≥6.0 N/cm
Aging time (65℃ temp./95% humidity )>200 hours
 Suitable inkoffset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink



3.White PETG core sheet / PETG Card Base- Application

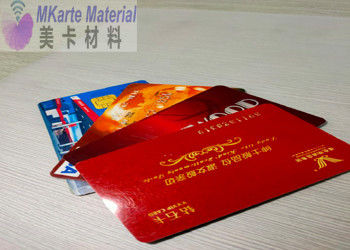

White PETG Plastic Sheet Environmental Protection Material For ID Card Produciton 2
White PETG Plastic Sheet Environmental Protection Material For ID Card Produciton 3

The performance of PETG is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advaes, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.

Card-making method:

1). Print the patterns directly to the material

2). Laminate with overlay

3). Punching

4). Other art-work

Product modelProduct nameThickness Range mmColorVicat dynes/cmApparent density g/cm3Peel strength N/cmMain application
PETGPETG core0.1-0.76

White


78-80≥381.3+/-0.05/It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.



Detailed Product Description

1.Thickness:0.1mm to 0.76mm
2.Color: White or customized
3.Surface tension: ≥38 dynes/cm
Characteristic

1.Good lamination properties

2.Good impact resistance

3.Good chemical resistance

4.Excellent printability with either offset or screen printing

5.Laminating Temp 120 degrees Celcius-130 degrees Celcius (lab conditions)

4.White PETG core sheet / PETG Card Base - Packing

White PETG Plastic Sheet Environmental Protection Material For ID Card Produciton 4
