0.04-0.10mm Transparent Polycarbonate Panels , Custom Size PC Uncoated Overlay

0.04-0.10mm Transparent Polycarbonate Panels , Custom Size PC Uncoated Overlay

Product Details:

Place of Origin: China
Brand Name: MKarte
Model Number: MUO-PC-LE

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets
Price: negotiated
Packaging Details: in reel or 500 sheets per bag/4 bags per paper carton, or as per customer requirements
Delivery Time: 10-15 working days
Payment Terms: D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability: 50000 Sheet/Sheets per Week
Get Best Price Contact Now

Detail Information

Size: In Sheet Or Reel, Size As Per Customer Requirements Thickness: 0.04-0.10mm
Color: Transparent Without Coating On Surface. Laser Engraving Performance: Can Be Laser Engraved.
Vicat: 150±3℃ Surface Dyne: ≥34 Dynes/cm
High Light:

polycarbonate transparent sheet

,

custom polycarbonate sheets

Product Description

Polycarbonate PC Uncoated Overlay Specially Designed for Laser Engraving Feature on Card Surface



1.Polycarbonate PC Uncoated Overlay for Laser Engraving - Introduction

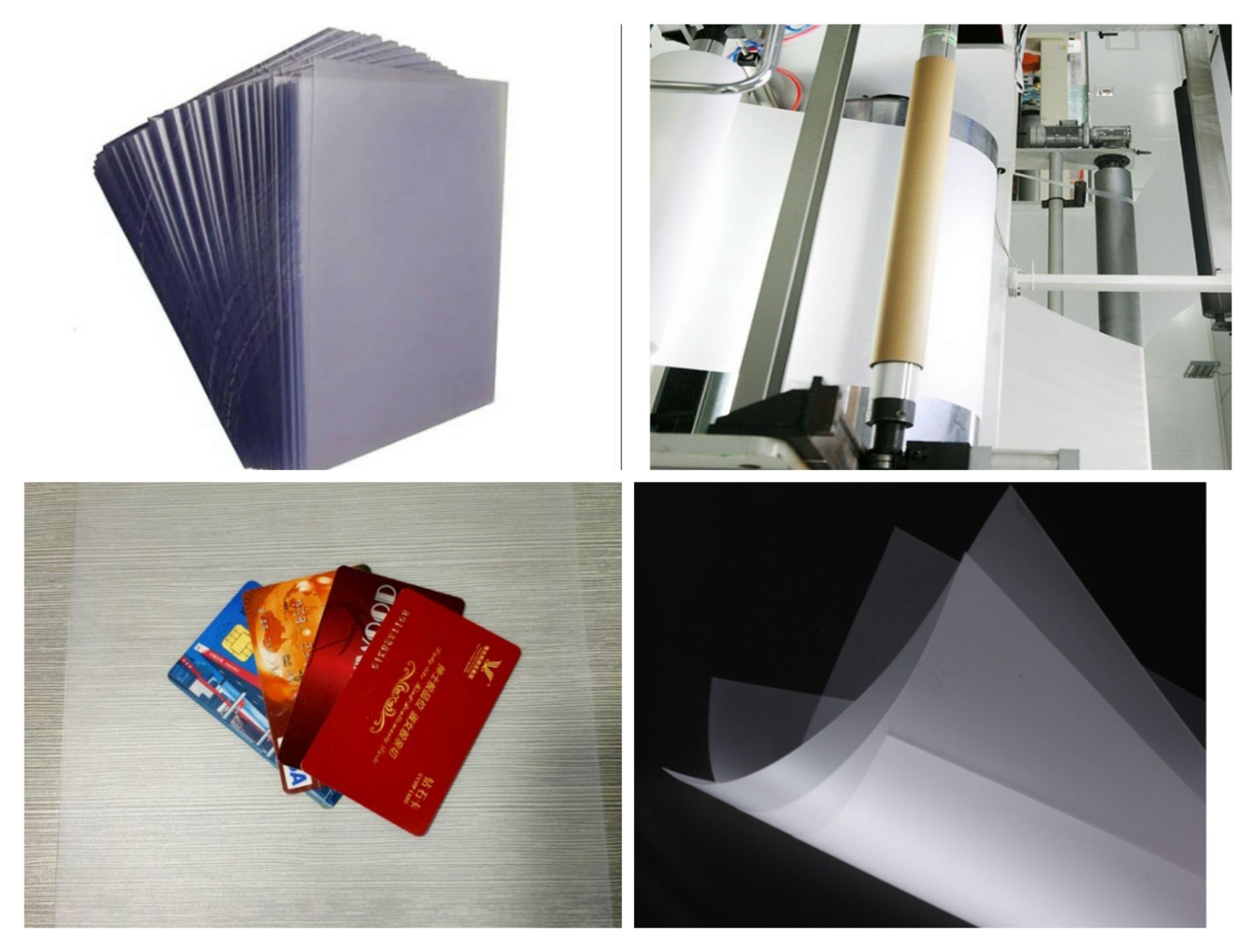

0.04-0.10mm Transparent Polycarbonate Panels , Custom Size PC Uncoated Overlay 0

Brief Introduction:



Polycarbonate PC Uncoated Overlay is specially designed for laser engraving feature on card surface. After lamination, it can leave clear and neat laser marks on card surface. Comparing with other types of plastic films for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability.



Characteristics:

 ● Work well at high temperature,no color change with fluorescent ink.

 ● Abrasion resistant , prolong the life of cards.

 ● Environment friendly, no solvent or gas discharged.

Technical parameters
Item Standard Value

Thickness

(mm)

0.04-0.1 ( ±5%)
Surface Matt/Matt, flat, no defect, no dust.
Tensile Strength (Mpa) -ISO527-3 ≧50(MD/CD)
Break Strength (%) -ISO527-3 ≧60(MD/CD)

Folding Capacity



Thickness <0.25mm, ≧13
Thickness ≧0.25mm,≧11
Light Transmittance (%) ≧80
Haze (%) ≦ 90
Surface Tension(Dynes/cm) -ISO 8296-2003 ≧34

Heating Shrinkage (%)

(135℃±2,10min)

Thickness≤ 0.175mm MD ≦2.5
CD ≦0.5
Vicat Softening Temperature(℃) - ISO 306-1994 150±3
Coating availability No coatings on both sides

  2.Polycarbonate PC Uncoated Overlay for Laser Engraving - Parameters

1). Size: in sheet or reel, A4, A3 or as per customer requirements
2). Normal thickness in mm: 0.04,0.05,0.06,0.08,0.10

3). Color: transparent without coating on surface.

4). Package method: in reel or 500 sheets per bag/4 bags per paper carton, or as per customer requirements.

5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

6). Laser engraving performance: can be laser engraved.




Item Specification Test Method
Thickness 40-100um
Thickness tolerance

>0.5±6um

≤0.5±4um


Density 1.2±0.05 g/cm3 ASTM D792
Surface tension(front) ≥34Dynes/cm ASTM D1922
Surface tension(back) ≥34Dynes/cm ASTM D1922

Heating Shrinkage (%)

(135℃±2,10min)

Thickness≤ 0.175mm MD ≦2.5
  CD ≦0.5
Vicat 150±20C ASTM D1525
Tensile strength ≥50 N/mm2 ISO527-3
Surface roughness 0.5um-1.8um

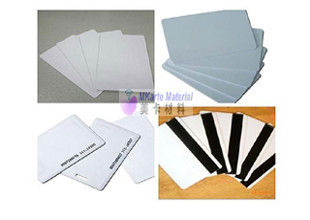

0.04-0.10mm Transparent Polycarbonate Panels , Custom Size PC Uncoated Overlay 1

3.Polycarbonate PC Uncoated Overlay for Laser Engraving - Application

Polycarbonate film could be lasering and customization, excels in outstanding optical clarity, printability,

impact strength, and dimensional stability when compared with other types of plastic films.

Application :

such as identity card,driving card, passport etc.

Item Parameters
Vicat (℃) 150±2
Shrinkage MD/TD <1.0
Tensile Strength (MPa) MD ≥50
TD ≥50
Roughness(μm) Ra 0.58, 1.5-2.1
Ra 3.45
Thickness(mm) 0.04-0.1

Laminating Condition:

Laminating Unit Temp(℃) Pressure(MPa) Time (min)
Heat Laminating 140~155 ≥6 25
Cool Laminating ≤25 ≥6 15

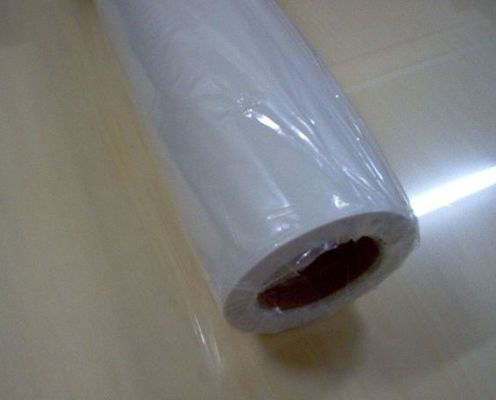

0.04-0.10mm Transparent Polycarbonate Panels , Custom Size PC Uncoated Overlay 2







4.Polycarbonate PC Uncoated Overlay for Laser Engraving - Packing

◆Packing:

Outer:Carton Inner:PE bag

◆Storage:

Keep package sealed and moisture-proof, room temperature under 40℃

Keep horizontally, avoid oppress heavily and direct sun light.

Stacking height should not exceed one meter.

Shelf life: Two year.

Storage conditions:

Ideal storage conditions under 40℃, Ideal RH 40%. Should not be stored in direct sunlight and avoid major thermal fluctuation, store in original packing. Film should be conditioned a minimum of 24 hours at ambient room temperature.

Recommended use of material within one year of production date.
