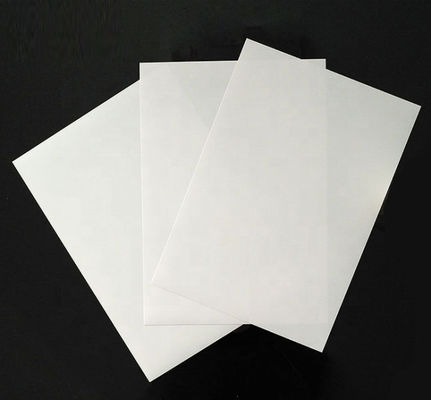

Anti Erfeiting ID Card Slight Matte 50mpa A3 PC Plastic Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MKarte |
| Model Number: | MCS-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, D/A, Western Union, MoneyGram |
| Supply Ability: | 50000 Sheets per Week |
|
Detail Information |
|||
| Normal Sheet Size: | A4,A3 Or Other | Polpular Color: | White ，Black Or Transparent |
|---|---|---|---|
| Vicat ℃: | A50=145±2 | Surface Roughness: | ＜1.5 |
| Surface: | Slight Matte On Two Sides Of The Sheet | Application: | Widely Used For Making License Card. ID Card, Driving License, Electronic Passport, Transit Card, Residence Permit, Military Card And Police Card, Smart Card |
| Highlight: | PC Plastic Sheet A4,PC Core Sheet A4,Slight matte PC Core Sheet |
||
Product Description
50mpa PC Core Sheet Impact Resistance Polycarbonate Plastic Sheet Apply to ID Card , Driving License
1.Introduction of 50mpa PC Core Sheet Impact Resistance Polycarbonate Plastic Sheet Apply to ID Card , Driving License
Polycarbonate PC Card Core Sheet (Model MCS-PC) is specially designed for high end PC card body production.
Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
PC sheet is known as the new reliable material for PC card body production. It has such features as high vicat point and can be used for laser engraving. The PC sheet is perfect for making ID card, E-Passport etc.
Card-making method
1). Print the patterns directly to the material
2). Laminate with overlay
3). Punching
4). Other art-work
2.Specification of 50mpa PC Core Sheet Impact Resistance Polycarbonate Plastic Sheet Apply to ID Card , Driving License
It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.
Features:
1).Excellent strength and wear-resisting
2).High temperature and low temperate resistance;
3).Perfect application for laser Engraving
4).Environment-friendly material
5).Longer service life
| Item | PC Core Sheet |
| Color | White, Transparent or Black |
| Thickness Range(mm) | 0.10-0.80 |
| Vicat point ℃ | 145±2 |
| Tensile strength | ≥50 Mpa |
| Surface | Both sides matt |
| Density | 1.3 |
| Transparency | ≤5 |
| Heat shrink | ≤0.5 |
| Surface roughness | ＜1.5 |
| Surface tension dynes/cm | ≥38 |
PC Card Core with excellent strength and wear resistance, high temperature resistance, perfect image of laser etching technology support.Apply to identity cards with anti-fake requirements, driving license, passport etc.
| Item | Unit | Value | |
| Density | g/cm3 | 1.30 ±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥50 |
| Vertical | ≥50 | ||
| Vicat | ℃ | 145±2 | |
| Surface Dyne | dynes/cm | ≥38 | |
3.Application of 50mpa PC Core Sheet Impact Resistance Polycarbonate Plastic Sheet Apply to ID Card , Driving License
| Product model | Product name | Thickness Range mm | Color | Vicat ℃ | dynes/cm | Apparent density g/cm3 | Peel strength N/cm | Main application |
| PC | PC core | 0.1-0.8 |
White Black Transparent |
A50=145±2 | ≥38 | 1.3 | / | It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection. |
4.Packing abd storage of 50mpa PC Core Sheet Impact Resistance Polycarbonate Plastic Sheet Apply to ID Card , Driving License
Packing:
Outer:Carton Inner:PE bag
Storage:
Keep package sealed and moisture-proof, room temperature under 40℃
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: Two year.
Storage conditions:
Ideal storage conditions between 10-30 0C, Ideal RH 40%. Should not be stored in direct sunlight and avoid major thermal fluctuation, store in original packing. Film should be conditioned a minimum of 24 hours at ambient room temperature.
Recommended use of material within one year of production date.
