High Reflective Safe PETG Plastic Sheet Environmental Friendly Material

High Reflective Safe PETG Plastic Sheet Environmental Friendly Material

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MUO-PETG

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: By reel or 500 sheets per bag, 4 bags per paper carton and with standard export carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 million square meters or 3 million tons per month
Get Best Price Contact Now

Detail Information

Color: Clear Or Transparent With One-side Glue Coating Peel Strength: ≥6.0N/cm
Surface: With Glue Coating On One Side Character: With No Harm To The Environment
Density: 1.20 ±0.05 G/cm³ Package Method: By Reel Or 500 Sheets Per Bag, 4-8 Bags Per Paper Carton, Or As Per Customized
Packing: PE Film Inside + Carton Box +Pallet Suitable Ink: Offset And Silk Screen Printing UV Ink
High Light:

offset printing petg plastic sheet

,

silk screen printing petg plastic sheet

,

UV ink petg plastic sheet

Product Description

Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet For PETG Card Production



Production Specification

1. Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet Introduction

Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet is a new developed environment friendly product which could get excellent peel strength at low laminating temperature. It provides superior aging resistance performance to other similar products and no deformation and color change after lamination. It could be used for laminating pure PETG card (both overlay and sheet are PETG).

Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet (Model: MCO-PETG) has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards, special packaging and printing industry.

PETG is a kind of transparent amorphous co polyester.

The performance of Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advaes, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.

PETG Plastic cards process in general :

1. Print directly to the surface of sheets

2. Hot press laminate with PETG coated overlay films when the ink dries.

3. Punch out cards from the fused materials.

4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.

5. Finished cards.

2. Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet Specification

Product details :

Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet which is for PETG card making ,this material has under mentioned advaes :

1. Excellent strength and wear-resisting.
2. High temperature and low temperate resistance.
3. Perfect application for anti-fake IC cards, driving license card, transportation card and passport etc.
4. Environment-friendly material.
5. Longer service life.
Parameters :

1. Size: in reel  or in sheet as 210*297mm ( A4 ) , 310*480mm ( A3 ) or as per customer requirements

2. Normal thickness in mm: 0.04,0.05,0.06,0.08,0.10

3. Color : Transparent with one- side glue coating on surface.

4. Package method : in reel ,or 500 sheets per bag, 4 -8 bags per carton or customized,  and the cartons are piled up and firmly fixed on solid plywood pallets

5. Storage condition : Sealed, moisture-proof, room temperature under 40℃ , Keep It horizontally, avoid heavy pressing and direct sunlight .

Product name Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet For PETG Card Production
Color Transparent or clear
Thickness Range 0.04- 0.1 mm
Vicat softening point (B50) ℃  74±2
Vicat softening point (A120) ℃ 78±2
Tear strength >65
Density 1.20 ±0.05 g/cm³
Heating shrinkage ratio 105 /10min  ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Surface Dyne (dynes/cm) ≥38
Glue coated With one-side glue coating
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) 200 hours
Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink
Packing  PE Film inside + Carton box +Pallet
Advae

Excellent strength and abrasion resistance, high and low temperature resistance;

suitable for card body performance and anti-counterfeiting technology requirements, such as id card, driving license, e-passport, etc

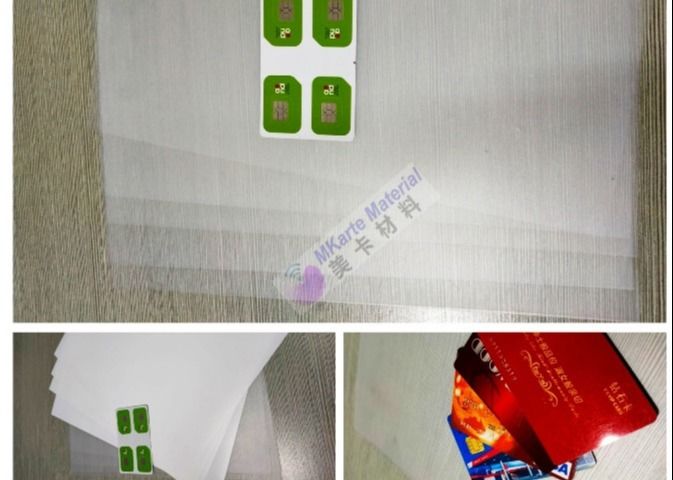

High Reflective Safe PETG Plastic Sheet Environmental Friendly Material 0

Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet Laminating Condition:



 Suggested Laminating Condition

Laminating Unit

Heat Laminating

Cool Laminating

Temp

110~130°C

≤25°C

Time

25min

15 min

Pressure

≥5Mpa

≥5Mpa


PETG Overlay Coatings
All inks require an adhesive layer between ink and overlay to provide a superior bond, so we offer a complete range of suitable coatings for all our overlay films to enhance bond strength. These adhesives can be used with UV (offset or silk screen) and oxidative inks. They meet or exceed ISO Peel strength standards and are available in rolls or sheets. And we have designed specific coatings to prevent distortion during lamination; And also it offer a wider processing window.

Overlay films
Overlay films ensure high clarity and superior graphic visibility for your graphics. Our overlay films deliver exceptional performance: gauge control, color consistency (before and after lamination), and bond strength that exceeds ISO standards.
Coated films
Adhesion to UV, oxidative, digital or silk screen inks
Various adhesive coatings available
Themoprintable and laser engravable films
various vicat (temperature resistant) films

Storage conditions
For all range of thicknesses available in rolls and sheets.
Besides PVC, we also supply PETG and PC overlay and coated overlay.
Ideal storage conditions between 10-30 degree.
Ideal RH 40-70%
It should not be stored in direct sunlight and avoid major thermal
Fluctuation
Stored in original packaging

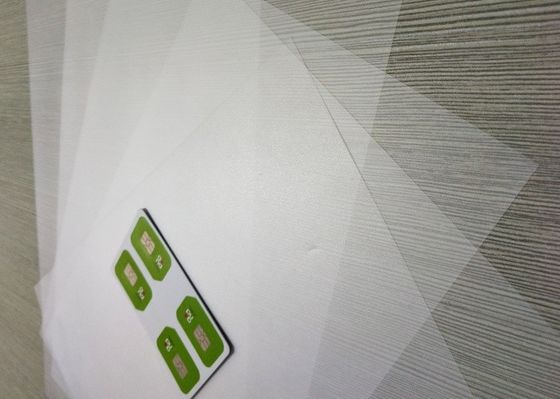

High Reflective Safe PETG Plastic Sheet Environmental Friendly Material 1

3. Application of Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet

It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.

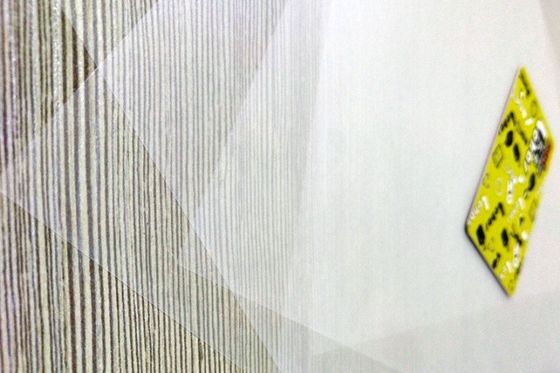

High Reflective Safe PETG Plastic Sheet Environmental Friendly Material 2

4. Packing of Environmental Friendly Material - PETG Coated Film PETG Plastic Sheet

In standard export carton and are packed on plywood pallet

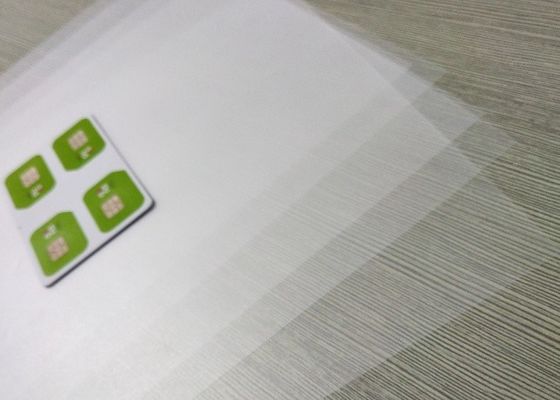

High Reflective Safe PETG Plastic Sheet Environmental Friendly Material 3
