High Adhesion PETG Plastic Sheet Perfect Application For Anti Fake IC Cards

High Adhesion PETG Plastic Sheet Perfect Application For Anti Fake IC Cards

Product Details:

Place of Origin: China
Brand Name: MK
Certification: ISO9001
Model Number: MCO-PETG

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: USD 0.5-3 USD/sheet
Packaging Details: By roll or 500 sheets per bag, 4 or 8 bags per paper cartons which are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 million square meters or 3 million tons per month
Get Best Price Contact Now

Detail Information

Color: Transparent Vicat Softening Point (B50): 74±2
Vicat Softening Point (A120): 78±2 Package Method: In Reel Or In Sheet : 500 Sheets Per Bag, 4-8 Bags Per Paper Carton
Packing: PE Bag + Carton Box +Pallet Suitable Ink: Offset Printing And Silk Screen Printing UV Ink
High Light:

High Adhesion PETG Plastic Sheet

,

PETG Plastic Sheet High Adhesion

,

IC Cards PETG Plastic Sheet

Product Description

High-adhesion PETG Coated Overlay or Film for PETG Plastic Card Body Production





1. General Introduction for High-adhesion PETG Coated Overlay or Film for PETG Plastic Card Body Production

It is a new developed environment friendly product which could get excellent peel strength at low laminating temperature. It provides superior aging resistance performance to other similar products and no deformation and color change after lamination. It could be used for laminating pure PETG card (both overlay and sheet are PETG).

It has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards, special packaging and printing industry.

PETG is a kind of transparent amorphous co polyester.

PETG material is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advaes, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.



2.  Specification for High-adhesion PETG Coated Overlay or Film for PETG Plastic Card Body Production



1. Excellent strength and wear-resisting.
2. High temperature and low temperate resistance.
3. Perfect application for anti-fake IC cards, driving license card, transportation card and passport etc.
4. Environment-friendly material.
5. Longer service life.
Parameters :

1. Size: in reel  or in sheet as 210*297mm ( A4 ) , 310*480mm ( A3 ) or as per customer requirements

2. Normal thickness in mm: 0.04,0.05,0.06,0.08,0.10

3. Color : Transparent with one- side glue coating on surface.

4. Package method : in reel ,or 500 sheets per bag, 4 -8 bags per carton or customized,  and the cartons are piled up and firmly fixed on solid plywood pallets

5. Storage condition : Sealed, moisture-proof, room temperature under 40℃ , Keep It horizontally, avoid heavy pressing and direct sunlight .

Product name Transparent PETG Coated Film For PETG Plastic Card Body Production
Color Transparent or clear
Thickness Range 0.04- 0.1 mm
Vicat softening point (B50) ℃  74±2
Vicat softening point (A120) ℃ 78±2
Tear strength >65
Density 1.20 ±0.05 g/cm³
Heating shrinkage ratio 105 /10min  ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Surface Dyne (dynes/cm) ≥38
Glue coated With one-side glue coating
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) 200 hours
Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink
Packing  PE Film inside + Carton box +Pallet
Advae

Excellent strength and abrasion resistance, high and low temperature resistance;

suitable for card body performance and anti-counterfeiting technology requirements, such as id card, driving license, e-passport, etc



Recommended Production Laminating parameters:



Laminating parameters

Laminating Unit

Heat Laminating

Cool Laminating

Temp

110~130°C

≤25°C

Time

25min

15 min

Pressure

≥5Mpa

≥5Mpa

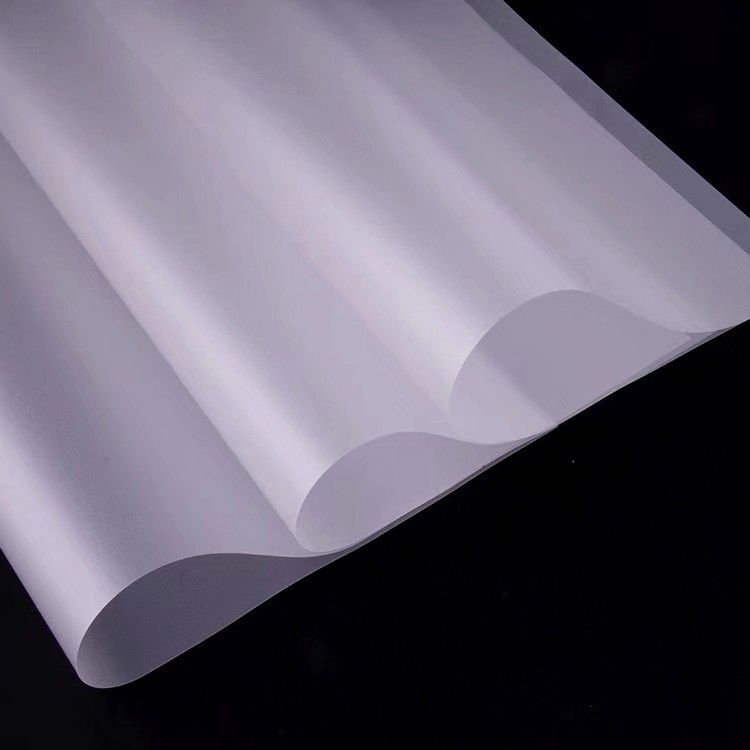

High Adhesion PETG Plastic Sheet Perfect Application For Anti Fake IC Cards 0




3. Application for High-adhesion PETG Coated Overlay or Film for PETG Plastic Card Body Production

It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.

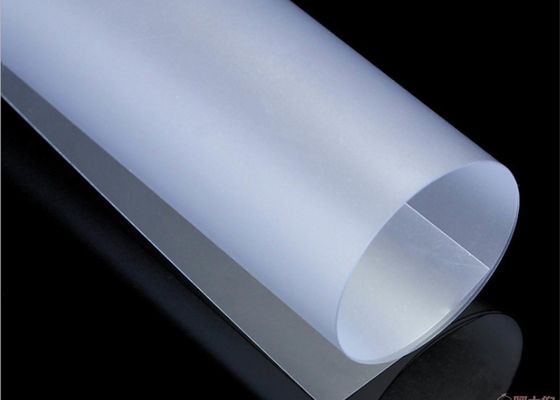

High Adhesion PETG Plastic Sheet Perfect Application For Anti Fake IC Cards 1

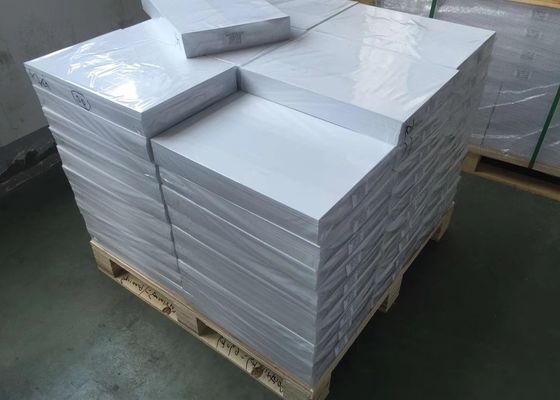

4. Packaging for High-adhesion PETG Coated Overlay or Film for PETG Plastic Card Body Production

In standard export carton and are packed on plywood pallet

High Adhesion PETG Plastic Sheet Perfect Application For Anti Fake IC Cards 2
