40MPa 760 Micron PVC Core Offset Printable PVC Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Packaging Details: | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 million square meters or 5 million tons per month |
|
Detail Information |
|||
| Thickness Range: | 120-760micron | Color: | Milk White (MOP-W-NF Model)/Snow White(MOP-W-F Model) |
|---|---|---|---|
| Suitable Printer Models: | The Whole Series Of Offset Printer And Silk-screen Printers | Vicat ℃: | 77±2 |
| Longitudinal MPa: | ≥45 | Transverse MPa: | ≥40 |
| Surface Tension Dyne/cm: | ≥35 | Package Method: | 100-200 Sheets Per PE Bag, All The Bags Are Firmly Piled Up And Fixed On The Solid Plywood Pallets. |
| High Light: | Offset Printable PVC Sheet,760 Micron Printable PVC Sheet,A4 PVC Card Core Sheet |
||
Product Description
PVC Core Sheet Offset printable PVC white sheet / core for silk screen printer use
PVC Core Sheet/ offset /inlay sheet MOP-W used in Silk-screen printer
1. PVC Core Sheet Offset printable PVC white sheet / core - Description
Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
2.PVC Core Sheet Offset printable PVC white sheet / core -Technical parameters:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
| Thickness | 0.12-0.76mm |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Suitable printer models | The whole series of offset printer and silk-screen printers |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
3.PVC Core Sheet Offset printable PVC white sheet / core - Featuers:
1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.
4) No crack occurs on the printed images after lamination at high temperature.
4.PVC Core Sheet Offset printable PVC white sheet / core - Application

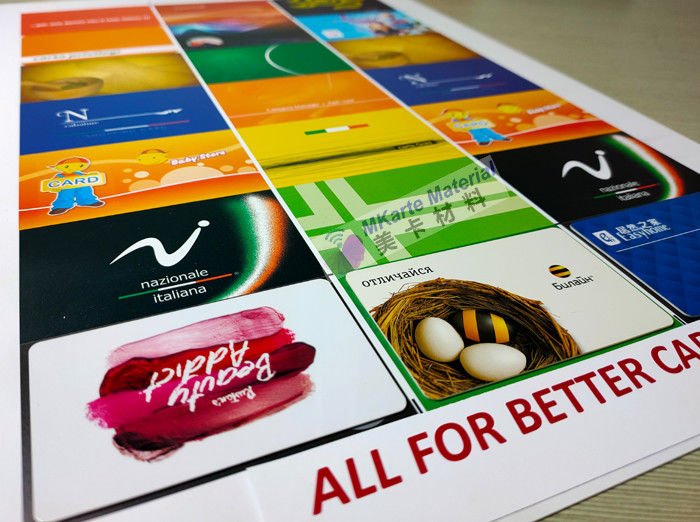

Our PVC sheet can be made Bank card, Credit card, Membership card, SIM card and so on.
It can make laminated or un-laminated cards, can be printed, coated, jetted with all colors, punched.
5. PVC Core Sheet Offset printable PVC white sheet / core - Inspection , Package and Storage
