Lamination Card Ink Adhesion A4 Offset Printing PVC Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3 million tons per month |
|
Detail Information |
|||
| Sheet Size: | In Sheet , A4 , A3 Or Custom Made | Size Tolerance: | ± 5 % |
|---|---|---|---|
| Surface: | Without Coating On Both Sides | Heat Shrinkage Rate% 140℃ 10min: | Transverse ≤5 |
| Vicat ℃: | 77±2 | Color: | Common White / Super White |
| High Light: | A4 Offset Printing PVC Sheet,A3 PVC Card Core Sheet,Ink Adhesion Printing PVC Sheet |
||
Product Description

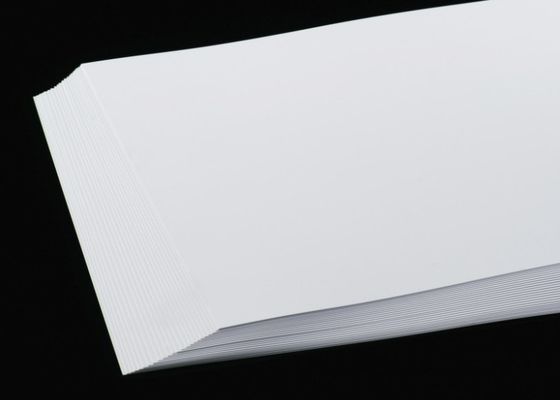

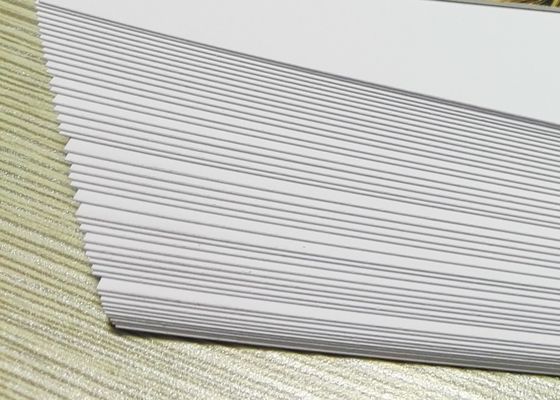

A4 Size PVC Core Offset Printing Sheet With Strong Peeling Strength
Product Technical Specification
Application

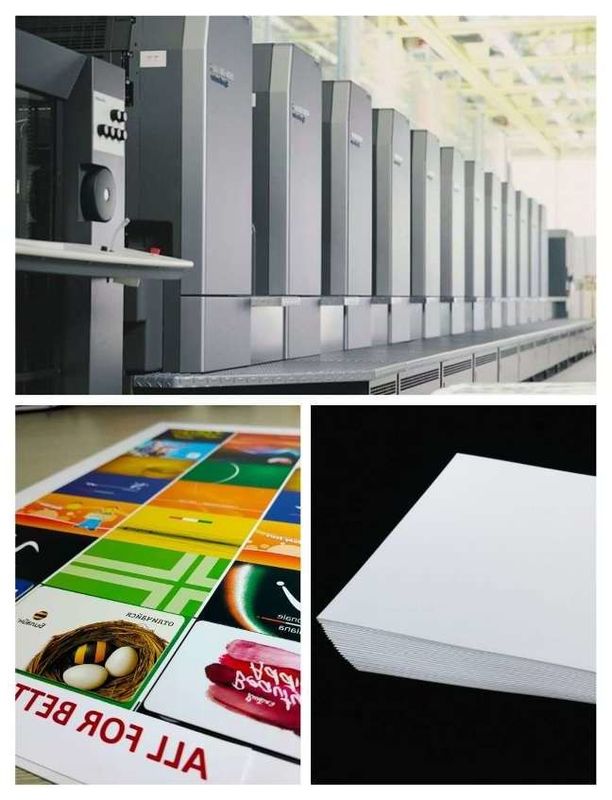

Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.
4) No crack occurs on the printed images after lamination at high temperature.
Product Features:
1. Thickness: 0.12-0.76mm
2. Color: Milk White (MOP-W-NF model)/Snow White ( MOP-W-F model )
3. Suitable printer models: The whole series of offset printer and silk-screen printers
4. Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
5. Storage condition: Sealed , moisture-proof , room temperature under 40℃
Technical parameters:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne / cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
Packing of A4 Size PVC Core Offset Printing Sheet With Strong Peeling Strength
