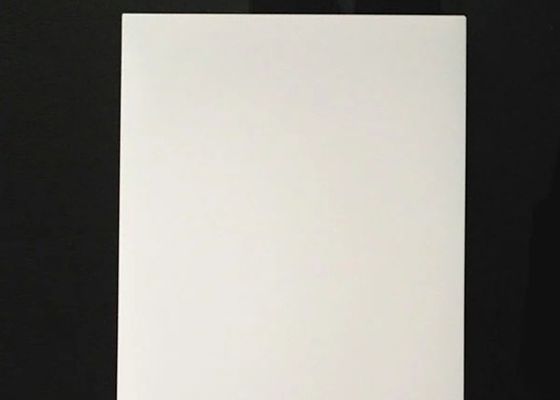

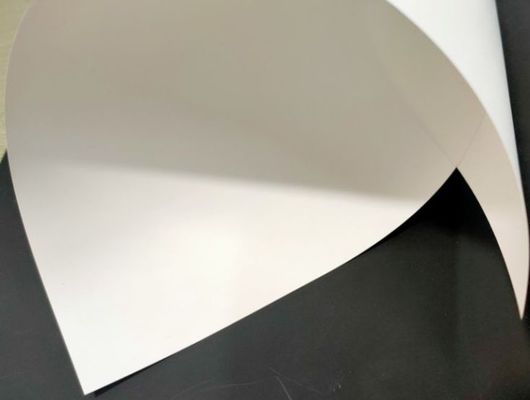

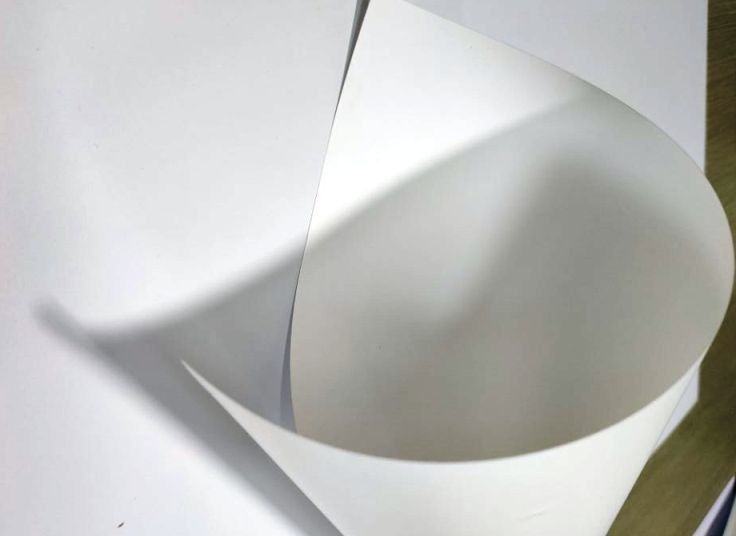

0.76mm A4 Offset Printing Petg Plastic Sheet Smart Card Material
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCS-PETG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 Sheets per Week |
|
Detail Information |
|||
| Normal Size: | A4,A3 Or Other | Color: | Common White |
|---|---|---|---|
| Common Thickness: | 0.10-0.76mm | Sheet Packing: | 30kg Per Bag Or As Your Requirement |
| Pallets Packing: | 500- 2000kg Per Plywood Pallet | Port: | Shanghai Or Other |
| High Light: | offset printing petg plastic sheet,0.76mm PETG Plastic Sheet,a4 PETG Plastic Sheet |
||
Product Description
Offset Printing PETG Plastic Sheet Environmentally Friendly Smart Card Material
1. Introduction of Offset Printing PETG Plastic Sheet Environmentally Friendly Smart Card Material
Offset Printing PETG Plastic Sheet Environmentally Friendly Smart Card Material is widely used in card base production. It has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards and passport, etc.
PETG is a kind of transparent amorphous copolyester.
Features:
1).Excellent strength and wear-resisting
2).High temperature and low temperate resistance;
3).Perfect application for laser Engraving
4).Environment-friendly material
5).Longer service life
| Item | PETG Core Sheet |
| Color | White |
| Thickness Range(mm) | 0.1-0.76 |
| Vicat point ℃ | 78-80 ± 2 |
| Tensile strength | ≥50 Mpa |
| Surface | Both sides matt |
| Density | 1.3 ± 0.05 |
| Transparency | ≤5 |
| Heat shrink | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
2. Specification of Offset Printing PETG Plastic Sheet Environmentally Friendly Smart Card Material
It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.
Technical Parameters:
| Item | Parameters |
| Vicat softening point (B50) | 78±2 |
| Vicat softening point (A120) | 80±2 |
| Heating Shrinkage ratio 105 ℃/10min | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface Dyne (dynes/cm) | ≥38 |
| Normal thickness in mm | 0.10-0.76 |
| Density (g/cm3) | 1.30 ±0.05 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
3. Application of Offset Printing PETG Plastic Sheet Environmentally Friendly Smart Card Material
PETG is a kind of transparent amorphous co polyester
1). Print the patterns directly to the material
2). Laminate with overlay
3). Punching
4). Other art-work
Characteristic
1.Good lamination properties
2.Good impact resistance
3.Good chemical resistance
4.Excellent printability with either offset or screen printing
5.Laminating Temp 120 degrees Celcius-130 degrees Celcius (lab conditions)
4. Packing of Offset Printing PETG Plastic Sheet Environmentally Friendly Smart Card Material
In standard export carton and are packed on plywood pallet
Inner package: PE film or pp bag
Outer package: pallet/container
