0.10mm Waterproof Petg Plastic Sheet For Plastic Cards Making

0.10mm Waterproof Petg Plastic Sheet For Plastic Cards Making

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-PETG

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3 million tons per month
Get Best Price Contact Now

Detail Information

Normal Size: By Reel Or Sheet, A4, A3 Or Customized Thickness Range: 0.04-0.10mm
Color: Transparent Glue Coating: One-side Glue Coating.
Package Method: By Reel Or 500 Sheets Per Bag/4-8 Bags Per Paper Carton, Or As Per Customer Requirements. All The Cartons Are Firmly Piled Up And Fixed On The Solid Plywood Pallet. Storage Condition: Sealed, Moisture-proof, Room Temperature Under 40℃, Keep It Horizontally, Avoid Heavy Pressing And Direct Sunlight.
High Light:

Waterproof Petg Plastic Sheet

,

0.10mm PETG Plastic Sheet

,

0.10mm petg clear plastic sheet

Product Description

Waterproof PETG Plastic Coated Overlay Film Sheet For PETG Plastic Cards Making



1. Introduction of Waterproof PETG Plastic Coated Overlay Film Sheet For PETG Plastic Cards Making

 The performance of PETG Coated Overlay Sheet is a new developed environment friendly product which could get excellent peel strength at low laminating temperature. It provides superior aging resistance performance to other similar products and no deformation and color change after lamination. Could be used for laminating pure PETG card (both overlay and sheet are PETG).
2.Specification of Waterproof PETG Plastic Coated Overlay Film Sheet For PETG Plastic Cards Making

PETG overlay film which used for card making and laminating ,glossy and semi-transparency , Anti-static ,abration,folding,high strength .

Technical Parameters:

Item Parameters
Vicat softening point (B50)    74±2
Vicat softening point (A120)   78±2
Heating Shrinkage ratio 105 ℃/10min    ≥-8.0 % (longitudinal) &≥-4.0 %(transverse)
Surface Dyne (dynes/cm) ≥38
Normal thickness in mm 0.04,0.05,0.06,0.08,0.10
Density (g/cm3) 1.20 ±0.05
Peel Strength (90°, 300mm/min) ≥6.0 N/cm
Aging time (65℃ temp./95% humidity ) >200 hours
 Suitable ink offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink

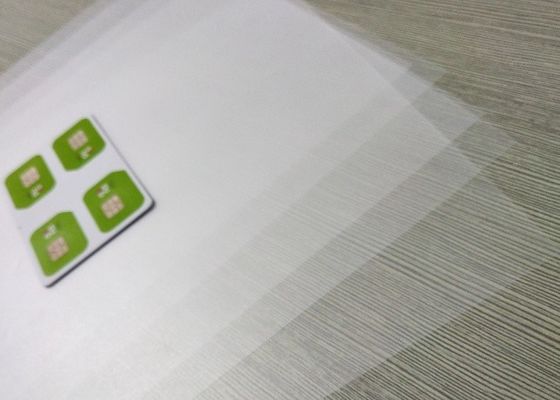

  0.10mm Waterproof Petg Plastic Sheet For Plastic Cards Making 0

Parameters:
 1). Size: in reel or sheet, A4, A3 or as per customer requirements
    2). Normal thickness: 0.04,0.05,0.06,0.08,0.10mm

    3). Color: transparent with one-side glue coating.

    4). Package method: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled           up and fixed on the solid plywood pallet.

    5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.



3. Application of Waterproof PETG Plastic Coated Overlay Film Sheet For PETG Plastic Cards Making

PETG Coated Overlay Sheet ( PETG Coatd Film) for PETG Card body production (Model: MCO-PETG) has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards, special packaging and printing industry.

PETG is a kind of transparent amorphous copolyester.

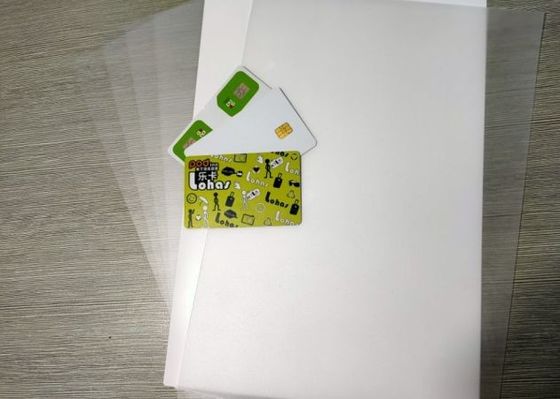

0.10mm Waterproof Petg Plastic Sheet For Plastic Cards Making 1

4.Packing of Waterproof PETG Plastic Coated Overlay Film Sheet For PETG Plastic Cards Making

Package method: by reel or 500 sheets per bag/4-8 bags per paper carton, or as per customer requirements. All the cartons are firmly piled up and fixed on the solid plywood pallet.

Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

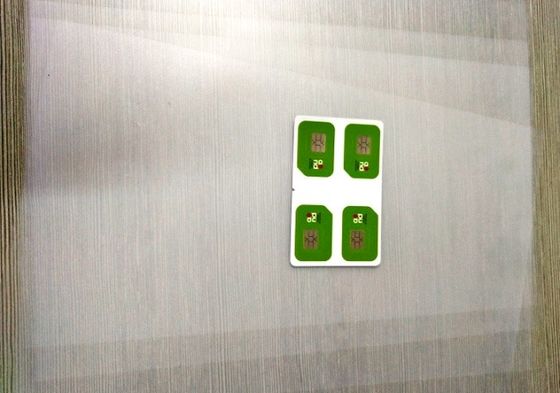

0.10mm Waterproof Petg Plastic Sheet For Plastic Cards Making 2

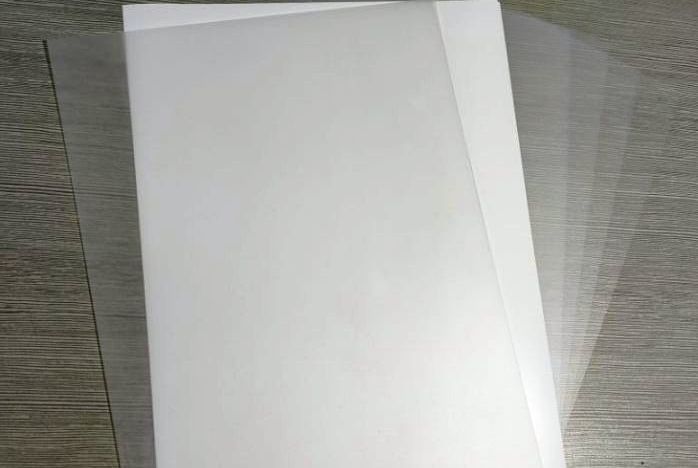

0.10mm Waterproof Petg Plastic Sheet For Plastic Cards Making 3
