• SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet
  • SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet
SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet

SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCS-SIM

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets or 2 tons
Price: Negotiable
Packaging Details: 100 or 200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets
Delivery Time: 10-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10-15 million square meters per month
Get Best Price Contact Now

Detail Information

Thickness: 0.10 - 0.50mm Squareness Mm: ±1
Vicat ℃: 77±2 Thickness Tolerance %: ±5
Size: A4 , A3 Or Customized Surface Tension Dyne/cm: ≥ 35
High Light:

A4 Polyvinyl Chloride Core Sheet

,

0.10mm Polyvinyl Chloride Core Sheet

,

0.10mm PVC Core Sheet

Product Description

1. Thickness: 0.12-0.76mm

2. Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)

3. Suitable printer models: The whole series of offset printer and silk-screen printers
4. Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.

5. Storage condition: Sealed, moisture-proof, room temperature under 40℃

Special Sheet Materials PVC Core Sheet / Pvc Plastic Sheet For SIM Card Body Production



Product Technical Specification



1. Introduction of Special Sheet Materials PVC Core Sheet / Pvc Plastic Sheet For SIM Card Body Production



 PVC sheet for SIM Card Production (also named as PVC SIM Card Base or PVC Sheet for mobile SIM Card production) is mainly used as the special sheet materials for production phone SIM cards. Such material is featuring as high heat resistance as well as the higher fire resistance (above FH-1).



SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet 0





2.Specification of Special Sheet Materials PVC Core Sheet / Pvc Plastic Sheet For SIM Card Body Production

SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet 1

Item Unit Value
Density g/cm3 1.29 ±0.05
Tensile Strength Horizontal MPa ≥45
Vertical ≥48
Vicat 5kg 90±2
Surface Roughness Ra μm 0.7~1.8
Rz 5.0~10.0
Surface Dyne dynes/cm 4#≥34, 5#≥36

1). Thickness: 0.12-0.76mm

2). Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)

3). Suitable printer models: The whole series of offset printer and silk-screen printers
4). Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.

5). Storage condition: Sealed, moisture-proof, room temperature under 40℃
*Customized design is availalbe.



3. Applications of Special Sheet Materials PVC Core Sheet / Pvc Plastic Sheet For SIM Card Body Production



PVC Sheet for SIM Card Production is mainly used for making GSM SIM Card.  Such material is specially designed to meet the special SIM CARD functional requirements such as  high heat resistance and fire resistance.

SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet 2

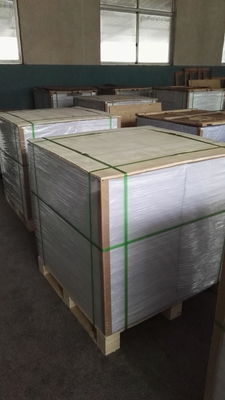

4. Packging and storage of  Special Sheet Materials PVC Core Sheet / Pvc Plastic Sheet For SIM Card Body Production



SIM Card Body Production 0.10mm A4 Polyvinyl Chloride Core Sheet 3
