0.12mm 0.76mm PVC Core Sheet For Offset Card Printing
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Normal Thickness: | 0.12-0.76mm (tolerance +/-5%) | Heat Shrinkage Rate%: | 140℃ 10min |
|---|---|---|---|
| Size: | Sheet Size Or Roll Size | Vicat Point: | 77+2 ℃ (ISO306B50) |
| Roughness(Ra，μm): | 0.7~1.4 | Roughness(Rz，μm): | 4~9 |
| High Light: | 0.76mm PVC Core Sheet,0.12mm PVC Core Sheet |
||
Product Description
Offset Printable Card Core Sheet PVC White Core Sheet for Offset Card Printing
Excellent Ink Adhesion Printable Pvc Core Sheets For Silk-screen Printing Card Making
1.Excellent Ink Adhesion Printable Pvc Core Sheets For Silk-screen Printing Card Making- Product Technical Specification
Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
It can make laminated or un-laminated cards, can be printed, coated, jetted with all colors, punched.
Our PVC sheet can be made Bank card, Credit card, Membership card, SIM card and so on.
1). Low dust
2). Excellent stable quality
3). Exact sheet size cutting and thickness control
4). Low static easy for sheet feeding
5). Smooth roughness
6). Adjustable VICAT degree
7). Adjustable Opaque degree
8). Perfect packaging for transportation
9). Special formulation according to each client's requirement
10). Surface tension can over 40 Dyne
11). Less than15 days Short Lead Time
12). Best after sell service
2. Excellent Ink Adhesion Printable Pvc Core Sheets For Silk-screen Printing Card Making- Application
3.Excellent Ink Adhesion Printable Pvc Core Sheets For Silk-screen Printing Card Making - Parameters:
| Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Thickness | 0.12-0.76mm (tolerance +/-5%) |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Coating description | digital ink coating on one side and lamination glue coating on another side. |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
4. Excellent Ink Adhesion Printable Pvc Core Sheets For Silk-screen Printing Card Making - Product Features:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
Detailed Product Description
1).Color: White,
2).Size: Sheet size or roll size
3).Roughness: Both sides matte
5. Excellent Ink Adhesion Printable Pvc Core Sheets For Silk-screen Printing Card Making -Characteristics:
1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.
4) No crack occurs on the printed images after lamination at high temperature.

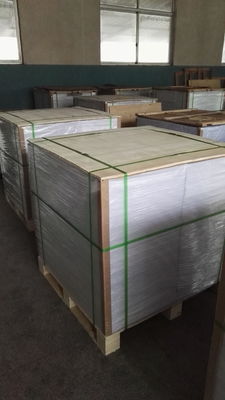

6. Excellent Ink Adhesion Printable Pvc Core Sheets For Silk-screen Printing Card Making- Packing
