White 760micron Pvc Core Sheet For Pvc Card Production

White 760micron Pvc Core Sheet For Pvc Card Production

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MOP-W

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: USD 0.05-0.3 per sheet
Packaging Details: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 million square meters or 5 million tons per month
Get Best Price Contact Now

Detail Information

Thickness Range: 120-760micron Heat Shrinkage Rate% 140℃ 10min: Longitudinal ≥-10
Vicat ℃: 77±2 Longitudinal MPa: ≥45
Transverse MPa: ≥40
High Light:

card production pvc core sheet

,

production card pvc core sheet

,

760micron pvc core sheet

Product Description

Inlay / Offset Printing Pvc Core Sheet Used in Offest printer for PVC card production



1. Inlay / Offset Printing Pvc Core Sheet Used in Offest printer for PVC card production- Introduction

Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.

White 760micron Pvc Core Sheet For Pvc Card Production 0

2. Inlay / Offset Printing Pvc Core Sheet Used in Offest printer for PVC card production- Featuers and Technical parameters

Featuers:


1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.

4) No crack occurs on the printed images after lamination at high temperature.

Technical parameters:

Item Index
Tensile strength Longitudinal MPa ≥45
Transverse MPa ≥40
Vicat ℃ 77±2
Surface Tension dyne/cm ≥35
Heat shrinkage rate% 140℃ 10min Transverse ≤5
Longitudinal ≥-10
Squareness mm ±1
Thickness tolerance % ±5
Roughness μm Ra,μm 0.7~1.4
Rz,μm 4~9



1). Thickness: 0.12-0.76mm

2). Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)

3). Suitable printer models: The whole series of offset printer and silk-screen printers
4). Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.

5). Storage condition: Sealed, moisture-proof, room temperature under 40℃

White 760micron Pvc Core Sheet For Pvc Card Production 1

3. Inlay / Offset Printing Pvc Core Sheet Used in Offest printer for PVC card production- Application

Thickness 0.12-0.76mm
Color Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
Suitable printer models The whole series of offset printer and silk-screen printers
Storage condition Sealed, moisture-proof, room temperature under 40℃
Package method 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.

Offset printable PVC white sheet / core

Thickness Range: 110 ~ 810 Micron
Color: White, Transparent or Colored
Size: Sheet size or roll size

Roughness: Both sides matte

Vicat point: 76+2 ℃ (ISO306B50)

Width: <=1530mm
Inner Core Diameter: 3’’(76mm)

Applicable:

Our PVC sheet can be made Bank card, Credit card, Membership card, SIM card and so on.

Usage:

It can make laminated or un-laminated cards, can be printed, coated, jetted with all colors, punched.

Characteristic:

1). Excellent stable quality
2). Special formulation according to each client's requirement
3). Exact sheet size cutting and thickness control
4). Low dust
5). Surface tension can over 40 Dyne
6). Low static easy for sheet feeding
7). Smooth roughness
8). Adjustable VICAT degree
9). Adjustable Opaque degree
10). Less than15 days Short Lead Time
11). Perfect packaging for transportation
12). Best after sell service

White 760micron Pvc Core Sheet For Pvc Card Production 2

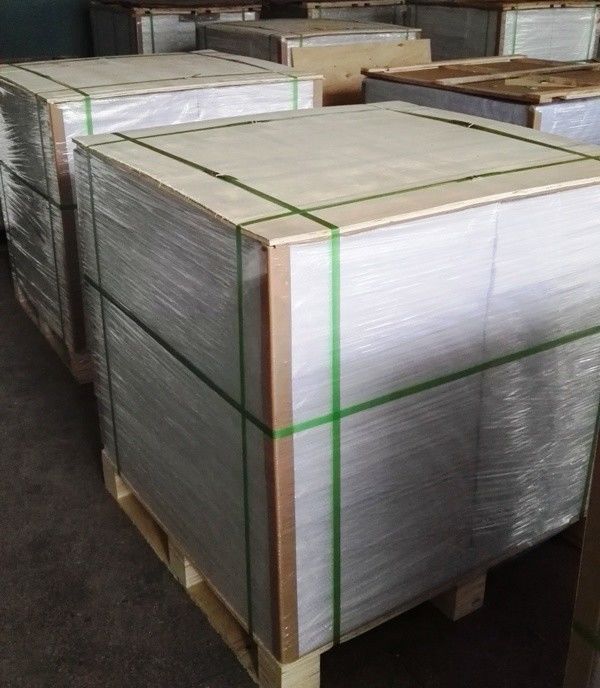

4. Inlay / Offset Printing Pvc Core Sheet Used in Offest printer for PVC card production- Packing

White 760micron Pvc Core Sheet For Pvc Card Production 3
