0.3mm Offset Printable Pvc Core Sheet Aging Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Common Size: | 295x480microns, 210x297micron, Etc | Normal Thick: | From 120micron-800microns |
|---|---|---|---|
| Character: | Excellent Stable Quality | Packging: | Export Standard Box + Plywood Pallet |
| Surface Dyne: | ≥34dynes/cm | Productivity: | 10000000 Pieces Per Month |
| High Light: | 0.3mm pvc core sheet,offset printable pvc core sheet,aging resistance pvc core sheet |
||
Product Description

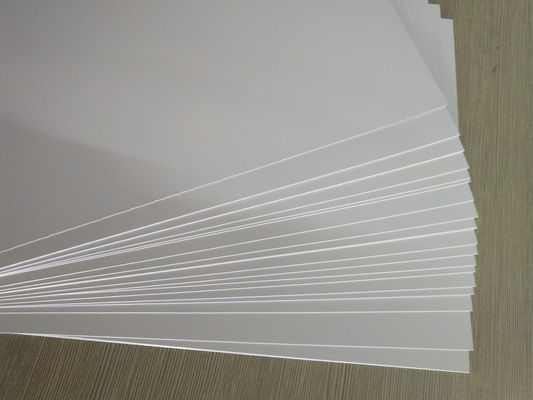

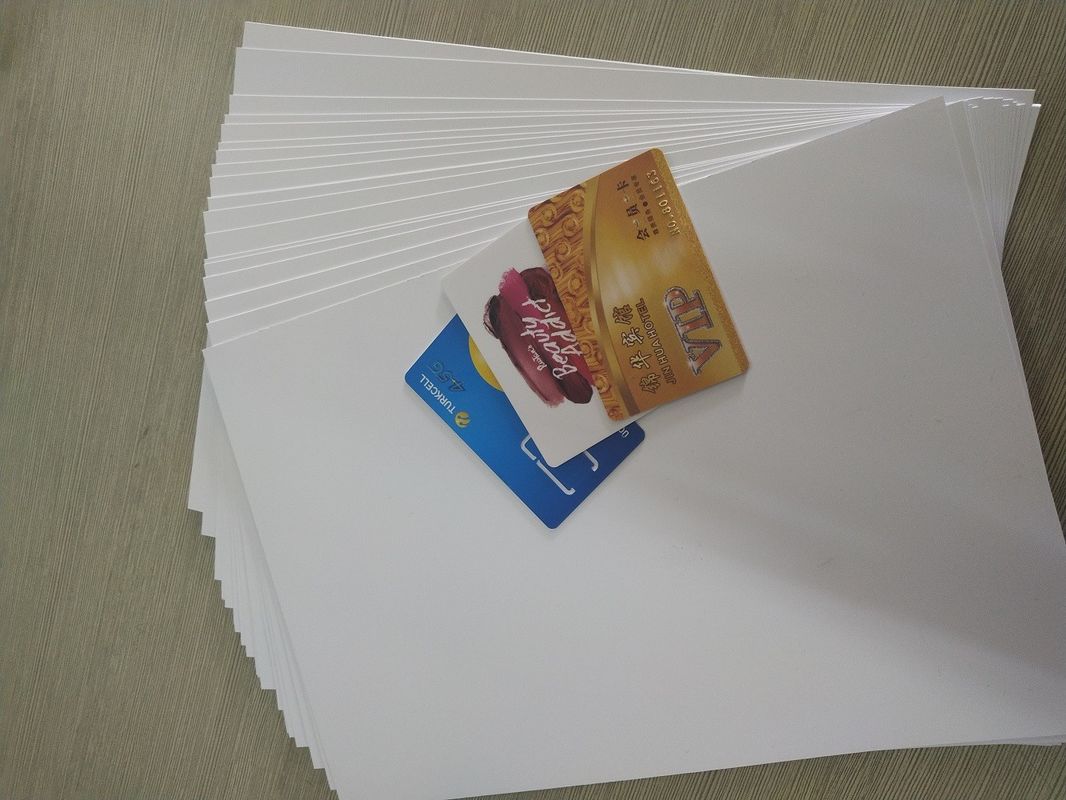

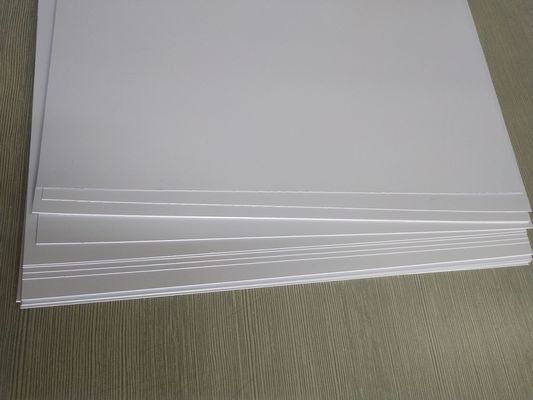

0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
1.Technical specification of 0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
Technical parameters:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
1. Thickness: 0.12-0.76mm
2. Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
3. Suitable printer models: The whole series of offset printer and silk-screen printers
4. Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
5. Storage condition: Sealed, moisture-proof, room temperature under 40℃
2. More details of 0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
Product Advae:
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
It can be laminated with uncoated overlay film after uv offset priting or screen printing.
Product Advae:
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
| Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Thickness | 0.12-0.76mm (tolerance +/-5%) |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Coating description | digital ink coating on one side and lamination glue coating on another side. |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
3. Packing of 0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
| Packing Details |
| Common package: PE bag+ Kraft paper/PE wrapping + PP belt+Wooden Pallet |
| Packaging size: 3'x6'(915x1830) /4'x8'(1220x2440) pallet or any customized size wooden pallet. |
| Delivery time: 10 Days after the receipt of 50% deposit. |
| Payment: 50% deposit and 50% T/T before shipment. |
