Offset Printable Plastic Core Sheet 0.32mm For Card Production
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |

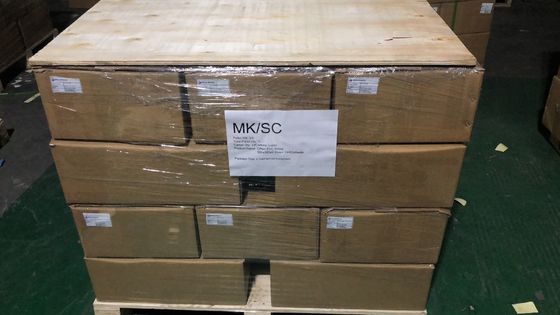

| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Vicat ℃: | 77±2 | Thick Range: | 0.12-0.76mm |
|---|---|---|---|
| Common Color: | Milk White (MOP-W-NF Model)/Snow White (MOP-W-F Model) | Suitable Printer Models: | The Whole Series Of Offset Printer |
| Thickness Tolerance: | ±5% | Loading Port: | Shanghai Or Other Chinese Port |
| Highlight: | offset printable plastic core sheet,0.32mm plastic core sheet,card production pvc core sheet |
||
Product Description
Offset Printable Sheet 0.32mm PVC Core Sheet For Plastic Card Production
1.Introduction of Offset Printable Sheet 0.32mm PVC Core Sheet For Plastic Card Production

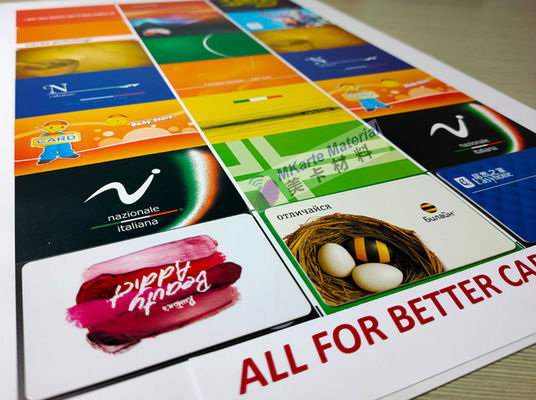

This kind of ordinary PVC sheet can be used for laminating, non-laminating, printing, coating and
cutting, such as membership cards and calendars.
Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet.
2. Features of Offset Printable Sheet 0.32mm PVC Core Sheet For Plastic Card Production
Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.
4) No crack occurs on the printed images after lamination at high temperature.
Technical parameters:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
3. Product Advae of Offset Printable Sheet 0.32mm PVC Core Sheet For Plastic Card Production
Product Advae:
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
It can be laminated with uncoated overlay film after uv offset priting or screen printing.
