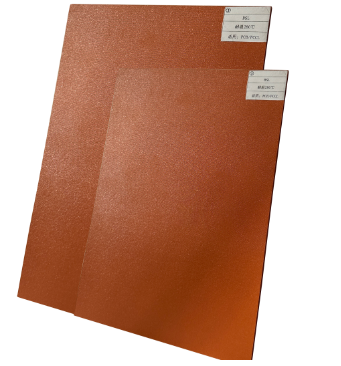

Red Rigid 4mm-6.5mm Thickness CCL Cushion Pad | Hot Press Lamination Buffer Pad
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MK-CCL-G1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 Square Meters per Month |
|
Detail Information |
|||
| Reusable Lifespan: | Supports 600-800 Repeated Hot Pressing Cycles, | Feature: | High Temperature Resistance |
|---|---|---|---|
| Thickness Range: | 4mm - 6.5mm | Tensile Strength: | ≥25 MPa |
| Product Name: | CCL Cushion Pad | Material: | High-rigidity Red Buffer Material |
| Highlight: | Red rigid CCL cushion pad,4mm-6.5mm laminated pad,Hot press lamination buffer pad |
||
Product Description
Red Rigid 4mm-6.5mm Thickness CCL Cushion Pad | Hot Press Lamination Buffer Pad
CCL Cushion Pad is a high-rigidity red buffer material specially designed for copper clad laminate (CCL) lamination processes. Serving as a perfect replacement for traditional hot press kraft paper, it effectively upgrades dimensional accuracy and production stability. This premium cushion pad reduces the industry standard dimensional tolerance from ±300ppm to ±250ppm, delivering outstanding lamination performance and ultra-high stability.
Widely known as CCL lamination cushion pad, hot press buffer mat and CCL buffering pad, it is an essential consumable for CCL hot pressing. Compatible with both manual multi-sheet replacement operations and automated lamination production lines, one single pad can replace multiple layers of kraft paper, greatly simplifying production procedures and boosting overall efficiency and yield.
Product Features
- Can be repeatedly pressed for 600-800 times, significantly reducing CCL production costs
- Superior performance in flatness, wear resistance, size increase ratio, and thickness variation compared to hot press kraft paper
- Excellent high temperature resistance, working reliably at up to 280℃ without carbonization or brittleness
- Outstanding buffering effect and thermal conductivity with stable compression and expansion coefficients
- Good tear resistance and breathability properties
- Flame retardant, non-toxic, odorless, dust-free and shavings-free
- Competitive pricing with shorter delivery times and strict quality control
Technical Specifications
| Parameter | Specification |
|---|---|
| Service Life | 600-800 pressing times |
| Max Working Temperature | ≤280°C |
| Thickness Range | 4mm - 6.5mm |
| Thickness Tolerance | ±0.3mm |
| Size Tolerance (Length/Width) | ±2mm |
| Tensile Strength | ≥25 MPa |
| Buffer Rate | ≥12% |
| Water Absorption | 3% - 8% (<8%) |
| Regular Sizes (L*W, mm) | 2220*1270, 2120*1270, 1920*1270, 1905*1270, 1270*1070, 1270*1120, 1270*800 |
Application Scenarios
Ideal for intermediate layer physical buffering, manual multi-sheet replacement and automated lamination production of copper clad laminates. Widely applicable to industrial CCL hot press manufacturing processes.
