Impact Resistant Offset Printing PC Plastic Core Sheet For PC Plastic Card
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCS-PC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In standard export carton , 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Sheets per Week |
|
Detail Information |
|||
| Surface Dyne: | ≥ 38 Dynes/cm | Sheet Size: | A4 , A3 ,or As Per Custom-made |
|---|---|---|---|
| Surface: | Both Sides Are Matt Of The PC Sheet | Material: | Polycarbonate ( PC ) |
| Glue Coated: | Without Coating On Both Sides | Application: | Widely Used For Anti-fake IC Cards, Driving License Card, Transportation Card And Passport Etc |
| Package Method: | 100 Or 200 Sheets Per Bag, 10 Bags Per Paper Carton, And The Cartons Are Piled Up And Firmly Fixed On Solid Plywood Pallets | Loading Port: | Shanghai Or Other Chinese Port |
| High Light: | clear polycarbonate sheet,polycarbonate transparent sheet |
||
Product Description

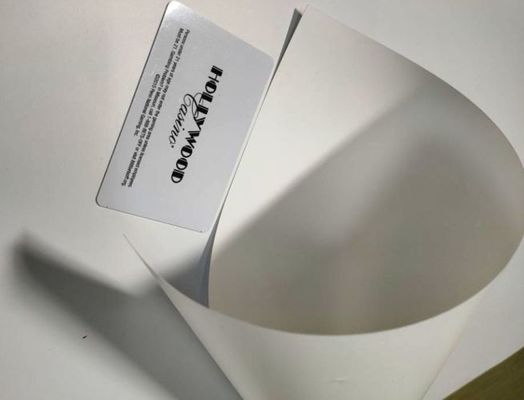

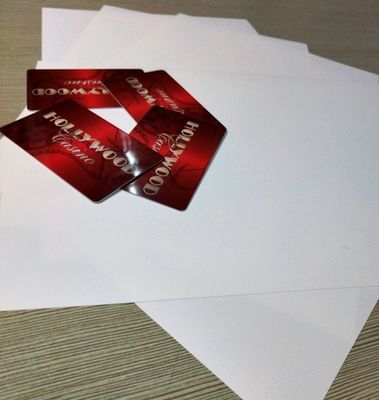

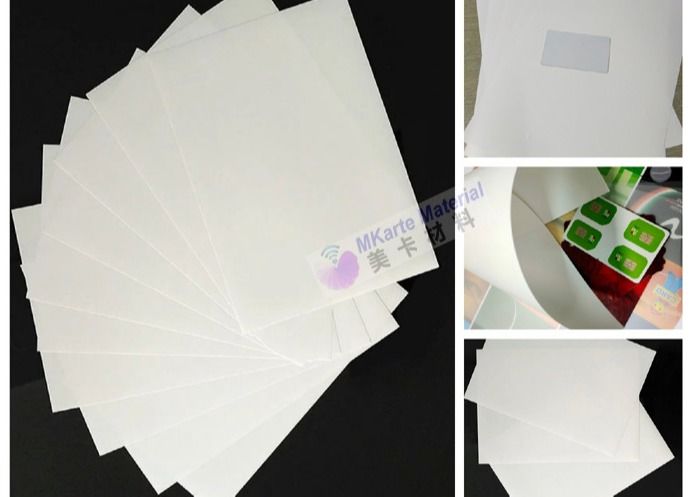

Offset Printing Polycarbonate PC Plastic Core Sheet for PC Plastic Card Production
Production Specification
| 1. Offset Printing Polycarbonate PC Plastic Core Sheet Introduction |
Offset Printing Polycarbonate PC Plastic Core Sheet is specially designed for high end PC card body production.
Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
General process for making PC Plastic cards :
1. Print directly to the surface of sheets
2. Hot press laminate with PC coated overlay films when the ink dries.
3. Punch out cards from the fused materials.
4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.
5. Finished cards.
| 2. Offset Printing Polycarbonate PC Plastic Core Sheet Specification |
Offset Printing Polycarbonate PC Plastic Core Sheet is known as the new reliable material for PC card body production. It has such features as high vicat point and can be used for laser engraving. The PC sheet is perfect for making ID card, E-Passport etc.
Features as below:
1. Excellent strength and wear-resisting
2. High temperature and low temperate resistance;
3. Perfect application for laser Engraving
4. Non-toxic, environment-friendly material
5. Vivid color and high resolution photo quality.
6. Longer service life
| Item | Unit | Value | |
| Density | g/cm3 | 1.30 ±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥50 |
| Vertical | ≥50 | ||
| Vicat | ℃ | 145±2 | |
| Surface Dyne | dynes/cm | ≥38 |
|
Product details :
Offset Printing Polycarbonate PC Plastic Core Sheet which is for PC card production , this material has under mentioned advaes :
1. Excellent strength and wear-resisting.
2. High temperature and low temperate resistance.
3. Perfect application for laser engraving.
4. Environment-friendly material.
5. Longer service life.
6. Perfect image of laser etching technology support, apply to identity cards with anti-fake requirements.
Parameters :
1. Size: 210*297mm ( A4 ) , 310*480mm ( A3 ) or as per customer requirements
2. Thickness: 0.10mm to 0.80mm
3. Color : White
4. Package method : 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
5. Storage condition : Sealed, moisture-proof, room temperature under 40℃
| Product name | Offset Printing Polycarbonate PC Plastic Core Sheet for PC Plastic Card Production |
| Color | White |
| Thickness Range | 0.10-0.80 mm |
| Vicat point ℃ | 145±2 |
| Tensile strength | ≥50 Mpa |
| Surface | Both sides matte |
| Density | 1.3 |
| Transparency | ≤5 |
| Heat shrink | ≤0.5 |
| Surface roughness | ＜1.5 |
| Surface tension dynes/cm | ≥38 |
| Glue coated | Without coating on both sides |
| Storage | Sealed, moisture-proof, room temperature under 40℃ |
| 3. Application of Offset Printing Polycarbonate PC Plastic Core Sheet |
It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
| 4. Packing of Offset Printing Polycarbonate PC Plastic Core Sheet |
In standard export carton and are packed on plywood pallet
