Product Details:

Place of Origin: China
Brand Name: MKarte
Model Number: MCS-PC

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability: 50000 Sheets per Week
Get Best Price Contact Now

Detail Information

Material: PC Core Sheet Color: White ,Black Or Transparent
Thickness Range(mm): 0.10-0.80 Density: 1.3
Transparency: ≤5 Surface Roughness: <1.5
High Light:

clear polycarbonate sheet

,

custom polycarbonate sheets

Product Description

Polycarbonate PC Card Plastic Core Sheet, PC Card Base for PC card production



1.Polycarbonate PC Card Plastic Core Sheet, PC Card Base- Introduction



Polycarbonate PC Card Core Sheet (Model MCS-PC) is specially designed for high end PC card body production.

Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.



PC sheet is known as the new reliable material for PC card body production. It has such features as high vicat point and can be used for laser engraving. The PC sheet is perfect for making ID card, E-Passport etc.



Features:
1).Excellent strength and wear-resisting
2).High temperature and low temperate resistance;
3).Perfect application for laser Engraving
4).Environment-friendly material
5).Longer service life

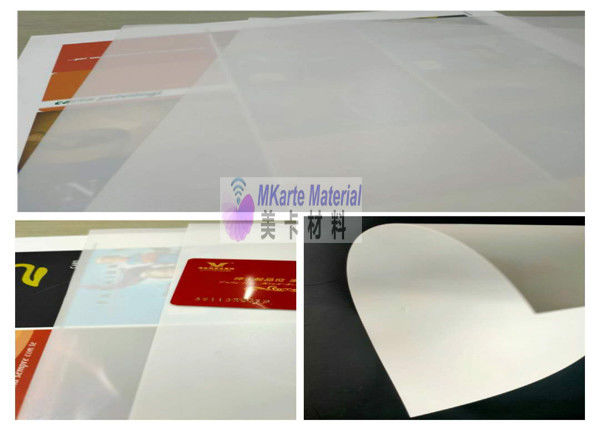

Impact Resistance Polycarbonate PC Card Plastic Core Sheet For PC Card 0




2.Polycarbonate PC Card Plastic Core Sheet, PC Card Base- Parameters



It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.

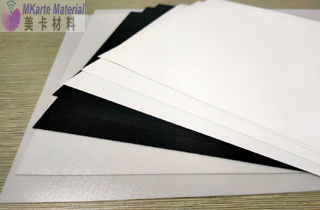

Impact Resistance Polycarbonate PC Card Plastic Core Sheet For PC Card 1

Item PC Core Sheet
Color White, Transparent or Black
Thickness Range(mm) 0.10-0.80
Vicat point ℃ 145±2
Tensile strength ≥50 Mpa
Surface Both sides matt
Density 1.3
Transparency ≤5
Heat shrink ≤0.5
Surface roughness <1.5
Surface tension dynes/cm ≥38



PC Card Core with excellent strength and wear resistance, high temperature resistance, perfect image of laser etching technology support.Apply to identity cards with anti-fake requirements, driving license, passport etc.



Item Unit Value
Density g/cm3 1.30 ±0.05
Tensile Strength Horizontal MPa ≥50
Vertical ≥50
Vicat 145±2
Surface Dyne dynes/cm ≥38



3.Polycarbonate PC Card Plastic Core Sheet, PC Card Base- Application



Card-making method

1). Print the patterns directly to the material

2). Laminate with overlay

3). Punching

4). Other art-work

Product model Product name Thickness Range mm Color Vicat dynes/cm Apparent density g/cm3 Peel strength N/cm Main application
PC PC core 0.1-0.8

White

Black

Transparent

A50=145±2 ≥38 1.3 / It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.

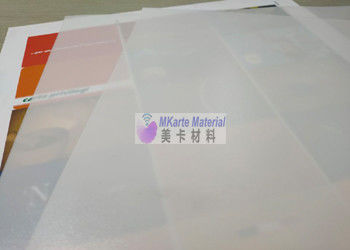

Impact Resistance Polycarbonate PC Card Plastic Core Sheet For PC Card 2





4.Polycarbonate PC Card Plastic Core Sheet, PC Card Base - Packing

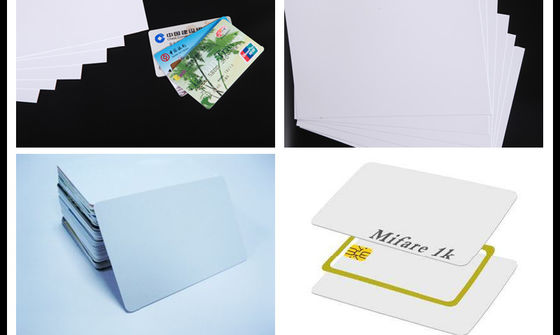

Impact Resistance Polycarbonate PC Card Plastic Core Sheet For PC Card 3

Impact Resistance Polycarbonate PC Card Plastic Core Sheet For PC Card 4
