Product Details:

Place of Origin: China
Brand Name: MKarte
Model Number: MCS-PC-INLAY

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability: 50000 Sheets per Week
Get Best Price Contact Now

Detail Information

Material: PC Core Sheet Color: White ,Black Or Transparent
Vicat: 85-90 Density ( G/cm3): 1.30 ±0.05
Thickness Range: 0.05-1.0mm Surface Dyne: ≥38 Dynes/cm
High Light:

clear polycarbonate sheet

,

custom polycarbonate sheets

Product Description

Low Vicat PC core sheet or base sheet for Contactless IC cards Production



1.Low Vicat PC core sheet or base sheet - Introduction



Polycarbonate PC Card Core Sheet (Model: MCS-PC-INLAY) is specially designed for INLAY sheet production of Contactless or RFID PC Card. It is featuring lower vicat softening point, which can provide good protection on chips inside during the process of laminator grading lamination process. It is known as the high-quality PC sheet for various contactless or RFID PC cards.



Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.



Features:
1).Excellent strength and wear-resisting
2).High temperature and low temperate resistance;
3).Perfect application for laser Engraving
4).Environment-friendly material
5).Longer service life

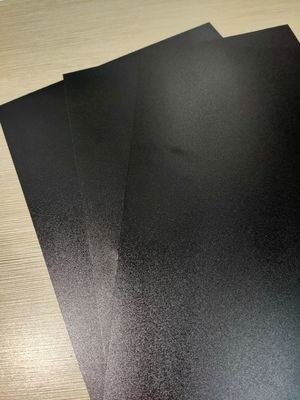

Wear - Resisting Plastic Sheet Polycarbonate Environment Friendly Material 0




2.Low Vicat PC core sheet or base sheet - Parameters

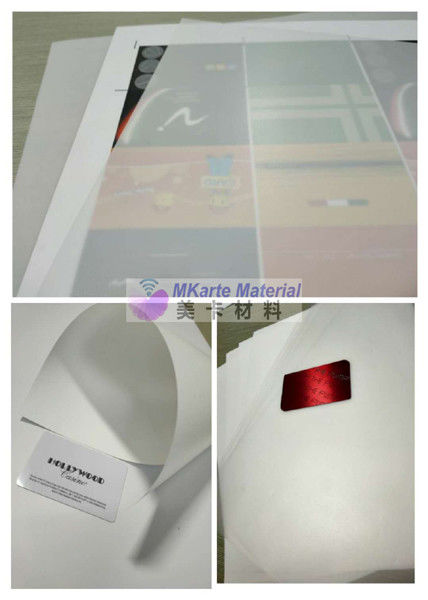

Wear - Resisting Plastic Sheet Polycarbonate Environment Friendly Material 1

It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.





Item PC Core Sheet
Color White, Transparent or Black
Thickness Range(mm) 0.05-1.0
Vicat point ℃ 85-90
Tensile strength ≥50 Mpa
Surface Both sides matt
Density 1.3
Transparency ≤5
Heat shrink ≤0.5
Surface roughness <1.5
Surface tension dynes/cm ≥38



PC Card Core with excellent strength and wear resistance, high temperature resistance, perfect image of laser etching technology support.Apply to identity cards with anti-fake requirements, driving license, passport etc.



Item

Unit

Value

Density

g/cm3

1.30 ±0.05

Tensile Strength

Horizontal

MPa

≥50

Vertical

≥50

Vicat

85-90

Surface Dyne

dynes/cm

≥38

Thickness range

mm

0.05-1.0mm

3.Low Vicat PC core sheet or base sheet - Application

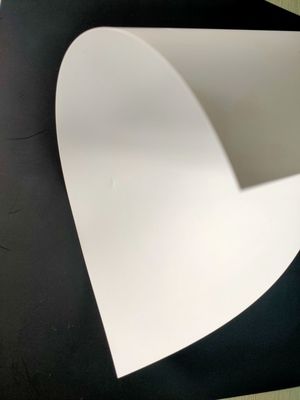

Wear - Resisting Plastic Sheet Polycarbonate Environment Friendly Material 2



Polycarbonate PC Card Core Sheet (Model MCS-PC-INLAY) is specially designed for high end PC card body production.

Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.



PC sheet is known as the new reliable material for PC card body production. It has such features as high vicat point and can be used for laser engraving. The PC sheet is perfect for making ID card, E-Passport etc.

Card-making method

1). Print the patterns directly to the material

2). Laminate with overlay

3). Punching

4). Other art-work

Product model Product name Thickness Range mm Color Vicat dynes/cm Apparent density g/cm3 Peel strength N/cm Main application
PC PC core 0.05-

White

Black

Transparent

85-90 ≥38 1.3+/-0.05 / It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.









4.Low Vicat PC core sheet or base sheet - Packing

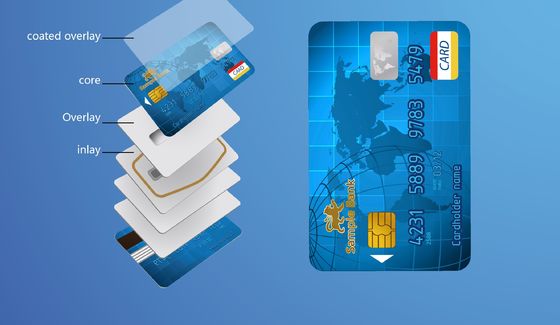

Wear - Resisting Plastic Sheet Polycarbonate Environment Friendly Material 3

Wear - Resisting Plastic Sheet Polycarbonate Environment Friendly Material 4
