Peelable 300oe 5 Lines Magnetic Stripe Coated Overlay

Peelable 300oe 5 Lines Magnetic Stripe Coated Overlay

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-MS-LOCO

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets
Price: negotiable
Packaging Details: 100/200 sheets per bag or as per customer requirements.
Delivery Time: 10-20working days
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 6 million square meters per month
Get Best Price Contact Now

Detail Information

Size Tolerance: +/-0.5 Mm In Length And Width, +/-5% In Thickness. Thickness: 0.04mm,0.05mm,0.06mm,0.08mm,0.10mm Etc
Feature: Coated PVC Overlay With High Adhesion Level Applied Magnetic Stripe: LOCO 300oe, Standard Width 12.7mm, Black Color, Peelable Transfer Model, Brand: LUCKY
Package Method: 100/200 Sheets Per Bag Or As Per Customer Requirements. Product Name: A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production
High Light:

5 Lines Magnetic Stripe Coated Overlay

,

300oe Magnetic Stripe Coated Overlay

,

Peelable Magnetic Stripe Coated Overlay

Product Description

A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production



1.Introduction of A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production

A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.

It is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking , and cuts down the waste rate in production.

Using method: cover the printed plastic sheets and then laminate together.

Technical Note :

In manufacturing process, it can be directly laminated with PVC printing sheet, which will simplify the fabrication process and save time, and also the product's adhesive strength is high.

Steps to make cards:

1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .

2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.

3. Cutting the card.

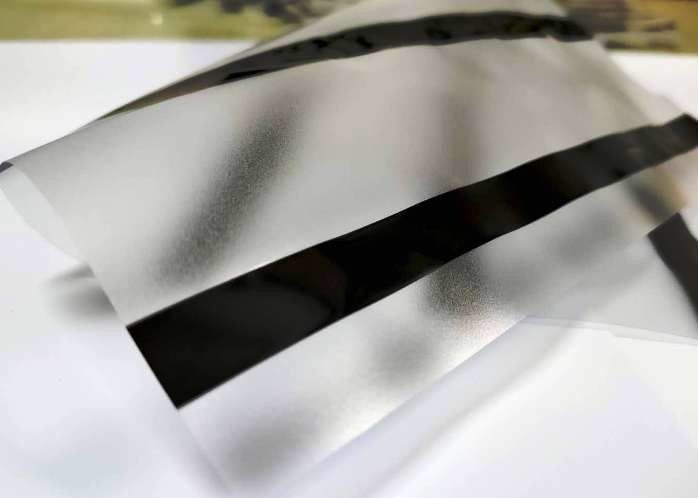

Peelable 300oe 5 Lines Magnetic Stripe Coated Overlay 0



2.Specification of A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production



Detailed Product Description

Coated overlay with magnetic strip hico 2750 oe or loco 360oe , used for card making and laminating ,one side is with magnetic strip,another side for laminating.

1. It has strong adhesive effect

2. it apply to most of the bank card and smart card lamination.
3. Yellow resistance

4. Magnetic strip is not easy to peel off .

Technical Parameters:
1. Size: in sheet, A4, A3 or as per customer requirements

2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3. Magnetic stripe feature: LOCO 300oe, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

5. Package method: 100/200 sheets per bag or as per customer requirements.

7. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.



1 Magnetic stripe LOCO, standard width 12.7mm, black color, Peelable transfer model.
2 Size tolerance +/-0.5 mm in length and width, +/-5% in thickness.
3 Overlay thickness 0.04,0.05,0.06,0.08,0.10mm
4 Package method 100/200 sheets per bag or as per customer requirements

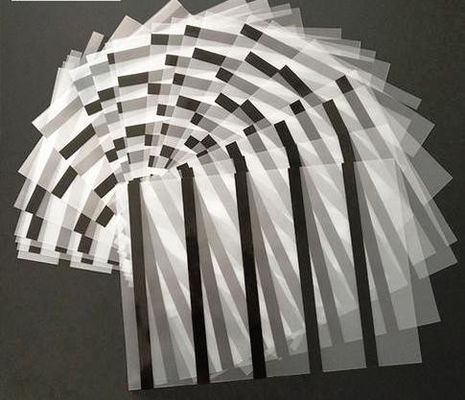

Peelable 300oe 5 Lines Magnetic Stripe Coated Overlay 1

Specifications:

Product name A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production
Common size A4, 210x297mm (A3, customized )
Thickness 0.04mm -1.0 mm
Appearance transparent
Coated glue on back
Laminating temperature 110-150℃
Storage -10~35℃, sealed, moisture-proof
Shelf life 2 years
Packing method 100pcs/bag, 4000pcs/carton




3.Application of A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production



In manufacturing process, it can be directly laminated with PVC printing sheet, which will simplify the fabrication process and save time.

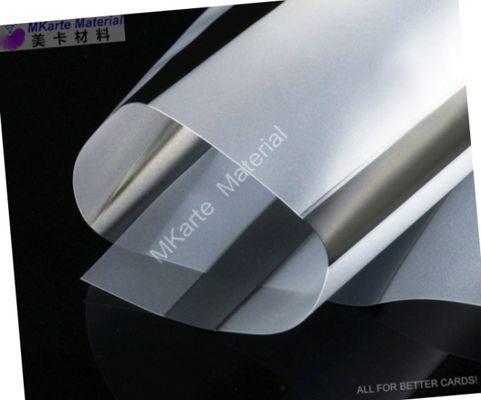

Peelable 300oe 5 Lines Magnetic Stripe Coated Overlay 2

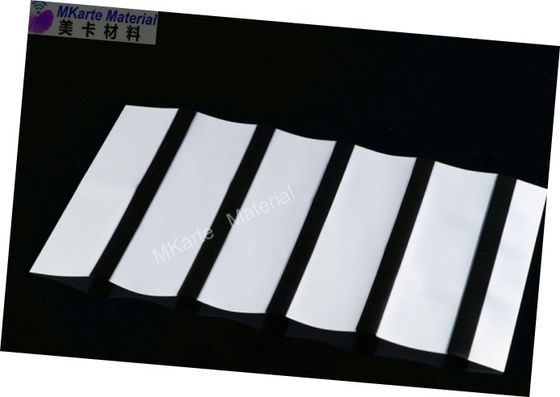

Peelable 300oe 5 Lines Magnetic Stripe Coated Overlay 3



4.Packing of A4 Magnetic Stripe Coated Overlay 5 Lines For Magnetic Strip Card Production

In standard export carton and packed in plywood pallet
Peelable 300oe 5 Lines Magnetic Stripe Coated Overlay 4
