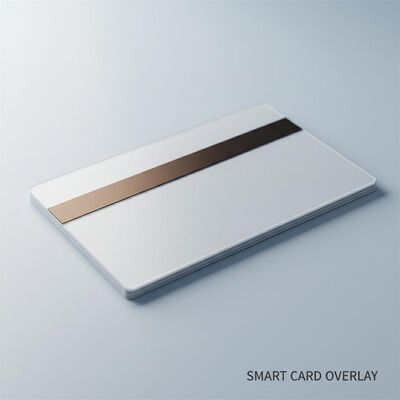

40-100 Micron Thickness Customerized Size HICO/LOCO PVC Coated Overlay With Magnetic Stripe For Smart Card Making
Product Details:
| Place of Origin: | China |
| Brand Name: | MKarte |
| Model Number: | MCO-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000-30000 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By standard export carton and packed in strong plywood pallet with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10- 25 working days |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,D/A,D/P |
| Supply Ability: | 50 tons per Month |
|
Detail Information |
|||
| Thickness Of Overlay: | 40-100 Micron | Size: | Sheet Size Or Roll Size |
|---|---|---|---|
| Classify: | HI_CO 2750OE, LO_CO 360OE | Overlay Type: | Coated Overlay, Uncoated Overlay |
| Technical Note: | In Manufacturing Process, It Can Be Directly Laminated With PVC Printing Sheet, Simplify The Fabrication Process, Save Time, Adhesive Strength Is High. | Brand Of Magnetic Stripe: | LUCKY |
| Highlight: | A4 Size Magnetic Stripe Coated Overlay,HICO/LOCO PVC Coated Overlay,40-100 Micron Thickness Magnetic Stripe Overlay |
||
Product Description
PVC Coated Overlay Magnetic Stripe A4 Size HICO/LOCO For Plastic Card Making
A4 Size HICO/LOCO PVC coated overlay with magnetic strip for professional plastic card manufacturing.
Product Introduction
PVC coated overlay with magnetic stripes (MCO-MS) features standard magnetic stripe technology using high-quality magnetic stripes from LUCKY China. This material can be directly laminated with printing sheets in card laminators before being punched into standard magnetic cards. It offers high adhesion, no color change or deformation, and long aging life after lamination.
Product Specifications
- Size: Available in reels or sheets, A4, A3, or custom sizes
- Coated overlay thickness range: 0.04mm, 0.05mm, 0.06mm, 0.08mm, 0.10mm

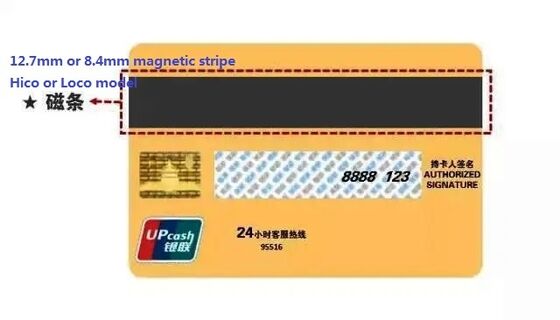

- Magnetic stripe: HICO/LOCO, standard width 12.7mm, black color, peelable transfer model, LUCKY brand
- Size tolerance: ±0.5mm in length/width, ±5% in thickness
- Color: Transparent with one-side glue coating
- Sheet dimensions: 210*297mm (A4), 295*480mm (A3) or custom sizes (±1mm tolerance)
- Packaging: 500 sheets per bag, 50 bags per carton, palletized
- Storage: Sealed, moisture-proof, room temperature below 40℃, horizontal storage, avoid heavy pressure and direct sunlight
| Product Name | A4 Size Black Magnetic Stripes Coated Overlay Sheet For Plastic Card Lamination |
|---|---|
| Common Size | A4, 310*480mm (A3, customized) |
| Thickness | 0.04mm - 1.0mm |
| Appearance | Transparent |
| Coated | Glue on back |
| Laminating Temperature | 110-150℃ |
| Storage | -10~35℃, sealed, moisture-proof |
| Shelf Life | 2 years |
| Packing Method | 100pcs/bag, 4000pcs/carton |
Product Parameters
| Model Number | MCO-MS |
|---|---|
| Thickness | 0.04mm, 0.05mm, 0.06mm, 0.08mm, 0.10mm |
| Common Size | Sheet size or Roll size, any custom size available |
| Color | Clear (Transparent) |
| Glue Coated | Yes |
| Application | Magnetic Strip Card Making |
| Type | Heat Press |
| Advantages | Waterproof, Moistureproof, Customized Layout |
| Packaging Method | Standard export carton with strong plywood pallet and proper soft protection material, suitable for long-distance sea or air transport |
Application Process
Magnetic Stripe PVC Film can be directly laminated with PVC printing sheets, simplifying the fabrication process and saving time.
Card Manufacturing Steps
- Place printing core and two overlays together, then insert into the laminator (ensure all glue sides of both PVC sheets and overlays face inward)
- Lamination process: 10-15 minutes at 6-8Mpa, 125-140℃
- Cutting to final card dimensions
Packaging
Packaged in standard export cartons and secured on plywood pallets for safe transportation.
