High Adhesion 0.10mm A3 210x297 Black Stripes Coated Overlay Sheet

High Adhesion 0.10mm A3 210x297 Black Stripes Coated Overlay Sheet

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-MS-LOCO

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets
Price: Negotiable
Packaging Details: 100/200 sheets per bag or as per customer requirements.
Delivery Time: 10-20working days
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 6 million square meters per month
Get Best Price Contact Now

Detail Information

Common Size: By Sheet, A4, A3 Or Custom-made Thickness: 0.04,0.05,0.06,0.08,0.10mm
Normal Color: Transparent With One-side Glue Coating. Applied Magnetic Stripe: LOCO 300oe, Standard Width 12.7mm, Black Color, Peelable Transfer Model, Brand: LUCKY
Packaging: 100/200 Sheets Per Bag Or As Per Customer Requirements. Port: Shanghai Port Or Other Chinese Port
High Light:

A3 Stripes Coated Overlay Sheet

,

0.10mm Stripes Coated Overlay Sheet

,

210x297 pvc overlay sheet

Product Description

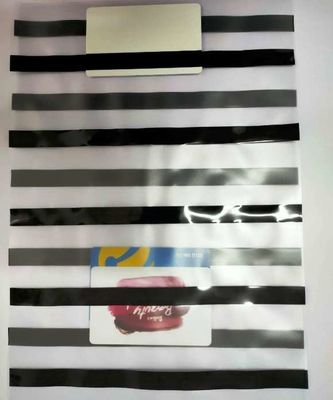

A3 Magnetic Stripe Coated Overlay Card 0.10mm Adhesion PVC Sheet For Magnetic Strip Card



1. Introduction of A3 Magnetic Stripe Coated Overlay Card 0.10mm Adhesion PVC Sheet For Magnetic Strip Card



A3 PVC Magnetic Stripes Coated Overlay Sheet is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking , and cuts down the waste rate in production.

Using method: cover the printed plastic sheets and then laminate together.

It is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.

Steps to make cards:

1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .

2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.

3. Cutting the card.

1 Magnetic stripe LOCO, standard width 12.7mm, black color, Peelable transfer model.
2 Size tolerance +/-0.5 mm in length and width, +/-5% in thickness.
3 Overlay thickness 0.04,0.05,0.06,0.08,0.10mm
4 Package method 100/200 sheets per bag or as per customer requirements

High Adhesion 0.10mm A3 210x297 Black Stripes Coated Overlay Sheet 0



2. Specification of A3 Magnetic Stripe Coated Overlay Card 0.10mm Adhesion PVC Sheet For Magnetic Strip Card

Thickness of overlay: 40-100 Micron

Size: Sheet size or Roll size

Classify: HI_CO 2750OE, LO_CO 300OE

Overlay Type: Coated Overlay, Uncoated Overlay

Magnetic stripe: Lucky or customized.

Technical note: In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.

Specifications:

Product name A3 Magnetic Stripe Coated Overlay Card 0.10mm Adhesion PVC Sheet For Magnetic Strip Card
Common size A4, 210x297mm (A3, customized )
Thickness 0.04mm -1.0 mm
Appearance transparent
Coated glue on back
Laminating temperature 110-150℃
Storage -10~35℃, sealed, moisture-proof
Shelf life 2 years
Packing method 100pcs/bag, 4000pcs/carton


1). Size: in sheet, A4, A3 or as per customer requirements

2). Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3).Magnetic stripe feature: LOCO 300oe, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4). Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

5).Package method: 100/200 sheets per bag or as per customer requirements.

6). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

High Adhesion 0.10mm A3 210x297 Black Stripes Coated Overlay Sheet 1



3. Application of A3 Magnetic Stripe Coated Overlay Card 0.10mm Adhesion PVC Sheet For Magnetic Strip Card


In manufacturing process, Magnetic Stripe PVC Film can be directly laminated with PVC printing sheet, simplify the fabrication process to save time.

High Adhesion 0.10mm A3 210x297 Black Stripes Coated Overlay Sheet 2



4. Packing of A3 Magnetic Stripe Coated Overlay Card 0.10mm Adhesion PVC Sheet For Magnetic Strip Card



In standard export carton and packed in plywood pallet

High Adhesion 0.10mm A3 210x297 Black Stripes Coated Overlay Sheet 3
