0.6mm / 0.8mm Thickness PVC Card Material Ultra Glossy Stainless Steel Plates used for PVC card lamination
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | USD 4.5-16 per sheet or negotiable |
| Packaging Details: | plywood box with soft protection material inside |
| Delivery Time: | 10-20working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, , D/P |
| Supply Ability: | 30 thousand pieces per month |
|
Detail Information |
|||
| Material: | Ultra Glossy Stainless Steel Plates | Surface Finish: | Ultra Glossy / Mirror Finish On Both Sides |
|---|---|---|---|
| Thickness: | 0.6mm Or 0.8mm | Dimension Tolerance: | ±1mm For Length And Width. |
| Surface Roughness: | Ultra Glossy Plate (Ra＜0.03μm) | Thermal Transmission: | 0.04cal/℃.cm.sec At 20℃ |
| Glossy Plate Surface Glossiness: | Over 800 GU At 20° (both Sides) | Packaging Box: | Solid Plywood Carton With Soft Cushion Protection Inside. |
| High Light: | pvc id card material,plastic card material |
||
Product Description

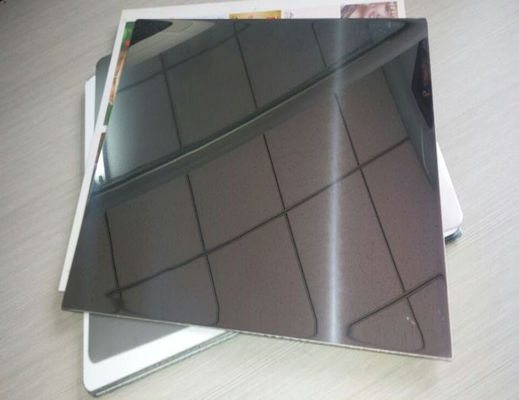

Ultra Glossy Card Lamination Steel Plate- PVC Card Material Used in PVC Card Laminator
1.Ultra Glossy Card Lamination Steel Plate- PVC Card Material Introduction:
Ultra Glossy Card Lamination Steel Plate- PVC Card Material MSP-G are used for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
Key Features:

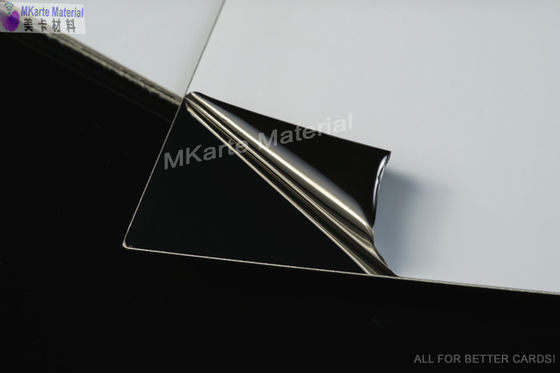

1). The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2). Two sides are made glossy in the same quality.
3). There are no scratches, dents, stripes shadows and dust on plate surfaces.

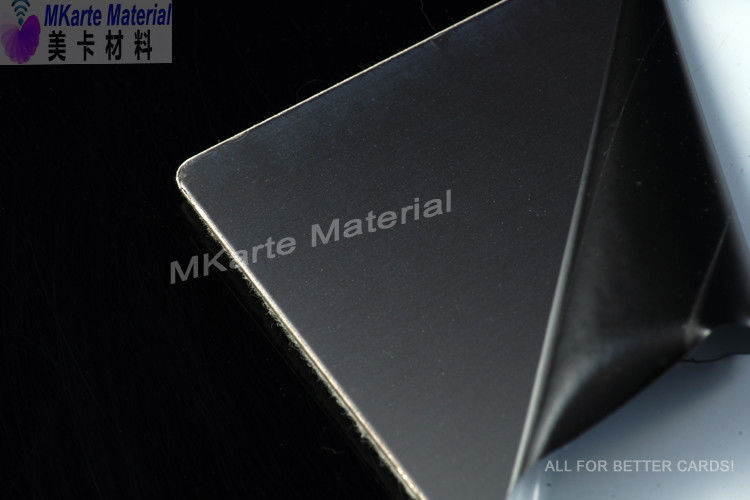

4). The edges are smooth and deburred with the round curved corners.
5). After lamination, the plates are not sticking to the laminated plastic sheets.
2.Ultra Glossy Card Lamination Steel Plate- PVC Card Material Parameters:
Technical Parameters:
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm
Surface roughness: Glossy plate (Ra＜0.03μm)
Glossy plate surface glossiness: over 800 GU at 20° (both sides)
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
| surface roughtness Ra value | Ra＜0.03μm |
| Thickness range | 600 or 800 micron |
| Dimension tolerance | ±1mm |
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Glossy plate surface glossiness | over 800 GU at 20° (both sides) |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Edge state | smooth and deburred with the round curved corners |
| Packaging box | solid plywood carton with soft cushion protection inside. |
3.Ultra Glossy Card Lamination Steel Plate- PVC Card Material Application
Steel plate based in good raw material, use the advae of good conducting of heat, resisting pressure, high quality mirror. By our steel plates you can produce the international standard card.
We have 7 kinds of steel plates finish,for different lamination purpose:
1).Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2).Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3).High matte steel
Platoon lights on the surface,too coarse for planographic code.
4).Moderate coarse/ middle matte steel plates
no lights on the surface,moderate coarse.
5).Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and inkjet code.
6).Pattern steel plate
Kinds of patterns for personalization cards lamination
7).Silk steel plate
For personalization card laminations
Features:
1.Card laminator Accessories ,High-grade stainless stee
2.800 Micron thickness
3.Characteristic: heat-resistant, high elasticity
Used in Laminator
4.Ultra Glossy Card Lamination Steel Plate- PVC Card Material Packing
Wood Tree Texture Double Side Laminating Steel Plate for Card Making / Stainless Steel Plate Press on Cards in standard export wooden case
