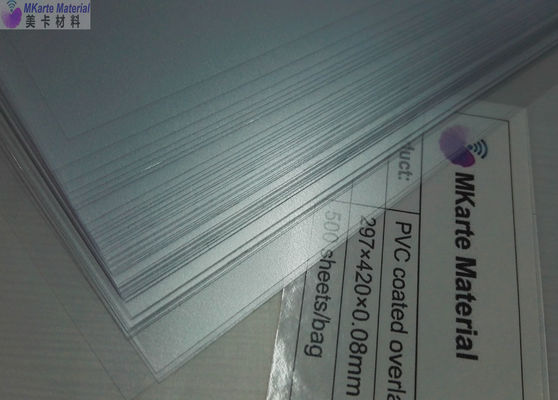

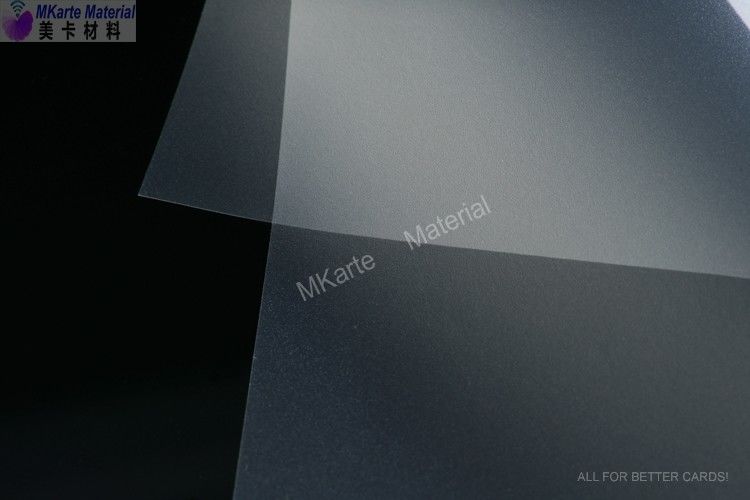

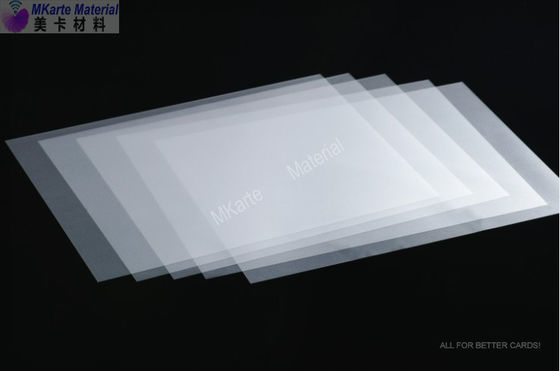

0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material

0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-G1

Payment & Shipping Terms:

Minimum Order Quantity: 30000 sheets or 2 tons
Price: Negotiable
Packaging Details: by reel or 500 sheets per bag / 4-8 bags per paper carton , as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet
Delivery Time: 10-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4 million tons per month
Get Best Price Contact Now

Detail Information

Surface: Clean And Flatness Dimensional Tolerance (mm): ±1
Shelf Life: One Year Feature: Excellent Stable Quality
Density: 1.26 ±0.04 G/cm3 Color: Transparent With One-side Glue Coating
High Light:

A3 Size PVC Coated Overlay

,

0.08mm PVC Coated Overlay

,

PVC Card Body Coated Overlay

Product Description

0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material



1.Introduction of 0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material

PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers. It features high adhesion, no color change and deformation.
It is applicable to almost all sheets printed by various ink. It features excellent peeling strength and long aging time.

it is developed specially for Inkjet printer Ink. It’s suitable for laminating with the sheets which printed by whole series of Inkjet presses. It provides excellent peel strength and no deformation or color change after lamination.

Using Method

Laminate with Inkjet printed sheet directly.

Characteristics:

1. Excellent stable quality

2. Special formulation according to each client's requirement

3. Exact sheet size cutting and thickness control

4. Low dust

5. Low static

6. Adjustable Vicat degree

7. Less than15 days Short Lead Time

8. Perfect packaging for transportation

9. Best after sell service

0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material 0



2.Parameters of 0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material

Item Parameters
Surface Clean and flatness
Dimensional Tolerance (mm) ±1
Angle Cut Tolerance (mm) ±1
Diagonal Difference (mm) ≤1
Thickness Tolerance (mm) ±10%
Vicat (℃) 72±2
Shrinkage MD ≥ - 40%
TD ≤15%
Tensile Strength (MPa) MD ≥35
TD ≥35

* Customers' design can be accepted.

0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material 1



3.More Description of 0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material

A.Detailed Product Description

1).Thickness Range: 0.04-0.10MM
2).Finish: Matt
3).Size: Customized Roll size or Sheet size
4).High initial stick

B.Manufacture Method

1). Put printing core and two overlay together, then put into the laminator, the temperature is determined as per the instruction of the machine , Pls be noticed that all glue sides of both pvc sheets and overlay are put inward.

2). The lamination usually lasts 10-15minutes ,The pressure is 6-8Mpa, The temperature is 120-140°C

3). Cut the card

Product model Product name Thickness Range mm Color Vicat ℃ dynes/cm Apparent density g/cm3 Peel strength N/cm Main application
PVC coated overlay

General coated overlay



0.04~0.10 Transparent 72-76 34~44 1.12~1.30 / It is mainly used for various magnetic stripe cards, phone cards, membership cards and other PVC cards, adhesive force is more than 3.5N. .

0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material 2

0.08mm A3 Size PVC Coated Overlay For PVC Card Body Material 3
