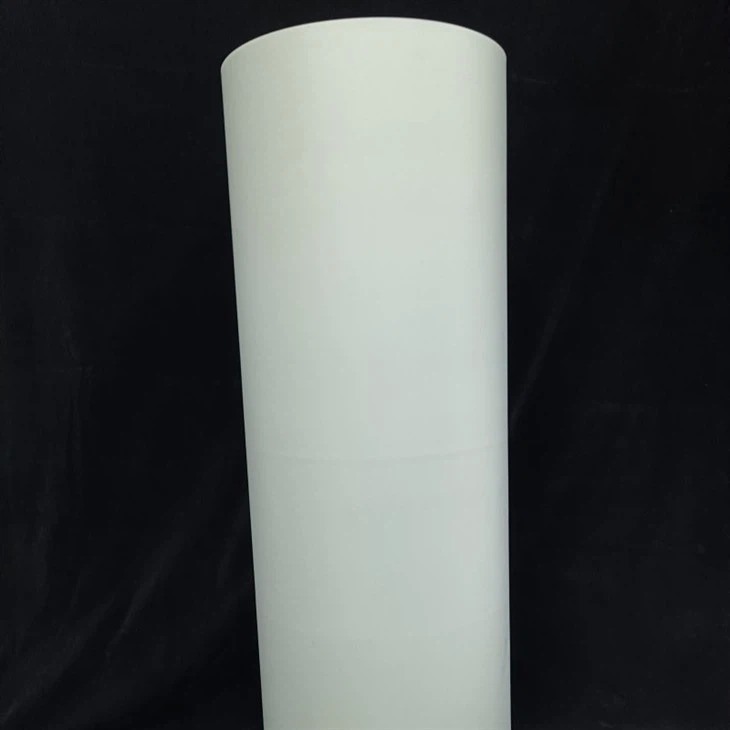

Heat-Resistant, Deformation-Free,Resistant To Wet Heat Aging And High Tensile Strength PET Offset Printing Sheet M-PET-OP
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | M-PET-OP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10000 sheets |
|---|---|
| Price: | negotiatable based on quantity |
| Packaging Details: | packaged on plywood pallet |
| Delivery Time: | 20-25days after getting prepayment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 800k sheets per month |
|
Detail Information |
|||
| Material: | PET | Thickness:: | 0.075-0.25 Mm |
|---|---|---|---|
| Length/Width Tolerance (mm): | ±1 | Flatness (mm/m): | ≤1.2 |
| Heat Shrinkage Rate (150°C/30 Min): | MD/TD ≤ 0.8% | Tensile Strength (MPa): | MD/TD ≥ 80 |
| Lamination Process Parameters: | Hot Pressing + Cold Pressing / Temperature (°C) 110~130 / Time (min): 20 / 30 | Color: | White |
| Highlight: | Heat-resistant PET offset printing sheet,Deformation-free smart card material,High tensile strength M-PET-OP |
||
Product Description
Heat-Resistant, Deformation-Free, Resistant To Wet Heat Aging And High Tensile Strength PET Offset Printing Sheet M-PET-OP
Product Description
PET printing sheet for PET card, PET card printing sheet/PET card sheet printed by offset press or silkscreen printer
Introduction
PET Offset Printing Sheet M-PET-OP is the high-end PET card body production material, and it is made specially for offset printer and silk screen printer use. They are well accepted and massively used by many card factories worldwide. It can be laminated with the middle core sheet (PVC or PET) and the coated overlay (PVC or PET). It has the direction matching requirement in the process of bonding and lamination.
| Material | PET |
|---|---|
| Thickness | 0.075-0.25 mm |
| Length/Width Tolerance (mm) | ±1 |
| Flatness (mm/m) | ≤1.2 |
| Heat shrinkage rate (150°C/30 min) | MD/TD ≤ 0.8% |
| Tensile strength (MPa) | MD/TD ≥ 80 |
| Lamination Process Parameters | Hot Pressing + Cold Pressing / Temperature (°C) 110~130 / Time (min): 20 / 30 |
| Color | White |
Key Features of PET Sheets
- Suitable for the whole series of offset press and silk screen printer
- High definition images
- Excellent ink adhesion with strong peeling strength after lamination
- Exhibits excellent adhesion performance with middle core materials and adhesive films (coated overlay)
- The PET substrate is heat-resistant, deformation-free, and resistant to wet heat aging
- Environmental attributes: solvent-free and zero waste gas emissions
Technical Parameters of PET Sheet
- Thickness: 0.075-0.25 mm
- Length/Width Tolerance (mm): ±1
- Flatness (mm/m): ≤1.2
- Heat shrinkage rate (150°C/30 min): MD/TD ≤ 0.8%
- Tensile strength (MPa): MD/TD ≥ 80
- Lamination Process Parameters: Hot Pressing + Cold Pressing / Temperature (°C) 110~130 / Time (min): 20 / 30
Application
PET Offset Printing Sheet M-PET-OP is also known or named as PET printing sheet for PET card, PET card printing sheet or PET card sheet printed by offset press or silkscreen printer.
