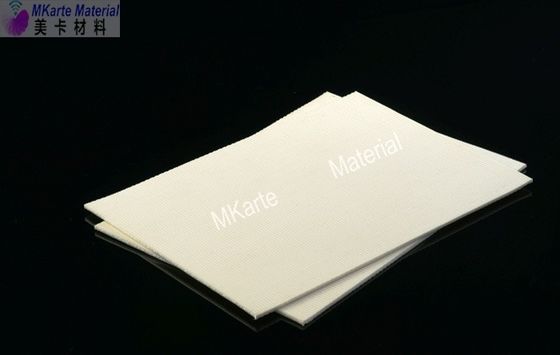

White Laminated Pad PVC Card Material With Good Cushioning Performance
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MRP-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 10000 Square Meters per Month |
|
Detail Information |
|||
| Facing Material: | Polyester / Cotton | Middle Material: | Black Silica Gel |
|---|---|---|---|
| Heat-resistant T (℃): | 200 | Shape: | In Sheet , A3, A4 Or Other |
| Tensile Strength & Adhesion: | 80 N/mm | Rigidity: | 55±5 |
| Length And Width: | A4, A3 Or Custom-made Size (size Tolerance: ±1mm) | Color: | White |
| High Light: | pvc id card material,plastic card material |
||
Product Description
White Laminated Pad For Plastic PVC Card Material Making , Works With Lamination Steel Plate
Production Specification
| 1. White Laminated Pad For Plastic PVC Card Material Making Introduction |
White Laminated Pad is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .

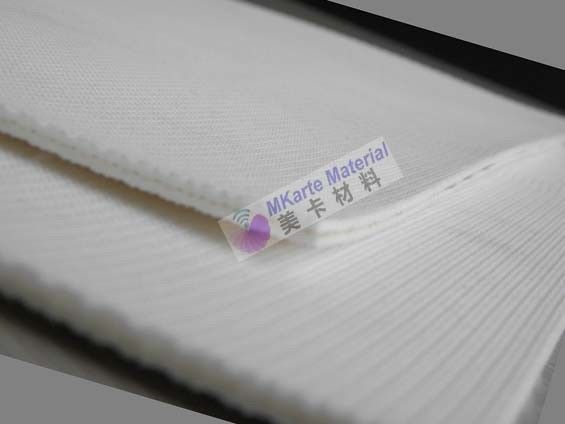

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .
White Laminated Pad is suitable for manufacturing kinds of ISO standard cards, ID cards and smart cards. Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process, as the professional card consumables, they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform. Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface, greatly improved the qualification rate of products, and with good cushioning properties, they can avoid the scratches linked to the hard touching between the heating plate and the trays, benefited to the long using life of above both.
| 2. White Laminated Pad For Plastic PVC Card Material Making Specification |
Key Features:
1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .
2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .
3. It has good performance of high temperature resistance and excellent elastic resilience .
4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .
Product Parameter :
1. Heatproof performance: 200℃
2. Tensile strength: 80 N/mm
3. Adhesion: 80 N/mm
4. Hardness SHORE A: 55±5
5. Thickness: 3mm
6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)
| Facing material | High-temperature endurable felt |
| Middle material | Black silica gel |
| Rigidity | 50±5 |
| Tensile strength(N/mm) | 60 |
| Adhesion N/mm | 4.5 |
| Heat-resistant t (℃) | 200 |
| Color | White |
Detailed Product Description
(1) Silicon rubber cushion
(2) High tensile strength and tearing strength,
(3) Long service life,
(4) Heat resistant up to 250
(5) Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .
(6) Product specification: 1) thickness: 1.5- 3.5mm 2) maximum width: 3800mm with no joint 3) any length 4) color: white
The technical index:
| Model number | MRP-1 |
| Thickness | 1.5- 3.5mm (Thickness tolerance: ±0.05mm) |
| Pad size | in sheet, A3, A4 or custom-made size |
| Breaking strength | 80 Mpa |
| Hardness SHORE A | 55±5 |
| Adhesive force N/mm | 2.5 |
| Breaking extensibility | 350 |
| Packaging box |
Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| 3. Application of White Laminated Pad For Plastic PVC Card Material Making |
| 4. Packing of White Laminated Pad For Plastic PVC Card Material Making |
