PVC Coated Overlay Magnetic Stripe A4 Size HICO/ LOCO For Plastic Card Making
Product Details:
| Place of Origin: | China |
| Brand Name: | MKarte |
| Model Number: | MCO-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000-30000 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By standard export carton and packed in strong plywood pallet with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10- 25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 50 tons per Month |
|
Detail Information |
|||
| Thickness Of Overlay: | 40-100 Micron | Size: | Sheet Size Or Roll Size |
|---|---|---|---|
| Classify: | HI_CO 2750OE, LO_CO 360OE | Overlay Type: | Coated Overlay, Uncoated Overlay |
| Technical Note: | In Manufacturing Process, It Can Be Directly Laminated With PVC Printing Sheet, Simplify The Fabrication Process, Save Time, Adhesive Strength Is High. | Brand Of Magnetic Stripe: | LUCKY |
| High Light: | abrasion resistant overlay,clear overlay sheets |
||
Product Description

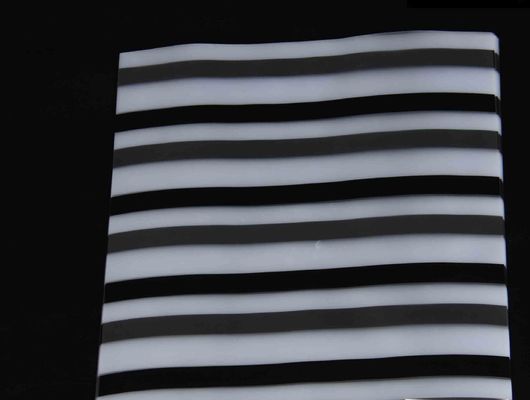

A4 Size HICO/ LOCO PVC coated overlay with Mag. strip For Plastic Card making
Production Specification
| 1. PVC coated overlay with Mag. strip- Introduction |
PVC coated overlay with magnetic stripes MCO-MS is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.
| 2.PVC coated overlay with Mag. strip- Specification |
1).Size: by reel or by sheet, A4, A3 or as per customer requirements
2). Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3). Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4). Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5). Color : transparent with one-side glue coating
6). Length and width: in sheet, 210*297 mm ( A4 ) , 295*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)
7). Package method: 500 sheets a bag, 50 bags one carton , packed in Pallets
8). Storage condition: Sealed, moisture-proof, room temperature under
Specifications:
| Product name | A4 Size Black Magnetic Stripes Coated Overlay Sheet For Plastic Card Lamination |
| Common size | A4, 310x480mm (A3, customized ) |
| Thickness | 0.04mm -1.0 mm |
| Appearance | transparent |
| Coated | glue on back |
| Laminating temperature | 110-150℃ |
| Storage | -10~35℃, sealed, moisture-proof |
| Shelf life | 2 years |
| Packing method | 100pcs/bag, 4000pcs/carton |
| 3. PVC coated overlay with Mag. strip- Product Parameter |
Thickness of overlay: 40-100 Micron
Size: Sheet size or Roll size
Classify: HI_CO 2750OE, LO_CO 360OE
Overlay Type: Coated Overlay, Uncoated Overlay
Magnetic stripe: Lucky or customized.
Technical note: In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.
The technical Parameters:
| Model number | MCO-MS |
| Thickness | 0.04 mm,0.05mm,0.06mm ,0.08mm ,0.10mm |
| Common Size | Sheet size or Roll size, any size as your requirement |
| Color | Clear (Transparent) |
| Glue Coated | Yes |
| Application | Magnetic strip Card Making |
| Type | Heat press |
| Advae | Waterproof, Moistureproof, Customized layout |
| Packaging method |
By standard export carton and packed in strong plywood pallet with proper soft protection material inside, suitable for long distance for sea or air transport |

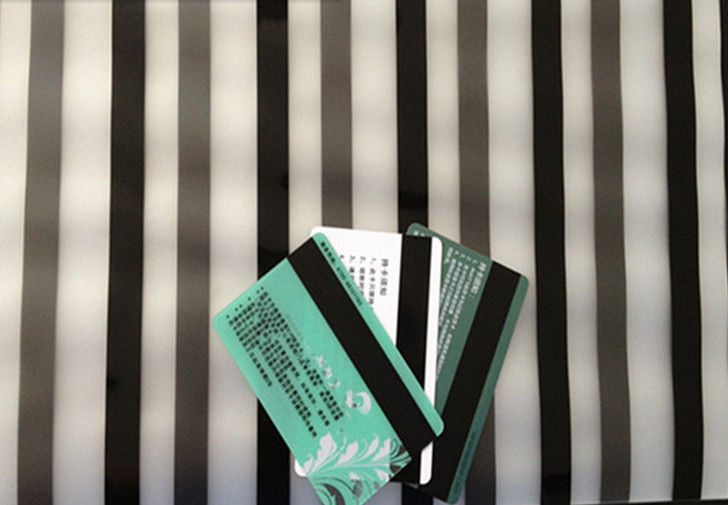

| 4.PVC coated overlay with Mag. strip- Application |
In manufacturing process, Magnetic Stripe PVC Film can be directly laminated with PVC printing sheet, simplify the fabrication process to save time.
Steps to make cards:
1.Put printing core and two overlays together, then put into the laminator.
(The laminating temperature and time is determined as per the instruction of the machine). Please be noticed that all glue sides of both PVC sheets and overlays are put inward.
2.Lamination lasts 10-15 minutes (6-8Mpa 125-140℃).
3.Cutting.

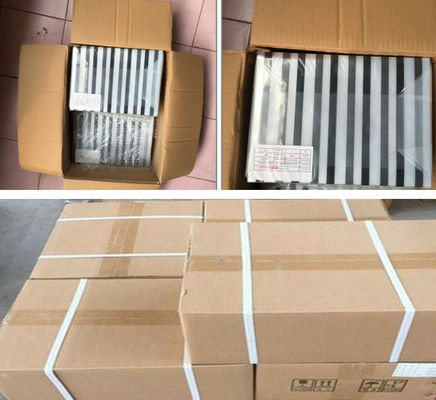

| 5.PVC coated overlay with Mag. strip- Packing |
In standard export carton and packed in plywood pallet
