PVC Coated Overlay Magnetic Stripe Coated Film For Standard Magnetic Stripe
Product Details:
| Place of Origin: | China |
| Brand Name: | MK/LUCKY |
| Certification: | ISO 9001 |
| Model Number: | MCO-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 200 sheets per PE bags which are loaded in export carton, suitable for long distance for sea or air transport |
| Delivery Time: | 10- 20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P, Western Union |
| Supply Ability: | 1 million sheets per month |
|
Detail Information |
|||
| Normal Size: | A4 , A3 Or Custom-made Size | Thickness In Mm: | 0.04，0.05，0.06，0.08，0.10 |
|---|---|---|---|
| Magnetic Stripe Feature: | HICO/LOCO, Standard Width 12.7mm, Black Color, Peelable Transfer Model | Size Tolerance: | +/-0.5 Mm In Length And Width, +/-5% In Thickness |
| Color: | Transparent With One-side Glue Coating | Package Method: | In Standard Export Carton: 100/200 Sheets Per Bag Or As Per Customer Requirements |
| High Light: | abrasion resistant overlay,clear overlay sheets |
||
Product Description

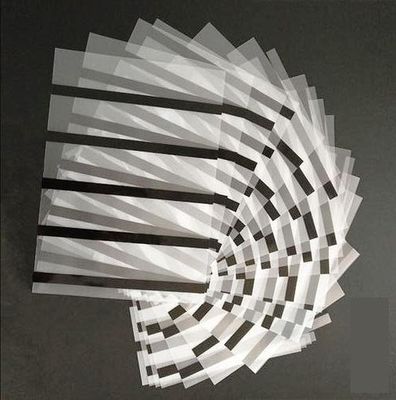

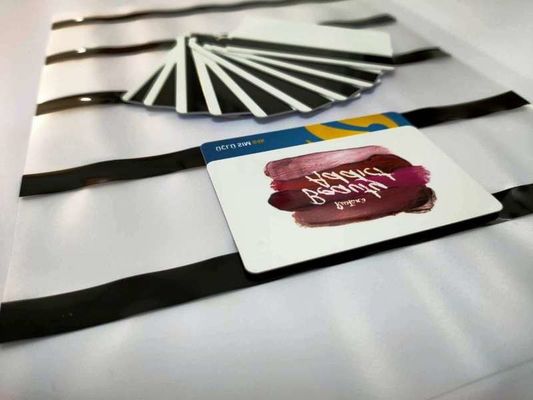

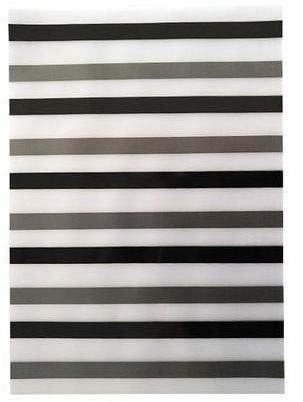

PVC Coated Overlay or Film applied with Standard Magnetic Stripe for Magnetic Card Production Purpose
Production Specification
| 1. Introduction of PVC Coated Overlay or Film applied with Standard Magnetic Stripe for Magnetic Card Production Purpose |
Magnetic Stripes Coated Overlay PVC Sheet MCO-MS is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China . It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion , no color change and deformation with long aging life after the process of lamination .
Magnetic Stripes Coated Overlay PVC Sheet is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.
Steps to make cards:
1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .
2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.
3. Cutting the card.
Technical Note :
In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.
| 2. Specification of PVC Coated Overlay or Film applied with Standard Magnetic Stripe for Magnetic Card Production Purpose |
Product Parameter :
1.Size: in sheet, A4, A3 or as per customer requirements
2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5. Color : transparent with one-side glue coating
Detailed Product Description
Specifications:
| Lamination Temperature | 120-140 ℃ |
| Thickness of overlay | 0.04~0.1mm |
| Size | Sheet size or Roll size, any size as your requirement |
| Classify | HICO 2750OE, LOCO 360OE |
| Color | Clear (Transparent) |
| Glue Coated | YES |
| 3. Application of PVC Coated Overlay or Film applied with Standard Magnetic Stripe for Magnetic Card Production Purpose |
In manufacturing process, it can be directly laminated with PVC printing sheets to make the magnetic cards in a more efficient way.
| 4. Packing ofof PVC Coated Overlay or Film applied with Standard Magnetic Stripe for Magnetic Card Production Purpose |
