PVC Coated Overlay LOCO Magnetic Stripe Coated Film For ID Card

PVC Coated Overlay LOCO Magnetic Stripe Coated Film For ID Card

Product Details:

Place of Origin: China
Brand Name: MK/LUCKY
Certification: ISO 9001
Model Number: MCO-MS-LOC

Payment & Shipping Terms:

Minimum Order Quantity: 20000 Sheets
Price: Negotiable
Packaging Details: 100 or 200 sheets per PE bags which are loaded in export carton, suitable for long distance for sea or air transport
Delivery Time: 10- 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1 million sheets per month
Get Best Price Contact Now

Detail Information

Normal Size: A4 , A3 Or Custom-made Size Thickness In Mm: 0.04,0.05,0.06,0.08,0.10 Or Customized
Magnetic Stripe Feature: LOCO 300oe, Standard Width 12.7mm, Black Color, Peelable Transfer Model Size Tolerance: +/-0.5 Mm In Length And Width, +/-5% In Thickness
Color: Transparent With One-side Glue Coating Package Method: 100/200 Sheets Per Bag Or As Per Customer Requirements
High Light:

abrasion resistant overlay

,

a4 coloured overlays

Product Description

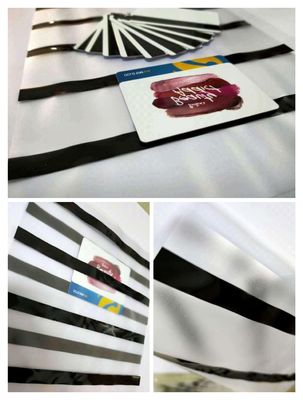

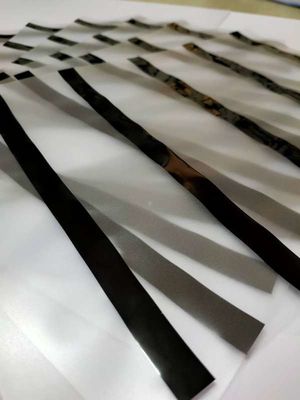

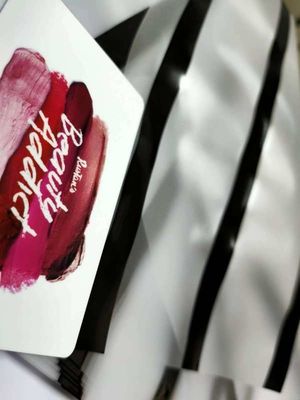

PVC Coated Overlay or Film applied with LOCO Magnetic Stripe for Magnetic Card Production Purpose​


Production Specification

1.   Introduction of  PVC Coated Overlay or Film applied with LOCO Magnetic Stripe for Magnetic Card Production Purpose

LOCO Magnetic Stripes Coated Overlay PVC Sheet MCO-MS is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China . It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion , no color change and deformation with long aging life after the process of lamination .

LOCO Magnetic Stripes Coated Overlay PVC Sheet is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.

Steps to make cards:

1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .

2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.

3. Cutting the card.

Technical Note :

In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.



2.  Specification of PVC Coated Overlay or Film applied with LOCO Magnetic Stripe for Magnetic Card Production Purpose


Product Parameter :
1.Size: in sheet, A4, A3 or as per customer requirements
2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10 or customized
3. Magnetic stripe feature: LOCO 300oe, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5. Color : transparent with one-side glue coating

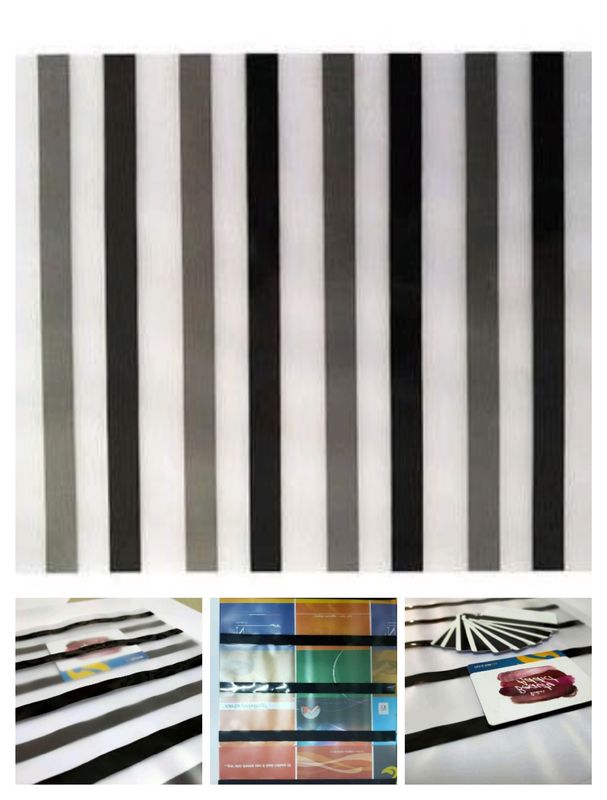

3. Application of PVC Coated Overlay or Film applied with LOCO Magnetic Stripe for Magnetic Card Production Purpose


In manufacturing process, it can be directly laminated with PVC printing sheets to make the magnetic cards in a more efficient way.

PVC Coated Overlay LOCO Magnetic Stripe Coated Film For ID Card 0





4. Packaging of PVC Coated Overlay or Film applied with LOCO Magnetic Stripe for Magnetic Card Production Purpose


 PVC Coated Overlay LOCO Magnetic Stripe Coated Film For ID Card 1
