PVC Coated Overlay Lucky Mag Stripe HICO/LOCO For Card Magnetic Stripe Laying Machine

PVC Coated Overlay Lucky Mag Stripe HICO/LOCO For Card Magnetic Stripe Laying Machine

Product Details:

Place of Origin: China
Brand Name: MK/LUCKY
Certification: ISO 9001
Model Number: MCO-MS-LOCO/HICO

Payment & Shipping Terms:

Minimum Order Quantity: 20000 Sheets
Price: Negotiable
Packaging Details: 100 or 200 sheets per PE bags which are loaded in export carton, suitable for long distance for sea or air transport
Delivery Time: 10- 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 1 million sheets per month
Get Best Price Contact Now

Detail Information

Thickness Tolerance: +/-5% In Thickness Thickness: 0.04-0.10 Mm Or Customized
Magnetic Stripe Feature: LOCO 300oe, Standard Width 12.7mm, Black Color, Peelable Transfer Model Size Tolerance: +/-0.5 Mm In Length And Width,
Storage Condition: Sealed, Moisture-proof, Room Temperature Under 40℃, Keep It Horizontally, Avoid Heavy Pressing And Direct Sunlight Package Method: 100/200 Sheets Per Bag Or As Per Customer Requirements
High Light:

clear overlay sheets

,

a4 coloured overlays

Product Description

PVC Coated Overlay with Lucky Mag Stripe HICO/LOCO maked by Card Magnetic Stripe laying machine


Production Specification

1. PVC Coated Overlay with Mag Stripe -  Introduction

PVC coated overlay with magnetic stripes MCO-MS is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.

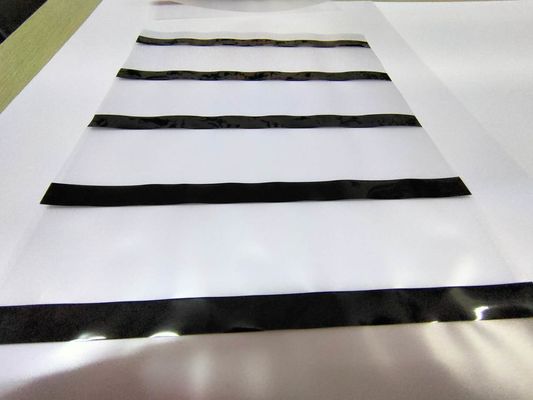

PVC Coated Overlay Lucky Mag Stripe HICO/LOCO For Card Magnetic Stripe Laying Machine 0

Technical Note :

In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.

Thickness of overlay: 40-100 Micron

Size: Sheet size or Roll size

Classify: HI_CO 2750OE, LO_CO 360OE

Overlay Type: Coated Overlay, Uncoated Overlay

Magnetic stripe:  Lucky or customized.



2. PVC Coated Overlay with Mag Stripe -  Specification


Product Parameter :
1.Size: in sheet, A4, A3 or as per customer requirements
2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10 or customized
3. Magnetic stripe feature: LOCO 300oe, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5. Color : transparent with one-side glue coating

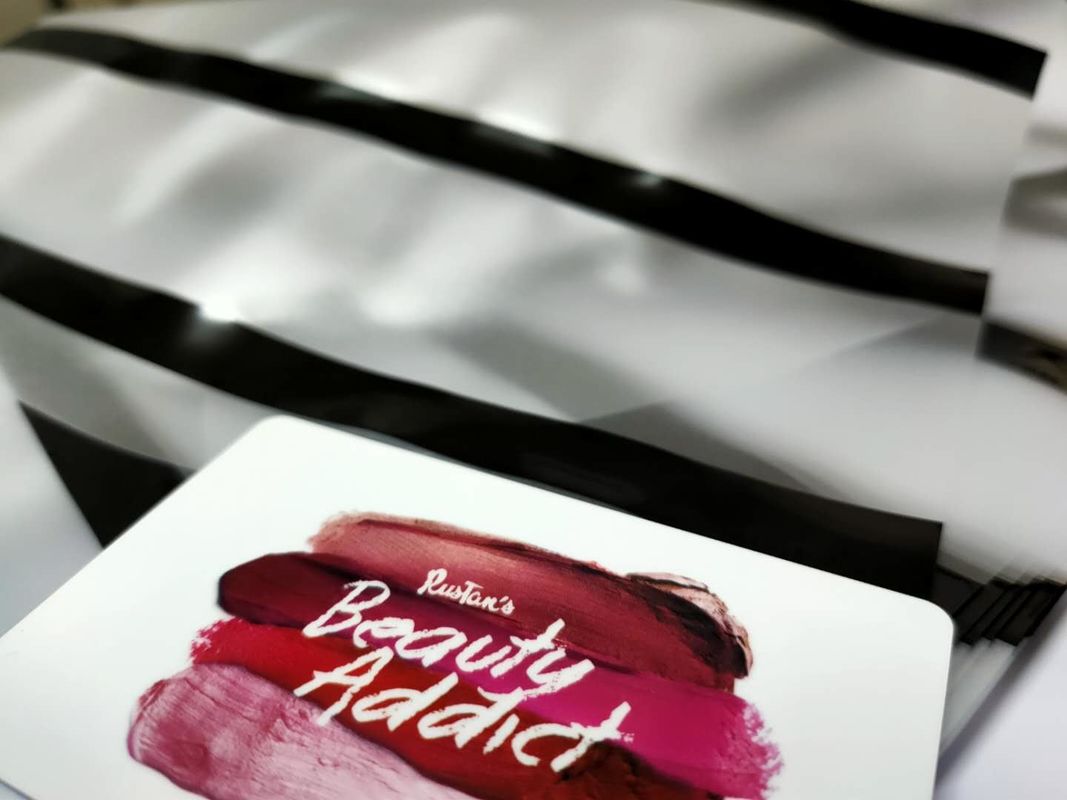

PVC Coated Overlay Lucky Mag Stripe HICO/LOCO For Card Magnetic Stripe Laying Machine 1

Technical Parameters:
1. Size: in sheet, A4, A3 or as per customer requirements

2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

5. Color: transparent with one-side glue coating.

6. Package method: 100/200 sheets per bag or as per customer requirements.

7. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.



3.PVC Coated Overlay with Mag Stripe - Application


In manufacturing process, it can be directly laminated with PVC printing sheets to make the magnetic cards in a more efficient way.

Steps to make cards:

1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .

2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.

3. Cutting the card.

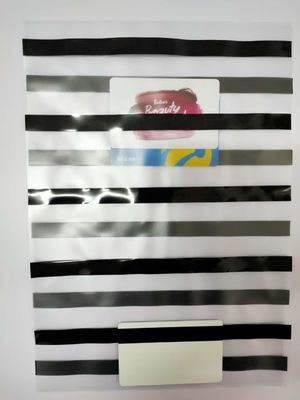

PVC Coated Overlay Lucky Mag Stripe HICO/LOCO For Card Magnetic Stripe Laying Machine 2


Technical Items:

Size A4, A3 or as per customer requirements
Coated overlay thickness range in mm 0.04,0.05,0.06,0.08,0.10
Magnetic stripe feature HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
Size tolerance +/-0.5 mm in length and width, +/-5% in thickness.
Color transparent with one-side glue coating
Package method 100/200 sheets per bag or as per customer requirements
Storage condition Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.





4. PVC Coated Overlay with Mag Stripe Packaging

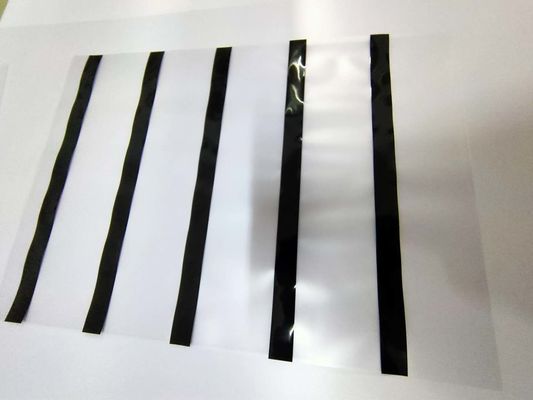

 PVC Coated Overlay Lucky Mag Stripe HICO/LOCO For Card Magnetic Stripe Laying Machine 3
