Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Product Details:
| Place of Origin: | China |
| Brand Name: | MKarte |
| Model Number: | MDP-MG-FX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 thousand pieces per week |
|
Detail Information |
|||
| Size: | A4, A3 Or As Per Customer Requirements | Thickness: | 0.15mm-0.40mm |
|---|---|---|---|
| Size/ Thickness Tolerance: | +/-5% | Color: | Snow White/supper White |
| Suitable Printers: | Whole Series Of MGI Printers. | Vicat Softening Point: | 78±2℃ |
| Heat Laminating: | 110~130℃ | Density: | 1.42±0.05g/cm3 |
| High Light: | pvc id card material,plastic card material |
||
Product Description
PVC Card Material Fuji-Xerox Digital Printing PVC Core White Applicated in IC Cards Production
1.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Introduction
Brief Introduction:
PVC Card Material Fuji-Xerox Digital Printing PVC Core White is suitable for Fuji-Xerox digital printer series. It could be printed directly by digital printers with perfect printing quality.
PVC Card Material Fuji-Xerox Digital Printing PVC Core White , also called electronic ink printing sheet, it is a novel material used for digitization ink printing, and its color is recovered accurately. Printing ink has strong adhesive force, high laminating strength, clear graphic outline, and free from static electricity. Generally, it is matched with tape film for making laminated card.
Characteristics:
● Excellent ink adhesion.
● Good printing stability.
● Suitable for the whole series of Fuji-Xerox printers.
● High definition images.
● No crack occurs on the printed images after lamination at high temperature.
2.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Parameters and Features
PVC Card Material Fuji-Xerox Digital Printing PVC Core White is developed specially for the whole series of Fuji-Xerox printers.. It could be printed directly by the machine with high precision images, no Topaz coating needed.
It is developed specially for the whole series of Xerox digital printing machines. With excellent printed image, ink adhesion and heat resistance, it is widely used in ID cards and documents production.
| Size | A4, A3 or as per customer requirements |
| Thickness | 0.15mm-0.40mm |
| Color | white/supper white |
| Package method | 50, 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ |
Parameters:
1). Size: A4, A3 or as per customer requirements (tolerance +/-0.5mm)
2). Thickness: 0.15mm-0.40mm (tolerance +/-5%)
3). Coating description: digital ink coating on one side and lamination glue coating on another side.
4). Color: white/supper white
5). Package method: 50/100/200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets.
6). Storage condition: Sealed, moisture-proof, room temperature under 40℃
3.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Application
Using Method:
Printed directly by the whole series of Fuji-Xerox printers.
| Item | Parameters |
| Surface | Clean and flatness |
| Dimensional Tolerance (mm) | ±1 |
| Angle Cut Tolerance(mm) | ±1 |
| Diagonal Difference(mm) | ≤1.2 |
| Thickness Tolerance(mm) | ±10% |
| Laminating Unit | Temp(℃) | Pressure(MPa) | Time (min) |
| Heat Laminating | 110~130 | ≥8 | 20 |
| Cool Laminating | ≤40 | ≥8 | 20 |
4.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Inspection & Packing

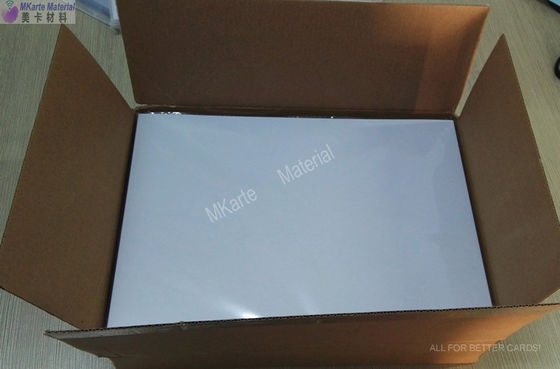

Packing:
Outer:Carton Inner:PE bag
Storage:
Keep package sealed and moisture-proof, room temperature under 40℃.
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: One year.
| Product Test Report | |||||
| Product Name: PVC Digital Printing Sheet | |||||
| Inspected Items | Unit | Inspection Standard | Test Result | ||
| Appearance | The color is even, No black impurity spots, No obvious scratch |
Meet the requirements | |||
| Length | mm | ±1 | OK | ||
| Width | mm | ±1 | OK | ||
| Thickness | mm | ±10% | OK | ||
| Squareness | mm/m | ≤1 | 0.4 | ||
| Density | g/cm3 | 1.42±0.05 | 1.41 | ||
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | ||
| Pulling Strength | MD | MPa | ≥45 | 47 | |
| CD | ≥43 | 43.1 | |||
| Roughness Ra |
4# | ṷ m | 0.7～1.8 | 1.28 | |
| 5# | ṷ m | 0.7～1.8 | 0.97 | ||
| Roughness Rz |
4# | ṷ m | 4～12 | 7.912 | |
| 5# | ṷ m | 4～12 | 6.91 | ||
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 | |
| 5# | ≥34 | 34 | |||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 | |
| CD | ≤+2.2 | 0 | |||
| Whiteness | 96.2 | ||||
| Transmittance | % | 5.5 | |||
| Vicat softening point | ℃ | 78±2 | 78.9 | ||
