Anti Moisture 0.04mm A4 Size Magnetic Stripes PVC Coated Overlay
Product Details:
| Place of Origin: | China |
| Brand Name: | LUCKY China |
| Model Number: | MCO-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000-30000 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10- 25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 100000 Sheet per Week |
|
Detail Information |
|||
| Magnetic Stripe Brand: | LUCKY | Appearance: | The Color Is Even, No Black Impurity Spots, No Obvious Scratch |
|---|---|---|---|
| Coating: | Glue Coating On One Side Of The Sheet | Shelf Life: | About 2 Years |
| Storage: | -10~35℃, Sealed, Moisture-proof | Packaging: | By Standard Export Wooden Case Or As Per Customer Requirements |
| High Light: | Magnetic Stripes PVC Coated Overlay,A4 PVC Coated Overlay,0.04mm Magnetic Stripe Coated Overlay |
||
Product Description

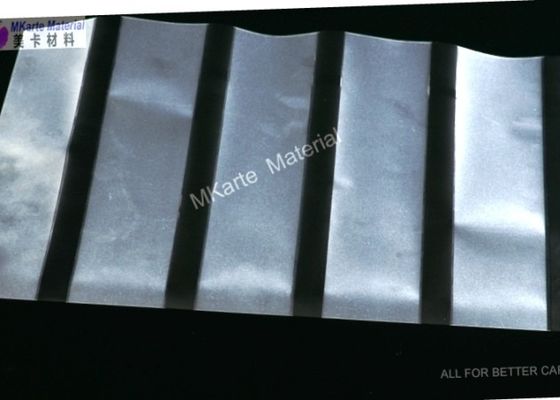

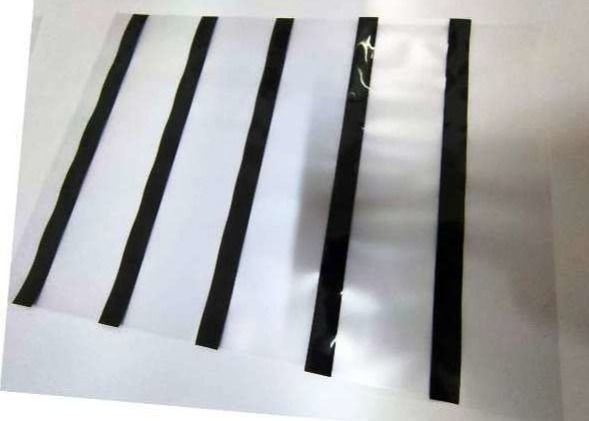

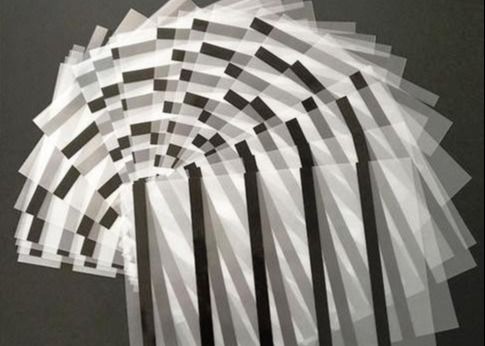

Anti Moisture 0.04mm A4 Size Magnetic Stripes PVC Coated Overlay
Production Specification
1.Anti Moisture 0.04mm A4 Size Magnetic Stripes PVC Coated Overlay Introduction
Anti Moisture 0.04mm A4 Magnetic Stripes PVC Coated Overlay is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China . It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion , no color change and deformation with long aging life after the process of lamination .
Steps to make cards:
1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .
2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.
3. Cutting the card.
2.Anti Moisture 0.04mm A4 Size Magnetic Stripes PVC Coated Overlay Specification
Parameter :
1.Size: by reel or by sheet, A4, A3 or as per customer requirements
2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5. Color : transparent with one-side glue coating
6. Length and width: in sheet, 201*297 mm ( A4 ) , 295*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)
7. Package method: 500 sheets a bag, 50 bags one carton , packed in Pallets
8. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.
Specifications:
| Product name | Anti Moisture 0.04mm A4 Magnetic Stripes PVC Coated Overlay |
| Common size | A4, 210x297mm (A3, customized ) |
| Thickness | 0.04mm -1.0 mm |
| Appearance | transparent |
| Coated | glue coating on back of the sheet |
| Laminating temperature | from 110 to 150℃ |
| Storage | -10~35℃, sealed, moisture-proof |
| Shelf life | around 2 years |
| Packing method | 100pcs/bag, 4000pcs/carton |
The technical data:
| Model number | MCO-MS |
| Normal Thickness | 0.04 mm,0.05mm,0.06mm ,0.08mm ,0.10mm |
| Size | Sheet size or Roll size, any size as your requirement |
| Color | Clear (Transparent) |
| Glue Coated | Yes |
| Application | Magnetic strip Card Making |
| Type | Heat press |
| Advae | Waterproof, Moistureproof, Customized layout |
| Packaging box |
In standard export carton: 500 sheets a bag, 50 bags one carton , packed in pallets, suitable for long distance for sea or air transport |
3.Application of Anti Moisture 0.04mm A4 Size Magnetic Stripes PVC Coated Overlay
Anti Moisture 0.04mm A4 Magnetic Stripes PVC Coated Overlay is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking , and cuts down the waste rate in production.
Producing method: cover the printed plastic sheets and then laminate together.
4.Packing of Anti Moisture 0.04mm A4 Size Magnetic Stripes PVC Coated Overlay
By using standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
