PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay

PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay

Product Details:

Place of Origin: China
Brand Name: LUCKY China
Model Number: MCO-MS

Payment & Shipping Terms:

Minimum Order Quantity: 20000-30000 Sheets
Price: Negotiable
Packaging Details: In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 10- 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5 million square meters per month
Get Best Price Contact Now

Detail Information

Sheet Size: A4 , A3 Or Custom-made Size Common Thickness: 0.04mm,0.05mm,0.06mm,0.08mm,0.10mm
Product Classify: HICO 2750OE, LOCO 360OE Size Tolerance: +/-0.5 Mm In Length And Width And Thickness
Color Appearance: Transparent Packaging: Carton Or Solid Plywood Package
High Light:

1.0mm Magnetic Stripe Coated Overlay

,

A4 Magnetic Stripe Coated Overlay

,

PVC Card Coated Overlay

Product Description

PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay



Production Specification

1. PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay Introduction

PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China . It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion , no color change and deformation with long aging life after the process of lamination .

PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.

Steps to producing cards:

1. Put printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .

2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.

3. Cutting the card.

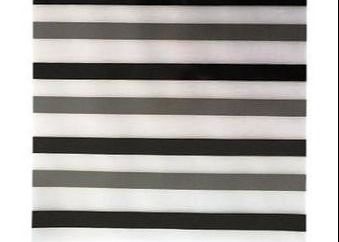

PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay 0



2.PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay Specification

Detailed Description

Coated overlay with magnetic strip hico 2750 oe or loco 360oe , used for card making and laminating ,one side is with magnetic strip,another side for laminating.

1. It has strong adhesive effect

2. it apply to most of the bank card and smart card lamination.
3. Yellow resistance

4. Magnetic strip is not easy to peel off .

Specifications:

 Lamination Temperature  120-140 ℃
 Thickness of overlay  0.04~0.1mm
 Size  Sheet size or Roll size, any size as your requirement
 Classify  HICO 2750OE, LOCO 360OE
 Color  Clear (Transparent)
 Glue Coated  YES

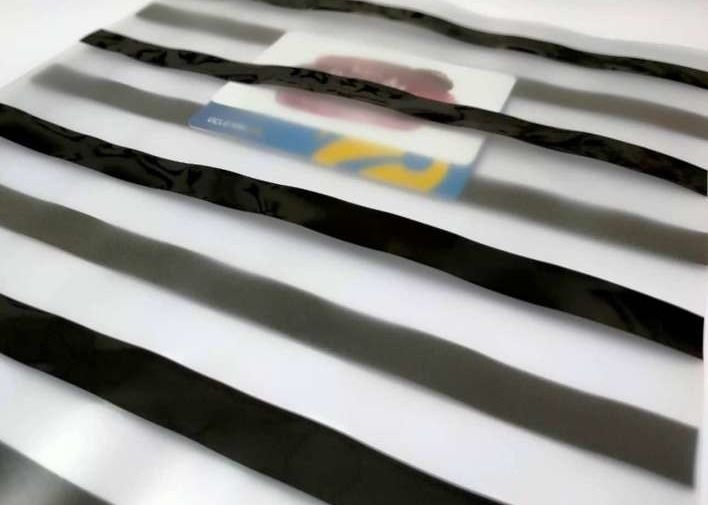

PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay 1


 Model number  MCO-MS
 Normal Thickness in mm  0.04,0.05,0.06,0.08,0.10
 Size  Sheet size or Roll size, any size as your requirement
 Color  Clear (Transparent)

 Glue Coated  Yes with coating
 Material  PVC
 Application  Magnetic Card Production
 Type  Heat laminating
 Advae  IWaterproof, Moistureproof, Customized layout
Packaging box

 100pcs/bag, 4000pcs/carton



3.Application of PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay

PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay can be directly laminated with PVC printing sheet, which will simplify the fabrication process, save time.

 PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay 2PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay 3



4.Packing of PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay

In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
PVC Magnetic Stripe Card A4 1.0mm Magnetic Stripe Coated Overlay 4
