0.04mm PVC Card A4 A3 Size Magnetic Stripe Coated Overlay Film
Product Details:
| Place of Origin: | China |
| Brand Name: | LUCKY China |
| Model Number: | MCO-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000-30000 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10- 20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 5 million square meters per month |
|
Detail Information |
|||
| Size Tolerance: | +/-5% | Laminating Type: | Hot Pressing |
|---|---|---|---|
| Size: | Sheet Size Or Roll Size , A4 , A3 Or Customized | Application: | Apply To Most Of The Bank Card And Smart Card Lamination |
| Packaging Details: | 500 Sheets A Bag, 50 Bags One Carton ,packed In Pallets | Advae: | Waterproof, Moistureproof, Customized Layout |
| High Light: | A3 Magnetic Stripe Coated Overlay,Card Magnetic Stripe Coated Overlay,Magnetic Stripes Coated Overlay Films |
||
Product Description

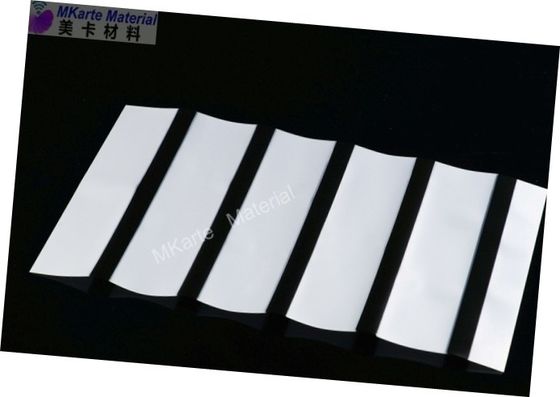

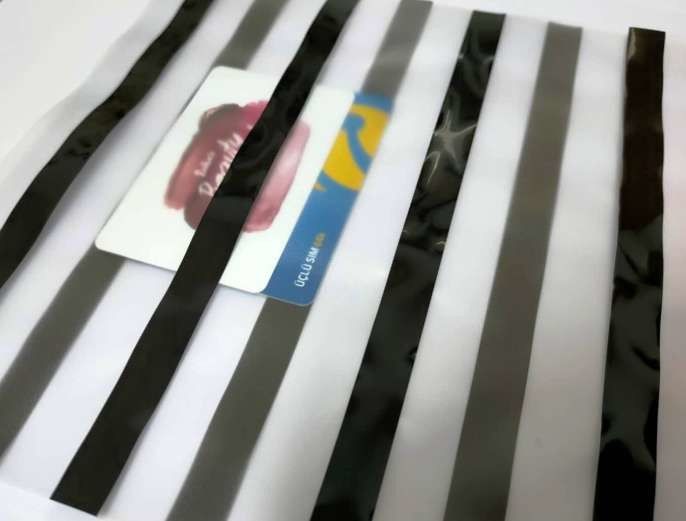

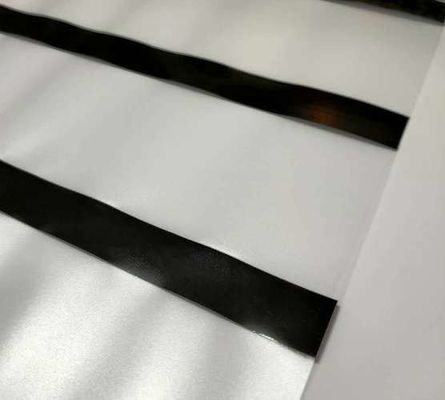

0.04mm PVC Card A4 A3 Size Magnetic Stripe Coated Overlay Film
Production Specification
1.0.04mm PVC Card A4 A3 Size Magnetic Stripe Coated Overlay Film Introduction
0.04mm PVC Card A4 A3 Size Magnetic Stripe Coated Overlay Film is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China . It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion , no color change and deformation with long aging life after the process of lamination .
Procedure to produce cards:
1. Put PVC printing core and two overlays together , then put into the laminator . ( the laminating temperature and time is determined as per the instruction of the machine ) . Please be noticed that all glue sides of both PVC sheets and Overlays are put inward .
2. Tlamination lasts 10-15 minutes . The pressure is 6-8Mpa. The temperature is 120-140°C.
3. Cutting the card.
2.0.04mm PVC Card A4 A3 Size Magnetic Stripe Coated Overlay Film Specification
Product Parameter :
1.Size: in sheet, A4, A3 or as per customer requirements
2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5. Color : transparent with one-side glue coating
6. Length and width: in sheet, 201*297 mm ( A4 ) , 310*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)
7. Package method: 100/200 sheets per bag or as per customer requirements.
8. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.
Specifications:
| Lamination Temperature | 120-140 ℃ |
| Thickness of overlay | 0.04~0.1mm |
| Size | Sheet size or Roll size, any size as your requirement |
| Classify | HICO 2750OE, LOCO 360OE |
| Color | Clear (Transparent) |
| Glue Coated | YES |
| Model number | MCO-MS |
| Normal Thickness in mm | 0.04,0.05,0.06,0.08,0.10 |
| Normal Size | Sheet size or Roll size, any size as your requirement |
| Color | Clear (Transparent) |
| Glue Coated
|
With coating on both sides |
| Material | PVC |
| Application | Magnetic Strips Card Making |
| Laminating Type | Hot pressing |
| Advae | Waterproof, Moistureproof, Customized layout |
| Packaging box |
In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
3.Application of 0.04mm PVC Card A4 A3 Size Magnetic Stripe Coated Overlay Film
0.04mm PVC Card A4 A3 Size Magnetic Stripe Coated Overlay Film can be directly laminated with PVC printing sheet, which will simplify the fabrication process, save time.
4.Packing of Magnetic Stripes Coated Overlay Films
In standard export carton and are packed plywood pallet
