Card 0.10mm Adhesion PVC Magnetic Stripe Coated Overlay
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCO-MS-LOCO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 sheets |
|---|---|
| Price: | negotiable |
| Packaging Details: | 100/200 sheets per bag or as per customer requirements. |
| Delivery Time: | 10-20working days |
| Payment Terms: | Western Union, MoneyGram, T/T, D/P, D/A, L/C |
| Supply Ability: | 6 million square meters per month |
|
Detail Information |
|||
| Applied Magnetic Stripe: | LOCO 300oe, Standard Width 12.7mm, Black Color, Peelable Transfer Model, Brand: LUCKY | Size Tolerance: | +/-0.5 Mm In Length And Width, +/-5% In Thickness. |
|---|---|---|---|
| Package Method:: | 100/200 Sheets Per Bag Or As Per Customer Requirements. | Size: | In Sheet, A4, A3 Or As Per Customer Requirements |
| Coated Overlay Thickness Range In Mm: | 0.04，0.05，0.06，0.08，0.10mm | Color:: | Transparent With One-side Glue Coating. |
| High Light: | PVC Magnetic Stripe Coated Overlay,0.10mm Magnetic Stripe Coated Overlay,Adhesion PVC Coated Overlay |
||
Product Description

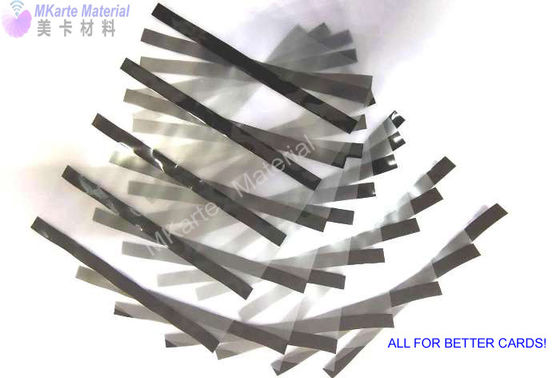

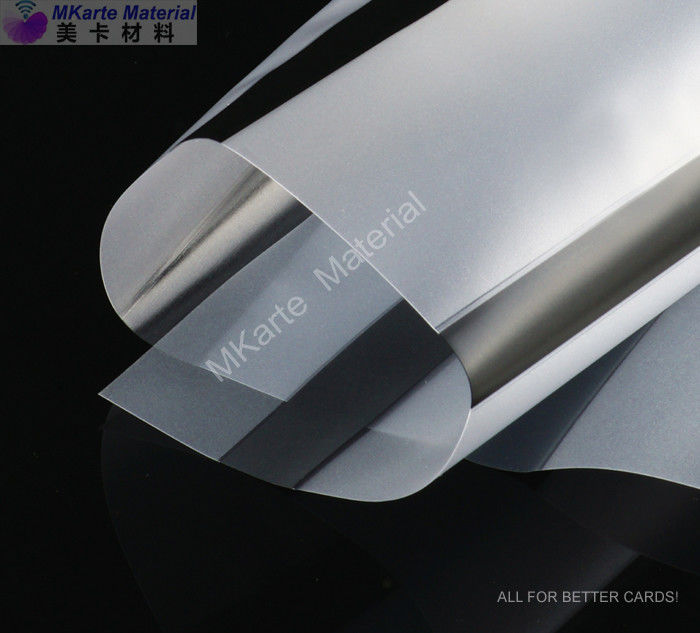

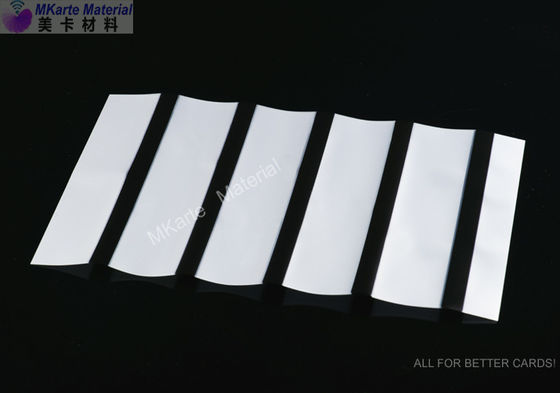

PVC coated overlay with LOCO magnetic stripes for magnetic card production
1.PVC coated overlay with LOCO magnetic stripes for magnetic card production- Introduction
HICO magnetic stripe coated PVC overlay MCO-MS-LOCO is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.
2.PVC coated overlay with LOCO magnetic stripes for magnetic card production- Technical Parameters:
1). Size: in sheet, A4, A3 or as per customer requirements
2). Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3).Magnetic stripe feature: LOCO 300oe, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4). Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5).Package method: 100/200 sheets per bag or as per customer requirements.
6). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.
| 1 | Magnetic stripe | LOCO, standard width 12.7mm, black color, Peelable transfer model. |
| 2 | Size tolerance | +/-0.5 mm in length and width, +/-5% in thickness. |
| 3 | Overlay thickness | 0.04,0.05,0.06,0.08,0.10mm |
| 4 | Package method | 100/200 sheets per bag or as per customer requirements |
3.PVC coated overlay with LOCO magnetic stripes for magnetic card production- Application
Thickness of overlay: 40-100 Micron
Size: Sheet size or Roll size
Classify: HI_CO 2750OE, LO_CO 300OE
Overlay Type: Coated Overlay, Uncoated Overlay
Magnetic stripe: Lucky or customized.
Technical note: In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.
In manufacturing process, Magnetic Stripe PVC Film can be directly laminated with PVC printing sheet, simplify the fabrication process to save time.
Steps to make cards:
1).Put printing core and two overlays together, then put into the laminator.
(The laminating temperature and time is determined as per the instruction of the machine). Please be noticed that all glue sides of both PVC sheets and overlays are put inward.
2).Lamination lasts 10-15 minutes (6-8Mpa 125-140℃).
3).Cutting.
4.PVC coated overlay with LOCO magnetic stripes for magnetic card production-Packing
