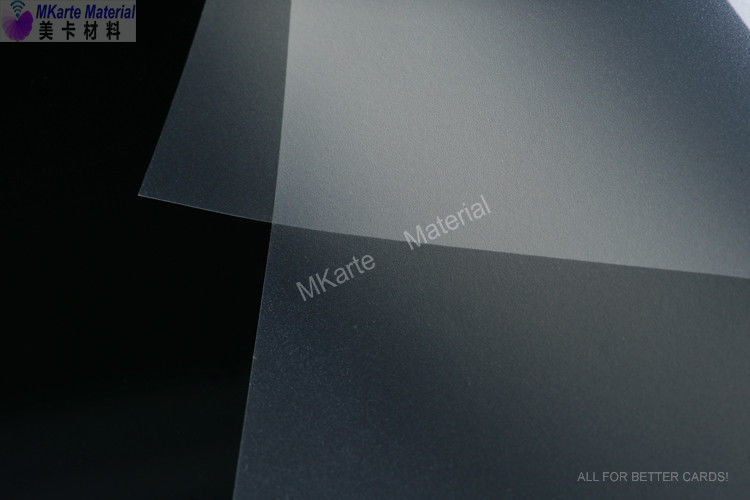

Glue Coating 0.10mm PVC Coated Overlay For Inkjet Print
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCO-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Thickness: | 0.04，0.05，0.06，0.08，0.10mm Or Other | Color: | Transparent With One-side Glue Coating |
|---|---|---|---|
| Vicat (℃): | 72±2 | Heat Laminating: | 110~130 ℃ |
| Aging Time (65℃ Temp./95% Humidity ): | ＞200 Hours | Tensile Strength: | ≥40 MPa |
| High Light: | Glue Coating PVC Coated Overlay,0.10mm PVC Coated Overlay,Inkjet Print PVC Coated Overlay |
||
Product Description
High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Plastic Card Making Material
1. High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Brief Introduction
High Stickness Glue coating PVC Coated Overlay for Inkjet Print is developed specially for Inkjet printer Ink. It’s suitable for laminating with the sheets which printed by whole series of Inkjet presses. It provides excellent peel strength and no deformation or color change after lamination.
2. High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Using Method
Specific to the new coated overlay of HP Indigo electronic ink, suitable for all series of HP Indigo digital printer, it has high peel strength with electronic ink, small lamination discoloration, not easy to cause deformation, and wide application.
Detailed Product Description
1).Thickness Range: 0.04-0.1MM
2).Finish: Matt with glue on one side
3).Size: Customized Roll size or Sheet size
4).High initial stick
Laminate with Inkjet printed sheet directly.
3. High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Characteristics
● Suitable for lamination with Inkjet printer Ink, with excellent peel strength.
● Abrasion resistant , prolong the life of cards.
● Environment friendly in the card making process, no solvent or gas discharges.
4.High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Technical Parameters
| Item | Parameters | |
| Surface | Clean and flatness | |
| Dimensional Tolerance (mm) | ±1 | |
| Angle Cut Tolerance (mm) | ±1 | |
| Diagonal Difference (mm) | ≤1 | |
| Thickness Tolerance (mm) | ±10% | |
| Vicat (℃) | 72±2 | |
| Shrinkage | MD | ≥ - 40% |
| TD | ≤15% | |
| Tensile Strength (MPa) | MD | ≥35 |
| TD | ≥35 | |
5. High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Laminating Condition
| Laminating Unit | Temp(℃) | Pressure(MPa) | Time (min) |
| Heat Laminating | 110~130 | ≥8 | 20 |
| Cool Laminating | ≤20 | ≥8 | 20 |
6.High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Packing:
Outer:Carton Inner:PE bag
7.High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Storage
Keep package sealed and moisture-proof, room temperature between 5~30℃.
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: One year.
