Highproof 3mm PVC Card Material For Card Lamination
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MRP-1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 80 pcs |
|---|---|
| Price: | USD 7 -30 per sheet |
| Packaging Details: | packed with PE bags and paper carton |
| Delivery Time: | 6-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 10 thousand pieces per month |
|
Detail Information |
|||
| Material: | White Silicon Rubber | Size: | Customized |
|---|---|---|---|
| Adhesive Force N/mm: | 2.5 | Breaking Extensibility: | 350 |
| Hardness SHORE A: | 55±5 | Thickness: | 3mm |
| High Light: | highproof pvc card material,3mm PVC Card Material |
||
Product Description

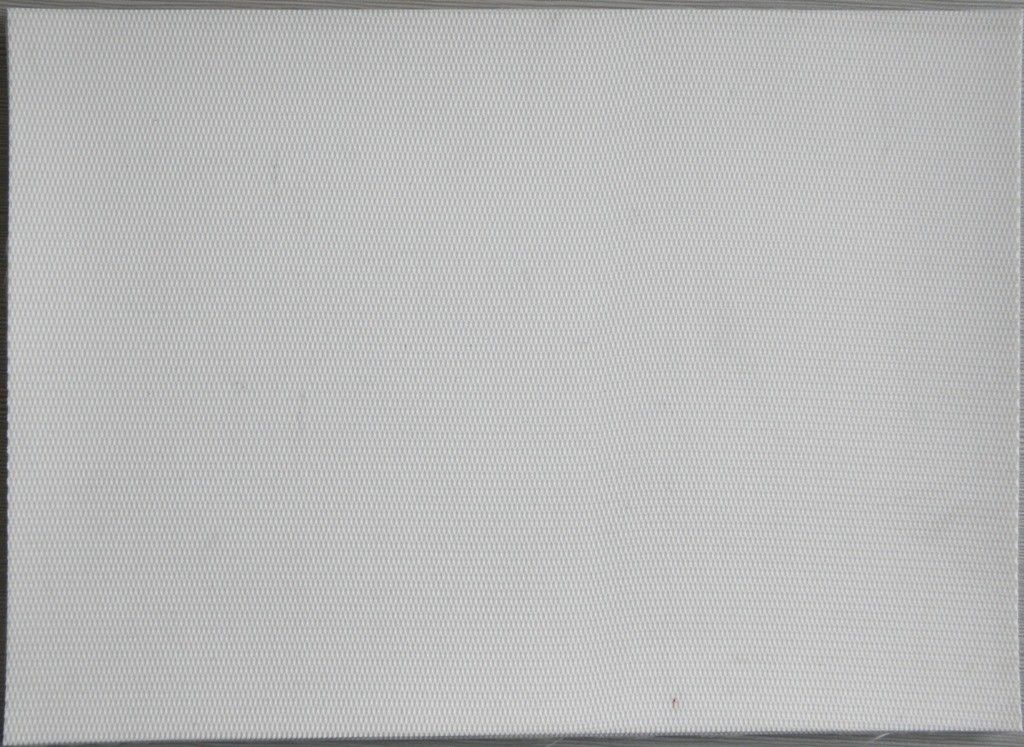

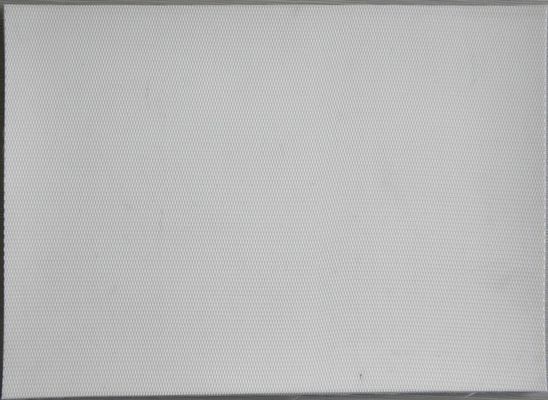

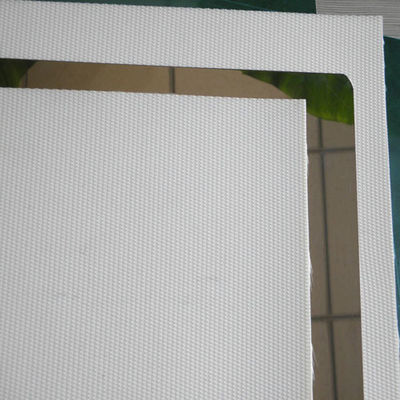

Highproof PVC Card Material White Press Pad Cushion Pad designed for high end card lamination purpose
( Key words: lamination pad, rubber pad, card laminator cushion pad, silicon rubber pad, plastic card lamination pad, card material)
1. Highproof PVC Card Material White Press Pad Cushion Pad designed for high end card lamination purpose- Introduction
It is working with the lamnation steel plates in the process of plastic card lamination. It is applied for the lamination process for various plastic cards including bank card, credit card, and royalty card. It works with lamination steel plate in the plastic card lamination process.
The cushion pad consists of white heatproof silicon rubber layers on the surfaces with glass filer in the middle.
2.Highproof PVC Card Material White Press Pad Cushion Pad designed for high end card lamination purpose- Key Features:
Silicon Rubber Cushion White Laminated Pad is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .
The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .
1). It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination.
2). It can transfer heat quickly and evenly, which can improve production efficiency and energy conservation.
3). It has good performance of high temperature resistance and excellent elastic resilience.
Technical Parameters:
1. Heatproof performance: 200℃
2. Tensile strength: 80 N/mm
3. Adhesion: 80 N/mm
4. Hardness SHORE A: 55±5
5. Thickness: 3mm
6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)
3.Highproof PVC Card Material White Press Pad Cushion Pad designed for high end card lamination purpose- Application
| Function | Used for plastic card laminator, working with lamination steel plates |
| Service life | one year |
| Material | White heatproof silicon rubber layers on the surfaces with glass filer in the middle. |
Detailed Product Description
(1) Silicon rubber cushion
(2) High tensile strength and tearing strength,
(3) Long service life,
(4) Heat resistant up to 250
(5) Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .
(6) Product specification: 1) thickness: 1.5- 3.5mm 2) maximum width: 3800mm with no joint 3) any length 4) color: white
The technical index:
| Model number | MRP-1 |
| Thickness | 1.5- 3.5mm (Thickness tolerance: ±0.05mm) |
| Pad size | in sheet, A3, A4 or custom-made size |
| Breaking strength | 80 Mpa |
| Hardness SHORE A | 55±5 |
| Adhesive force N/mm | 2.5 |
| Breaking extensibility | 350 |
| Packaging box | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
4.Highproof PVC Card Material White Press Pad Cushion Pad designed for high end card lamination purpose-Packing
