Transparent 0.1mm A4 Magnetic Stripe Coated Overlay

Transparent 0.1mm A4 Magnetic Stripe Coated Overlay

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MCO-MS

Payment & Shipping Terms:

Minimum Order Quantity: 20000 sheets
Price: Negotiable
Packaging Details: 100/200 sheets per bag or as per customer requirements.
Delivery Time: 10-20working days
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 6 million square meters per month
Get Best Price Contact Now

Detail Information

Popular Thickness: 0.06mm,0.08mm,0.1mm Etc Shape: In Sheet Or In Roll
Brand Of The Strips: LUCKY Surface: Transparent With One-side Glue Coating
Package: Carton Package+ Plywood Pallet Supply Ability: 100000 Sheets Per Week
High Light:

A4 Magnetic Stripe Coated Overlay

,

0.1mm Magnetic Stripe Coated Overlay

,

Transparent Magnetic Stripe Coated Overlay

Product Description

Transparent 0.1mm A4 Size Magnetic Stripe Coated Overlay Film With Strong Adhension



1.Technical Specification of Transparent 0.1mm A4 Size Magnetic Stripe Coated Overlay Film With Strong Adhension

PVC coated overlay with magnetic stripes MCO-MS is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.

Technical Parameters:
1. Size: in sheet, A4, A3 or as per customer requirements

2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

5. Color: transparent with one-side glue coating.

6. Package method: 100/200 sheets per bag or as per customer requirements.

7. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

Specifications:

Thickness of overlay 0.04~0.1mm
Size Sheet size or Roll size, any size as your requirement
Classify HI_CO 2750OE, LO_CO 300OE
Color Clear (Transparent)
Glue Coated YES

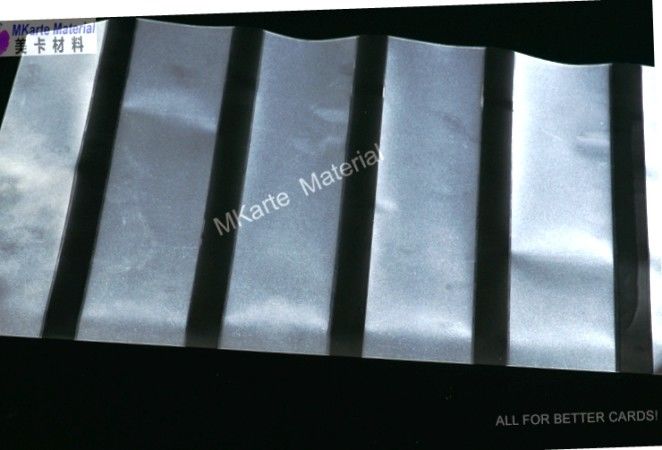

Transparent 0.1mm A4 Magnetic Stripe Coated Overlay 0



2. More Features of Transparent 0.1mm A4 Size Magnetic Stripe Coated Overlay Film With Strong Adhension

PVC Coated magnetic stripe overlay film is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.

Using method: cover the printed plastic sheets and then laminate together.

Size A4, A3 or as per customer requirements
Coated overlay thickness range in mm 0.04,0.05,0.06,0.08,0.10
Magnetic stripe feature HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
Size tolerance +/-0.5 mm in length and width, +/-5% in thickness.
Color transparent with one-side glue coating
Package method 100/200 sheets per bag or as per customer requirements
Storage condition Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

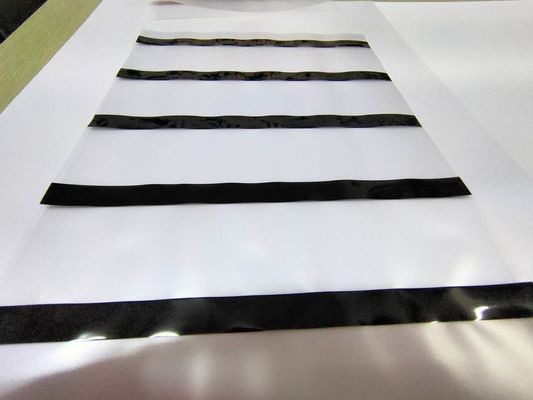

Transparent 0.1mm A4 Magnetic Stripe Coated Overlay 1



3.Application of Transparent 0.1mm A4 Size Magnetic Stripe Coated Overlay Film With Strong Adhension

In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.

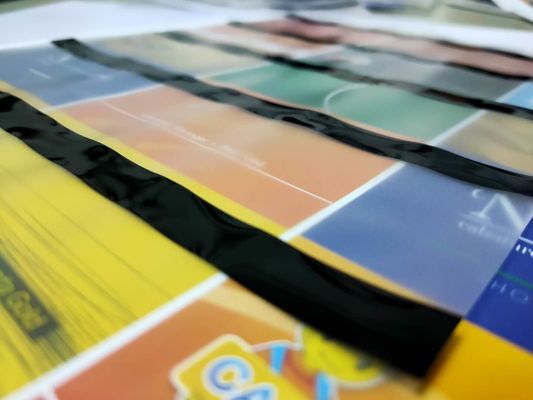

Transparent 0.1mm A4 Magnetic Stripe Coated Overlay 2
Transparent 0.1mm A4 Magnetic Stripe Coated Overlay 3
