A4 Size Plastic Card Making Pvc Coated Overlay With Magnetic Stripe

A4 Size Plastic Card Making Pvc Coated Overlay With Magnetic Stripe

Product Details:

Place of Origin: China
Brand Name: MKarte
Model Number: MCO-MS

Payment & Shipping Terms:

Minimum Order Quantity: 20000-30000 Sheets
Price: Negotiable
Packaging Details: By standard export carton and packed in strong plywood pallet with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 10- 25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 50 tons per Month
Get Best Price Contact Now

Detail Information

Thickness Of Overlay: 40-100 Micron Size: Sheet Size Or Roll Size
Classify: HI_CO 2750OE, LO_CO 360OE Brand Of Magnetic Stripe: LUCKY
Package Method:: 100/200 Sheets Per Bag Or As Per Customer Requirements. Storage Condition: Sealed, Moisture-proof, Room Temperature Under 40℃, Keep It Horizontally, Avoid Heavy Pressing And Direct Sunlight.
High Light:

plastic card making pvc coated overlay

,

a4 size pvc coated overlay

,

pvc coated overlay with magnetic stripe

Product Description

A4 Size HICO/ LOCO PVC coated overlay with Mag. strip For Plastic Card making


Production Specification

1.A4 Size HICO/ LOCO PVC coated overlay with Mag. strip For Plastic Card making- Introduction



PVC coated overlay with magnetic stripes MCO-MS is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.

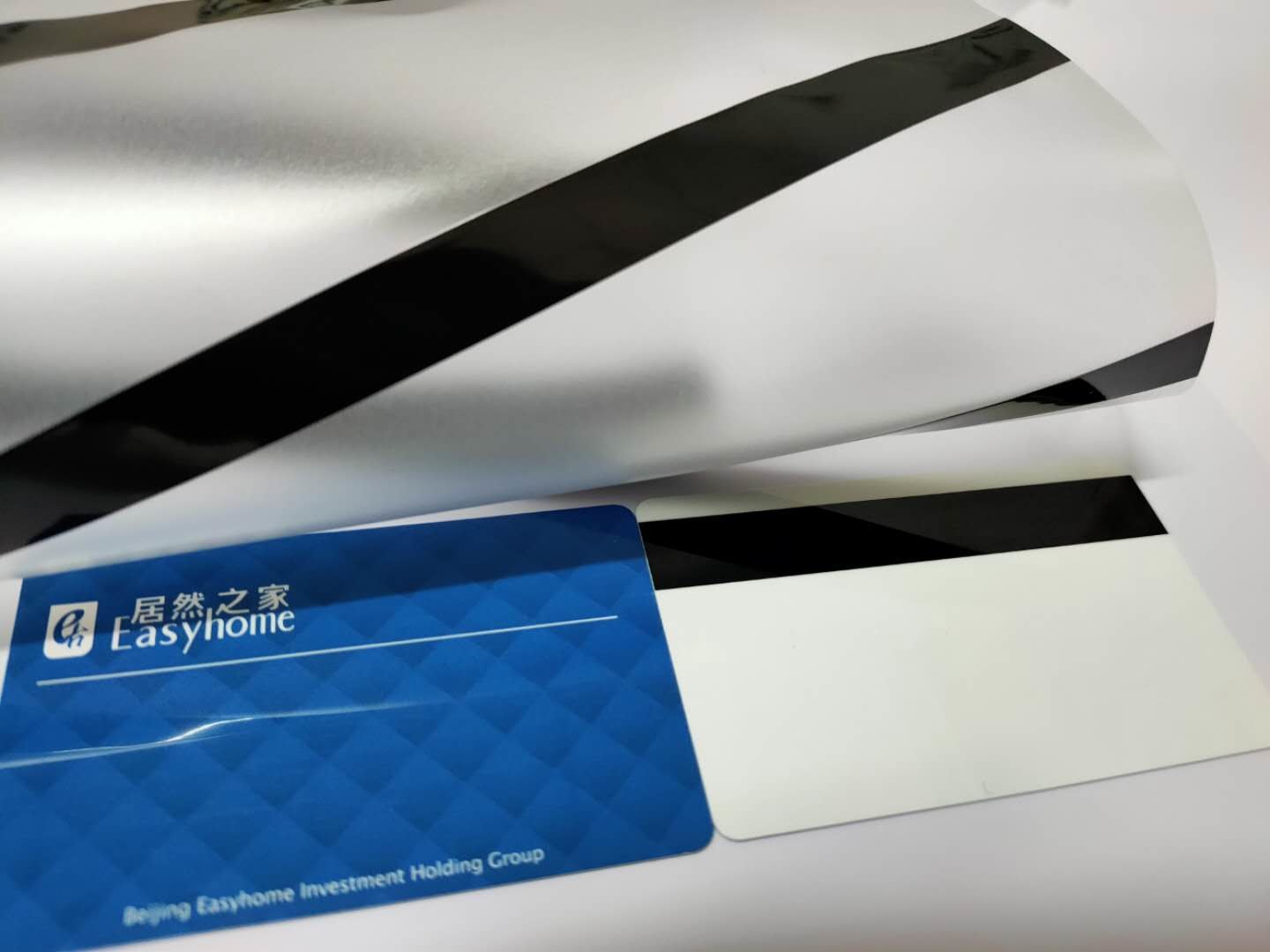

A4 Size Plastic Card Making Pvc Coated Overlay With Magnetic Stripe 0





2.A4 Size HICO/ LOCO PVC coated overlay with Mag. strip For Plastic Card making- Specification



1).Size: by reel or by sheet, A4, A3 or as per customer requirements
2). Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3). Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
4). Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.
5). Color : transparent with one-side glue coating
6). Length and width: in sheet, 210*297 mm ( A4 ) , 295*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)

7). Package method: 500 sheets a bag, 50 bags one carton , packed in Pallets

8). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.



Specifications:

Product name A4 Size Black Magnetic Stripes Coated Overlay Sheet For Plastic Card Lamination
Common size A4, 310x480mm (A3, customized )
Thickness 0.04mm -1.0 mm
Appearance transparent
Coated glue on back
Laminating temperature 110-150℃
Storage -10~35℃, sealed, moisture-proof
Shelf life 2 years
Packing method 100pcs/bag, 4000pcs/carton




A4 Size Plastic Card Making Pvc Coated Overlay With Magnetic Stripe 1
3.A4 Size HICO/ LOCO PVC coated overlay with Mag. strip For Plastic Card making- Product Parameter




Thickness of overlay: 40-100 Micron

Size: Sheet size or Roll size

Classify: HI_CO 2750OE, LO_CO 360OE

Overlay Type: Coated Overlay, Uncoated Overlay

Magnetic stripe: Lucky or customized.

Technical note: In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.

The technical Parameters:

 Model number  MCO-MS
 Thickness   0.04 mm,0.05mm,0.06mm ,0.08mm ,0.10mm
 Common Size  Sheet size or Roll size, any size as your requirement
 Color  Clear (Transparent)
 Glue Coated  Yes
 Application  Magnetic strip Card Making
 Type  Heat press
 Advae  Waterproof, Moistureproof, Customized layout
Packaging method

 By standard export carton and packed in strong plywood pallet with proper soft   protection material inside, suitable for long distance for sea or air transport



4.A4 Size HICO/ LOCO PVC coated overlay with Mag. strip For Plastic Card making-  Application

In manufacturing process, Magnetic Stripe PVC Film can be directly laminated with PVC printing sheet, simplify the fabrication process to save time.

Steps to make cards:

1).Put printing core and two overlays together, then put into the laminator.

(The laminating temperature and time is determined as per the instruction of the machine). Please be noticed that all glue sides of both PVC sheets and overlays are put inward.



2).Lamination lasts 10-15 minutes (6-8Mpa 125-140℃).



3).Cutting.


A4 Size Plastic Card Making Pvc Coated Overlay With Magnetic Stripe 2






5.A4 Size HICO/ LOCO PVC coated overlay with Mag. strip For Plastic Card making-  Packing


In standard export carton and packed in plywood pallet

 A4 Size Plastic Card Making Pvc Coated Overlay With Magnetic Stripe 3
