A3 Hico Magnetic Stripe Pvc Coated Overlay For Card Lamination

A3 Hico Magnetic Stripe Pvc Coated Overlay For Card Lamination

Product Details:

Place of Origin: China
Brand Name: LUCKY China
Model Number: MCO-MS

Payment & Shipping Terms:

Minimum Order Quantity: 20000-30000 Sheets
Price: Negotiable
Packaging Details: In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport
Delivery Time: 10- 20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5 million square meters per month
Get Best Price Contact Now

Detail Information

Brand Name Magnetic Stripe Of: LUCKY Size Tolerance: +/-0.5 Mm In Length And Width, +/-5% In Thickness
Color For The Mag. Strip: Black Or Brown Classification: HI-CO 2750 OE ,LO-CO 300 OE
Sheet Size: A4, 295*380mm, Or Customized Advae: Waterproof, Moistureproof, Customized Layout
High Light:

a3 pvc coated overlay

,

pvc coated overlay a3

,

card lamination pvc coated overlay

Product Description

A3 PVC Coated Overlay with Hico Magentic Stripe for PVC Card Lamination​


1.Technical Specification of A3 PVC Coated Overlay with Hico Magentic Stripe for PVC Card Lamination​

Technical Parameters:
1. Size: in sheet, A4, A3 or as per customer requirements

2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

5. Color: transparent with one-side glue coating.

6. Package method: 100/200 sheets per bag or as per customer requirements.

7. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

Thickness of overlay 0.04~0.1mm
Size Sheet size or Roll size, any size as your requirement
Classify HI_CO 2750OE, LO_CO 300OE
Color Clear (Transparent)
Glue Coated YES

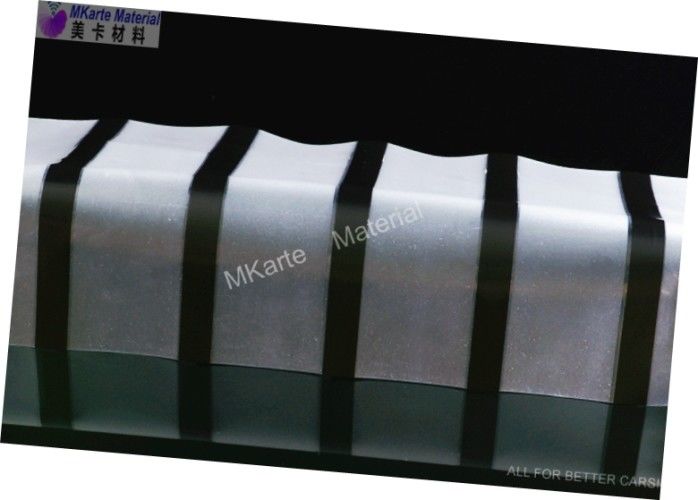

A3 Hico Magnetic Stripe Pvc Coated Overlay For Card Lamination 0
2.Other Features of
0.08mm High Adhesion A4 Size PVC Coated Overlay with Magnetic Stripes

Features

♦ Chemically stable.

♦ PVC Coated Overlay with Black Magnetic Stripe.

♦ One side is coated with hot-melt glue.

♦ High bonding strength makes high quality cards.

♦ Goes well with offset , screen or inkjet printed pvc sheets.

♦ applicable for press lamination type.
♦ Easy to use, simplify swipe cards production process.
♦ anti-abasion, extend card life.

Steps to make cards:

1.Put printing core and two overlays together, then put into the laminator.(the laminating temperature and time is determined as per the instruction of the machine).Please be noticed that all glue sides of both PVC sheets and Overlays are put inward.

2.Tlamination lasts 10-15 minutes. The pressure is 6-8Mpa.The temperature is 120-140°C.

3.Cutting the card.

Size A4, A3 or as per customer requirements
Coated overlay thickness range in mm 0.04,0.05,0.06,0.08,0.10
Magnetic stripe feature HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
Size tolerance +/-0.5 mm in length and width, +/-5% in thickness.
Color transparent with one-side glue coating
Package method 100/200 sheets per bag or as per customer requirements
Storage condition Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

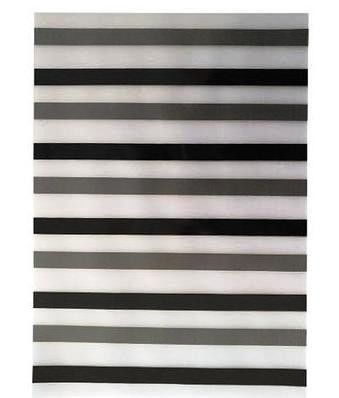

A3 Hico Magnetic Stripe Pvc Coated Overlay For Card Lamination 1

3.Application of 0.08mm High Adhesion A4 Size PVC Coated Overlay with Magnetic Stripes
PVC Coated magnetic stripe overlay film is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.

Product name New Arrival PVC Coated Overlay with Black Magnetic Stripe
Common size A4, 210x297mm (A3, customized )
Thickness 0.08mm(0.04mm and 0.10mm are available)
Appearance transparent
Coated glue on back
Laminating temperature 110-150℃
Storage -10~35℃, sealed, moisture-proof
Shelf life 2 years
Packing 100pcs/bag, 4000pcs/carton
carton dimensions 450x340x190mm
Gross weight 28kg

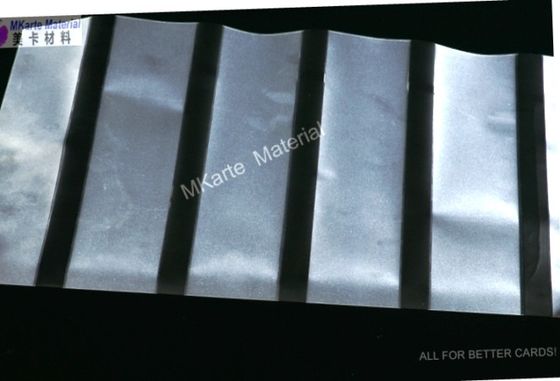

A3 Hico Magnetic Stripe Pvc Coated Overlay For Card Lamination 2
