• Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates
  • Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates
  • Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates
Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates

Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates

Product Details:

Place of Origin: China
Brand Name: MK
Model Number: MSP-G

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: USD 4.5-16 per sheet or negotiable
Packaging Details: plywood box with soft protection material inside
Delivery Time: 10-20working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, , D/P
Supply Ability: 30 thousand pieces per month
Get Best Price Contact Now

Detail Information

Dimension Tolerance: ±1mm For Length And Width. Surface Roughness: Ultra Glossy Plate (Ra<0.03μm)
Thermal Transmission: 0.04cal/℃.cm.sec At 20℃ Glossy Plate Surface Glossiness: Over 800 GU At 20° (both Sides)
Application: For Pvc Card Lamination Market: Worldwide For Pvc Card Making Or Bank Card Making
High Light:

lamination plastic card material

,

0.6mm thickness plastic card material

,

lamination pvc card making materials

Product Description

0.6mm / 0.8mm/1.0mm Thickness Ultra Glossy Steel Plates used for PVC card lamination



1. 0.6mm / 0.8mm/1.0mm Thickness Ultra Glossy Steel Plates used for PVC card lamination-Introduction:



Ultra Glossy Card Lamination Steel Plate- PVC Card Material MSP-G are used for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.

Key Features:

1). The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.

2). Two sides are made glossy in the same quality.

3). There are no scratches, dents, stripes shadows and dust on plate surfaces.

4). The edges are smooth and deburred with the round curved corners.

5). After lamination, the plates are not sticking to the laminated plastic sheets.

Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates 0

Features:

1.Card laminator Accessories ,High-grade stainless stee

2.800 Micron thickness

3.Characteristic: heat-resistant, high elasticity

Used in Laminator

2. 0.6mm / 0.8mm/1.0mm Thickness Ultra Glossy Steel Plates used for PVC card lamination-   Parameters:

Technical Parameters:





surface roughtness Ra value Ra<0.03μm
Thickness range 600 or 800 micron
Dimension tolerance ±1mm
Plate size(L×W) A4, A3 or custom-made size
Plate flatness level maximum 1 mm
Glossy plate surface glossiness over 800 GU at 20° (both sides)
Surface hardness HRC80±20
Thermal transmission 0.04cal/℃.cm.sec at 20℃
Edge state smooth and deburred with the round curved corners
Packaging box solid plywood carton with soft cushion protection inside.

Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates 1



30.6mm / 0.8mm/1.0mm Thickness Ultra Glossy Steel Plates used for PVC card lamination-Application

Steel plate based in good raw material, use the advae of good conducting of heat, resisting pressure, high quality mirror. By our steel plates you can produce the international standard card.

We have 7 kinds of steel plates finish,for different lamination purpose:



1).Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2).Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3).High matte steel
Platoon lights on the surface,too coarse for planographic code.
4).Moderate coarse/ middle matte steel plates
no lights on the surface,moderate coarse.
5).Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and inkjet code.
6).Pattern steel plate
Kinds of patterns for personalization cards lamination
7).Silk steel plate
For personalization card laminations





Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates 2

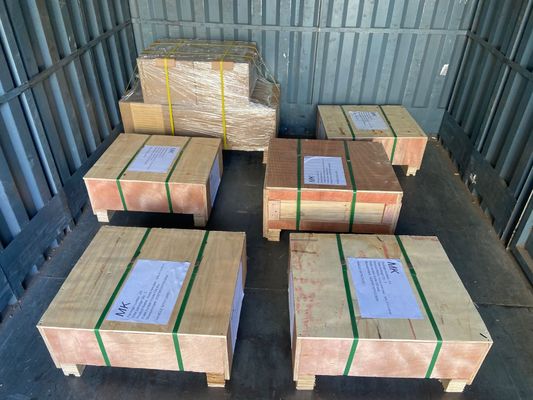

4. 0.6mm / 0.8mm/1.0mm Thickness Ultra Glossy Steel Plates used for PVC card lamination-  Packing



Wood Tree Texture Double Side Laminating Steel Plate for Card Making / Stainless Steel Plate Press on Cards in standard export wooden case



Lamination Plastic Card Material 0.6mm 0.8mm 1.0mm Thickness Ultra Glossy Steel Plates 3
