295x480mm Pvc Card Material For Rfid Cards Production
Product Details:
| Place of Origin: | China |
| Brand Name: | Fudan F08 |
| Model Number: | A3 Inlay |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50000chips |
|---|---|
| Price: | based on the layout and order qty |
| Packaging Details: | in carton |
| Delivery Time: | 8-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 chips per week |
|
Detail Information |
|||
| Material: | PVC | Size: | 295*480 Or According To Customer's Request |
|---|---|---|---|
| Printing: | RFID Inlay Core Sheet | Application: | For RFID Card Production |
| Frequency: | 1k,125kb For LF Inlay,13.56Mhz For HF Inlay | Thickness: | 0.45mm For IC Inlay,0.55mm For ID Inlay |
| Chip Type: | Fudan F08chip/F8001 IC Chip For IC Inlay,4168 For ID Inlay | Surface: | Trimming And Position Border |
| High Light: | 295x480mm pvc card material,rfid production pvc card material |
||
Product Description
IC Fudan F08 inlay,ID TK411 inlay,PVC RFID Inlay/Prelam sheets for RFID cards production
1. IC Fudan F08 inlay,ID TK411 inlay,PVC RFID Inlay/Prelam sheets for RFID cards production- Introduction
Our popular products- high-quality RFID Inlay sheets (also called as RFID pre-laminated sheet or RFID prelam sheets) for RFID cards production purpose.

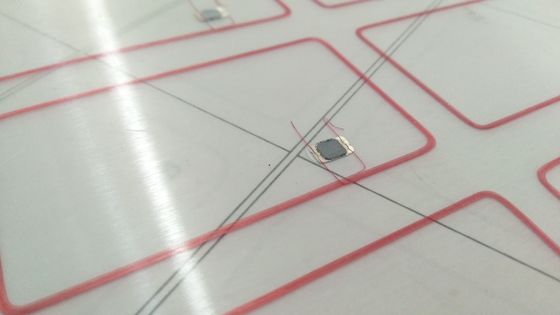

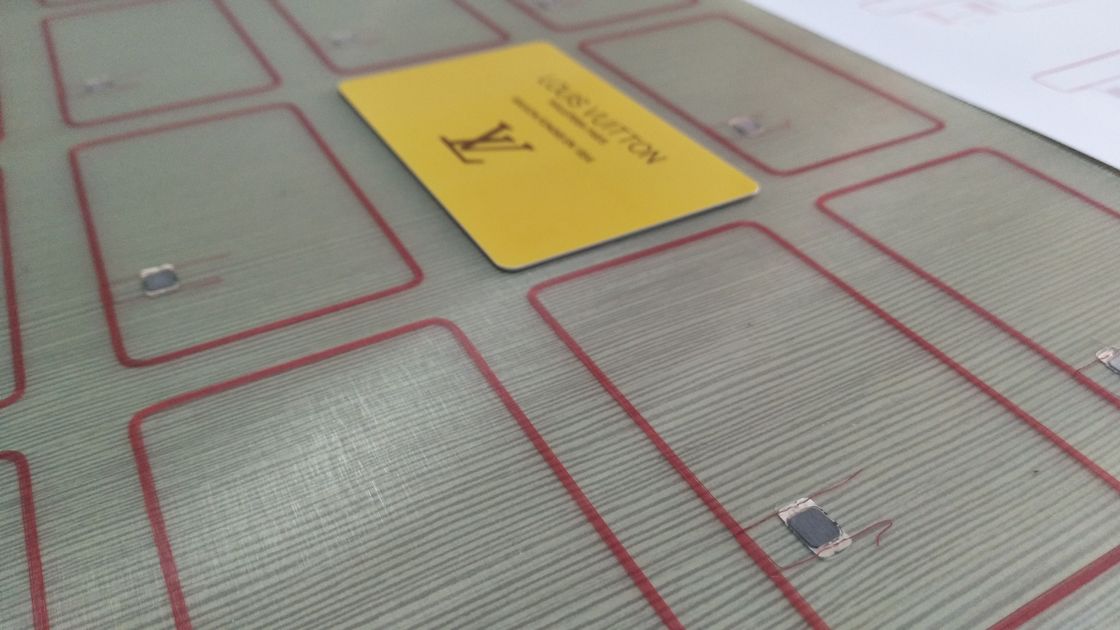

RFID Card Inlay/Prelam sheet is the basic sheet for the production of RFID Cards. It is laminated with printing sheets and coated overlay inside the card laminator to make the RFID card thick sheets which will be punched to be RFID Card. It is made of PVC sheets, antenna and RFID chips inside.
RFID Card Inlay/Prelam sheet by MKarte Materials has the best quality control and the most competitive cost.
2. IC Fudan F08 inlay,ID TK411 inlay,PVC RFID Inlay/Prelam sheets for RFID cards production-Technical paramater
We can supply you the real quality RFID card INLAY/PRELAM sheets with competitive factory prices.
Product key features:
Sheet Layout: 2X5, 3X7, 3X8, 5X5, 4X8 or customized
Material: PVC
Sheet thickness: 0.45-0.5mm or customized.
Chip types:
125 KHz LF chips:
ID4168/TK4100/TSS77/compatible chip1/compatible chip2/compatible chip S256/compatible chip 2048/relevant more
13.56MHz HF chips:
Fudan FM11RF08/ Feiji-F8001/ISSI4439/Fudan-FM11RF32/S50/S70/Ultralight/F1108 TK4168/Natag…
Antenna: copper wire
3. IC Fudan F08 inlay,ID TK411 inlay,PVC RFID Inlay/Prelam sheets for RFID cards production-Usage
4. IC Fudan F08 inlay,ID TK411 inlay,PVC RFID Inlay/Prelam sheets for RFID cards production-Packaging
Packaged in export carton,plied on the plywood pallet
