Rpvc coated overlay 0.06mm HICO/LOCO Strips card film Magnetic Stripe For Loyalty Cards
Product Details:
| Place of Origin: | China |
| Brand Name: | MKarte |
| Model Number: | MCO-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000-30000 Sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By standard export carton and packed in strong plywood pallet with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 10- 25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 50 tons per Month |
|
Detail Information |
|||
| Thickness Of Overlay: | 40-100 Micron | Size: | Sheet Size Or Roll Size |
|---|---|---|---|
| Strip Model: | HI_CO 2750OE, LO_CO 360OE | Brand Of Magnetic Stripe: | LUCKY |
| Package Method:: | 100/200 Sheets Per Bag Or As Per Customer Requirements. | Storage Condition: | Sealed, Moisture-proof, Room Temperature Under 40℃, Keep It Horizontally, Avoid Heavy Pressing And Direct Sunlight. |
Product Description
Rpvc coated overlay 0.06mm HICO/LOCO Strips card film Magnetic Stripe For Loyalty Cards
Production Specification
| 1.Rpvc coated overlay 0.06mm HICO/LOCO Strips card film Magnetic Stripe For Loyalty Cards- Introduction |
Rpvc coated overlay 0.06mm HICO/LOCO Strips card film Magnetic Stripe For Loyalty Cards is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by LUCKY China. It can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.
| 2. Rpvc coated overlay 0.06mm HICO/LOCO Strips card film Magnetic Stripe For Loyalty Cards - Specification |
Specifications:
| Product name | A4 Size Black Magnetic Stripes Coated Overlay Sheet For Plastic Card Lamination |

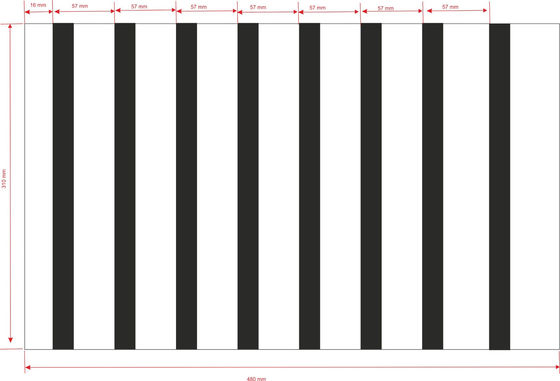

| Common size | A4, 310x480mm (A3, customized ) |
| Thickness | 0.04mm -1.0 mm |
| Appearance | transparent |
| Coated | glue on back |
| Laminating temperature | 110-150℃ |
| Storage | -10~35℃, sealed, moisture-proof |
| Shelf life | 2 years |
| Packing method | 100pcs/bag, 4000pcs/carton |
Product Tag:
Magstrip overlayCard magnetic strip overlaymagnetic strip overlay coatedPVC card OverlayPVC card coated overlayBank CardRecycled Magnetic Card OverlayRPVC Coated OverlayOverlay with HICO/LOCO StripsRecycled Magnetic Card0.06mm Hico magnetic OverlayHICO/LOCO Strips cardRPVC Magstrip overlayMagnetic striped overlayHiCo 2750 Oe Magnetic CardLOCO magnetic Overlay| 3. Rpvc coated overlay 0.06mm HICO/LOCO Strips card film Magnetic Stripe For Loyalty Cards - Product Parameter |
The technical Parameters:
| Model number | MCO-MS |
| Thickness | 0.04 mm,0.05mm,0.06mm ,0.08mm ,0.10mm |
| Common Size | Sheet size or Roll size, any size as your requirement |
| Color | Clear (Transparent) |
| Glue Coated | Yes |
| Application | Magnetic strip Card Making |
| Type | Heat press |
| Advae | Waterproof, Moistureproof, Customized layout |
| Packaging method |
By standard export carton and packed in strong plywood pallet with proper soft protection material inside, suitable for long distance for sea or air transport |
| 4. Rpvc coated overlay 0.06mm HICO/LOCO Strips card film Magnetic Stripe For Loyalty Cards - Application |
In manufacturing process, Magnetic Stripe PVC Film can be directly laminated with PVC printing sheet, simplify the fabrication process to save time.
Steps to make cards:
1).Put printing core and two overlays together, then put into the laminator.
(The laminating temperature and time is determined as per the instruction of the machine). Please be noticed that all glue sides of both PVC sheets and overlays are put inward.
2).Lamination lasts 10-15 minutes (6-8Mpa 125-140℃).
3).Cutting.
