NAS630 JAPAN Materials Mass-Lam and Pin-Lam Copper Clad Laminate CCL Lamination Steel Plate MKSP-CCL-400
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MKSP-CCL-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | export package |
| Delivery Time: | 15days after getting the prepayment |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
|
Detail Information |
|||
| Steel Material:: | NAS630 JAPAN | Conventional Thickness (mm): | 1.5, 1.6, 1.8, 2.0mm |
|---|---|---|---|
| Service Life: | 8-10 Years (Note: After Repeated Usage, The Steel Plate Will Become Thinner. It Is Not Recommended To Continue Using After The Thickness Is Less Than 1.3mm/the Steel Plate Thickness Between 1.3-1.6mm Should Ensure No Deformation Or Warping, And The Hardnes | Conventional Size Of CCL Lamination Steel Plate (L * W In Mm):: | 2220 * 1270/2210 * 1270/1910 * 1270/1500*1295/1300*800 /1295*787/1295*1613/1295*1143/1295*787 |
| Hardness HRC: | 50HRC±2 | Average Thermal Expansion Coefficient (10-6/℃): | 10~12 |
| Highlight: | Mass-Lam copper clad laminate,Pin-Lam laminated steel plate,MKSP-CCL-400 steel plate |
||
Product Description

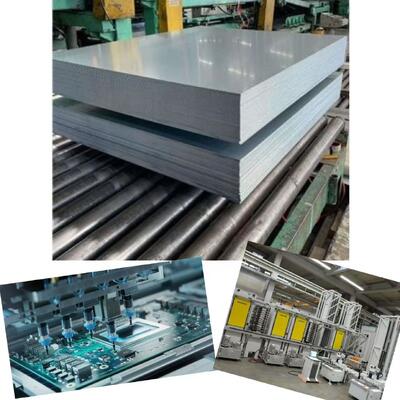

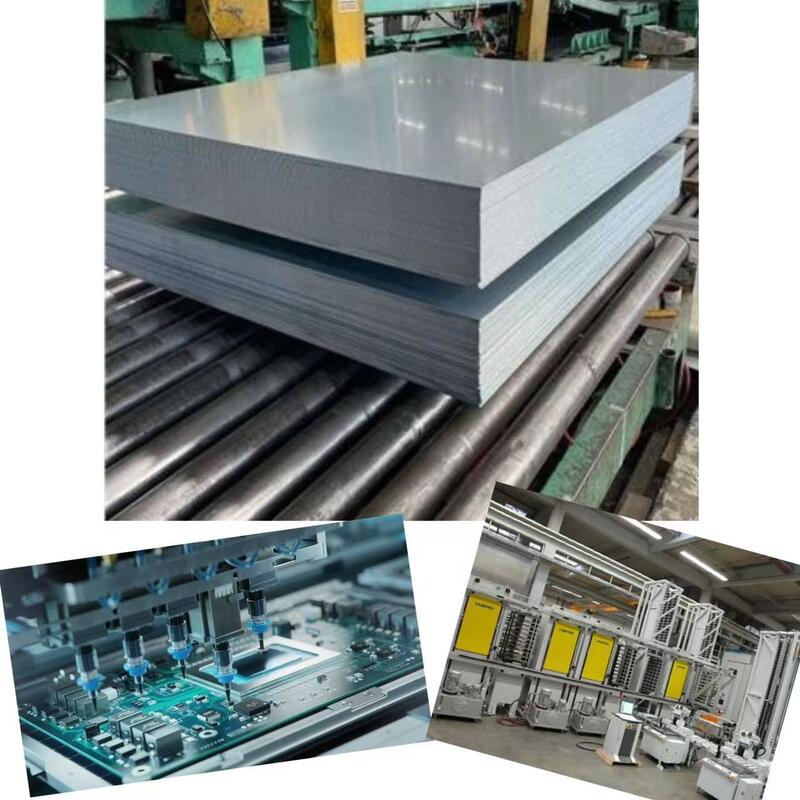

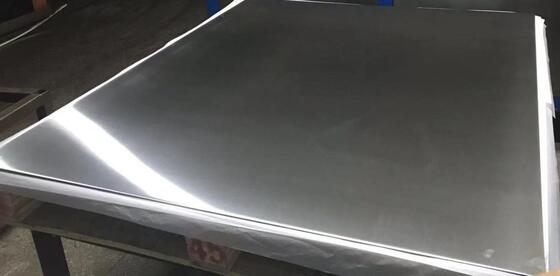

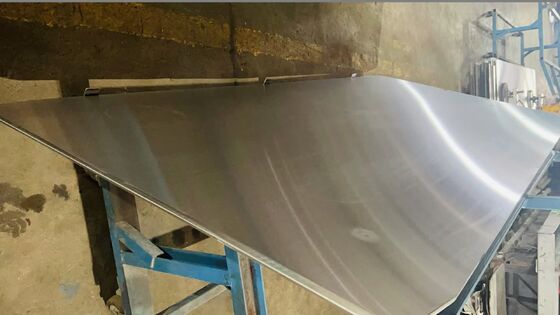

NAS630 JAPAN Materials Copper Clad Laminate Lamination Steel Plate
The MKSP-CCL-400 is a mature and reliable high-precision lamination steel plate specifically designed for copper clad laminate (CCL) lamination processes. Manufactured using premium Japanese steel materials, this product delivers exceptional performance for demanding CCL production requirements.
Product Features
- Premium Japanese steel materials (NAS630 & NAS301) with advanced heat treatment
- Minimal high-temperature warpage with extended service life (8-10 years)
- Superior thermal conductivity and optimized thermal expansion coefficient
- High corrosion resistance and hardness (50HRC±2)
- Compatible with various lamination steel plate washing machines
- Advanced grinding manufacturing process ensures reliable lamination performance
Performance Specifications
| Parameter | Mass-Lam Plate | Pin-Lam Plate |
|---|---|---|
| Thickness | 1.0-2.5mm | 1.0-2.5mm |
| Width | ≤1300mm | ≤1300mm |
| Length | ≤2410mm | ≤2410mm |
| Thickness Tolerance | ±0.05mm | ±0.05mm |
| Surface Roughness | Ra≤0.15μm Rz≤1.5μm | Ra≤0.15μm Rz≤1.5μm |
| Warpage Degree | ≤3mm/M | ≤3mm/M |
| Yield Strength | ≥1175 N/mm² | ≥1175 N/mm² |
| Tensile Strength | ≥1400 N/mm² | ≥1400 N/mm² |
| Hardness | 50HRC±2 | 50HRC±2 |
| Work Temperature | ≤400℃ | ≤400℃ |
| Thermal Conductivity | ≥25W/MK at 300℃ | ≥25W/MK at 300℃ |
Technical Specifications
Steel Material: Japanese metallurgical NAS630 and NAS301 (NAS630 preferred)
Conventional Thickness: 1.5mm, 1.6mm, 1.8mm, 2.0mm
Service Life: 8-10 years
Minimum Usage Thickness: Not recommended below 1.3mm
Conventional Thickness: 1.5mm, 1.6mm, 1.8mm, 2.0mm
Service Life: 8-10 years
Minimum Usage Thickness: Not recommended below 1.3mm
Note: After repeated usage, the steel plate will become thinner. Continue usage only if thickness remains between 1.3-1.6mm with no deformation or warping, and hardness meets standards.
Standard Sizes
2220×1270mm, 2210×1270mm, 1910×1270mm, 1500×1295mm, 1300×800mm, 1295×787mm, 1295×1613mm, 1295×1143mm
Applications
Specifically designed for copper clad laminate (CCL) lamination processes in printed circuit board manufacturing. CCL is a plate-shaped material made by immersing electronic fiberglass cloth or other reinforcing materials in resin, covering with copper foil, and hot pressing. Our lamination steel plates are compatible with various CCL laminators including BURKLE, LAUFFER, CEDAL, HELD, DATIAN, WEIDI, and DIPUER systems.
Also known as: CCL laminated steel plate, CCL pressed steel plate, CCL partition steel plate, CCL mirror steel plates, or CCL pressing steel plate.
