50HRC Hardness 1.0-2.0mm Thick Mass/Pin-Lam platePrinted Circuit Board PCB/CCL Press Plate MKSP-D420
Product Details:
| Brand Name: | MK |
| Model Number: | MKSP-D420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | export package |
| Delivery Time: | 15days after getting the prepayment |
| Payment Terms: | Western Union,T/T,D/P,D/A,L/C |
|
Detail Information |
|||
| Steel Material: | Dura420 | Normal Thickness (mm):: | 1.0, 1.2, 1.5, 1.6, 1.8, 2.0mm |
|---|---|---|---|
| Surface Roughness (um): | Ra≤0.15 Rz≤1.5 | Normal Sizes Of Copper Clad Laminate CCL Lamination Steel Plate/press Plate (L * W In Mm):: | 1910*1270/2210*1270/2220*1270. |
| Normal Sizes Of PCB Lamination Steel Plate/press Plate (L*W In Mm):: | 1500*1295/1300*800/1295*787/1295*1613/1295*1143/1295*787/1285*750/1280*1120/1280*1070/1280*970/1270*1118/1270*1070/1143*660/673*571/660*508/24"*28". | Service Life: | 5-8 Years (Note: After Repeated Usage, The Steel Plate Will Become Thinner. It Is Advised Not To Continue Using It After The Plate Thickness Is Lowered To Less Than 1.3mm/the Steel Plate Thickness Between 1.3-1.6mm Should Ensure No Deformation Or Warping.) |
| Highlight: | 50HRC hardness laminated steel plate,1.0-2.0mm thick PCB press plate,MKSP-D420 pin-lam plate |
||
Product Description

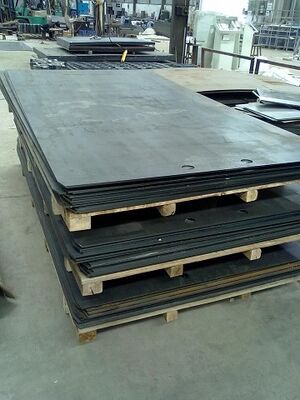

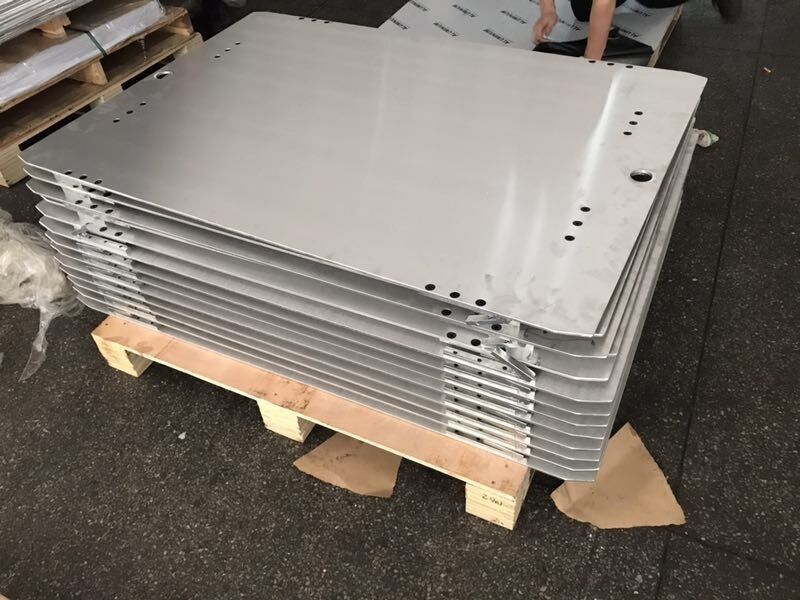

50HRC Hardness 1.0-2.0mm Thick Mass/Pin-Lam Plate Printed Circuit Board PCB/CCL Press Plate MKSP-D420
The MKSP-D420 PCB/CCL Press Plate utilizes German Dura420 steel material, engineered for reliable performance in PCB and copper clad laminate lamination processes. This high-precision lamination steel plate delivers exceptional durability and precision for demanding manufacturing applications.
Product Features
- Reliable lamination performance for PCB and CCL applications
- Minimal high-temperature warpage with extended service life
- Superior thermal conductivity and thermal expansion coefficient for energy efficiency
- High corrosion resistance and hardness rating
- Compatible with various lamination steel plate washing machines
Technical Specifications
- Steel Material: Dura420
- Available Thickness: 1.0, 1.2, 1.5, 1.6, 1.8, 2.0 mm
- Service Life: 5-8 years
- PCB Plate Sizes (L×W mm): 1500×1295, 1300×800, 1295×787, 1295×1613, 1295×1143, 1285×750, 1280×1120, 1280×1070, 1280×970, 1270×1118, 1270×1070, 1143×660, 673×571, 660×508, 24"×28"
- CCL Plate Sizes (L×W mm): 1910×1270, 2210×1270, 2220×1270
Usage Note: After repeated usage, the steel plate will become thinner. It is advised not to continue using it after the plate thickness is lowered to less than 1.3mm. For plates between 1.3-1.6mm thickness, ensure no deformation or warping occurs.
Performance Parameters
| Parameter | Mass-Lam Plate | Pin-Lam Plate |
|---|---|---|
| Thickness | 1.0-2.0mm | 1.0-2.0mm |
| Width | ≤1300 | ≤1300 |
| Length | ≤2410 | ≤2410 |
| Thickness Tolerance | ±0.10 | ±0.10 |
| Surface Roughness | Ra≤0.15 Rz≤1.5 | Ra≤0.15 Rz≤1.5 |
| Positioning Hole Tolerance | -- | ±0.10 |
| Bushing Slot Tolerance | -- | +0.10/-0mm |
| Warpage Degree | ≤3mm/M | ≤3mm/M |
| L/W Size Tolerance | ±1mm | ±1mm |
| Yield Strength | ≥1175 N/mm² | ≥1175 N/mm² |
| Tensile Strength | ≥1400 N/mm² | ≥1400 N/mm² |
| Extensibility | ≥5% | ≥5% |
| Hardness HRC | 50HRC±2 | 50HRC±2 |
| Work Temperature | ≤400℃ | ≤400℃ |
| Parallelism | ≤0.03 | ≤0.03 |
| Diagonal Deviation | 1-2mm | 1-2mm |
| Thermal Conductivity | ≥25W/MK at 300℃ | ≥25W/MK at 300℃ |
| Average Thermal Expansion Coefficient | 10~12 (10⁻⁶/℃) | 10~12 (10⁻⁶/℃) |
Applications

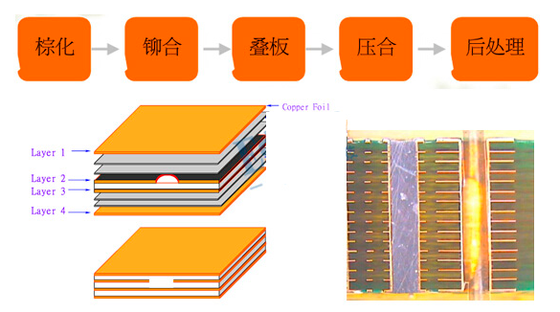

This PCB lamination steel plate is also known as PCB laminated steel plate, PCB pressed steel plate, PCB partition steel plate, PCB steel press plate, PCB mirror steel plates, or PCB pressing steel plate. It is specifically designed for high-precision lamination processes in printed circuit board and copper clad laminate manufacturing.
